Heavy Duty FullVUE® Mirror Vision System

The Brandmotion FullVUE® Mirror Vision System offers a live streaming full HD mirror and camera that reduces blindspots while driving by providing a clear, crisp view of exactly what you need to see behind you without obstructions of partitions, passengers, cargo, or small rear windows. It includes an integrated dash-cam and DVR recording for your protection and is equipped with night time and park-mode settings.
Home Shop Mirrors Heavy Duty FullVUE® Mirror Vision System

0

User feedback

Heavy Duty FullVUE® Mirror Vision System

The Brandmotion FullVUE® Mirror Vision System offers a live streaming full HD mirror and camera that reduces blindspots while driving by providing a clear, crisp view of exactly what you need to see behind you without obstructions of partitions, passengers, cargo, or small rear windows. It includes an integrated dash-cam and DVR recording for your protection and is equipped with night time and park-mode settings.

Part Number:

FVMR-1150

Category:

Categories: ,

MSRP

$509.95

Purchase Options

LEARN MORE AT

Includes Support by Crutchfield℠

  • Always On, Digital Observation
  • Full Touchscreen For Easy Adjustments
  • Advanced Anti-Glare Tempered Glass Screen
  • Retains Standard Mirror Functionality With One Touch
  • Automatic Brightness Adjustment
  • 2 Channel DVR Functionality
  • Built-In G-Shock Sensor For Automatic Event Recording

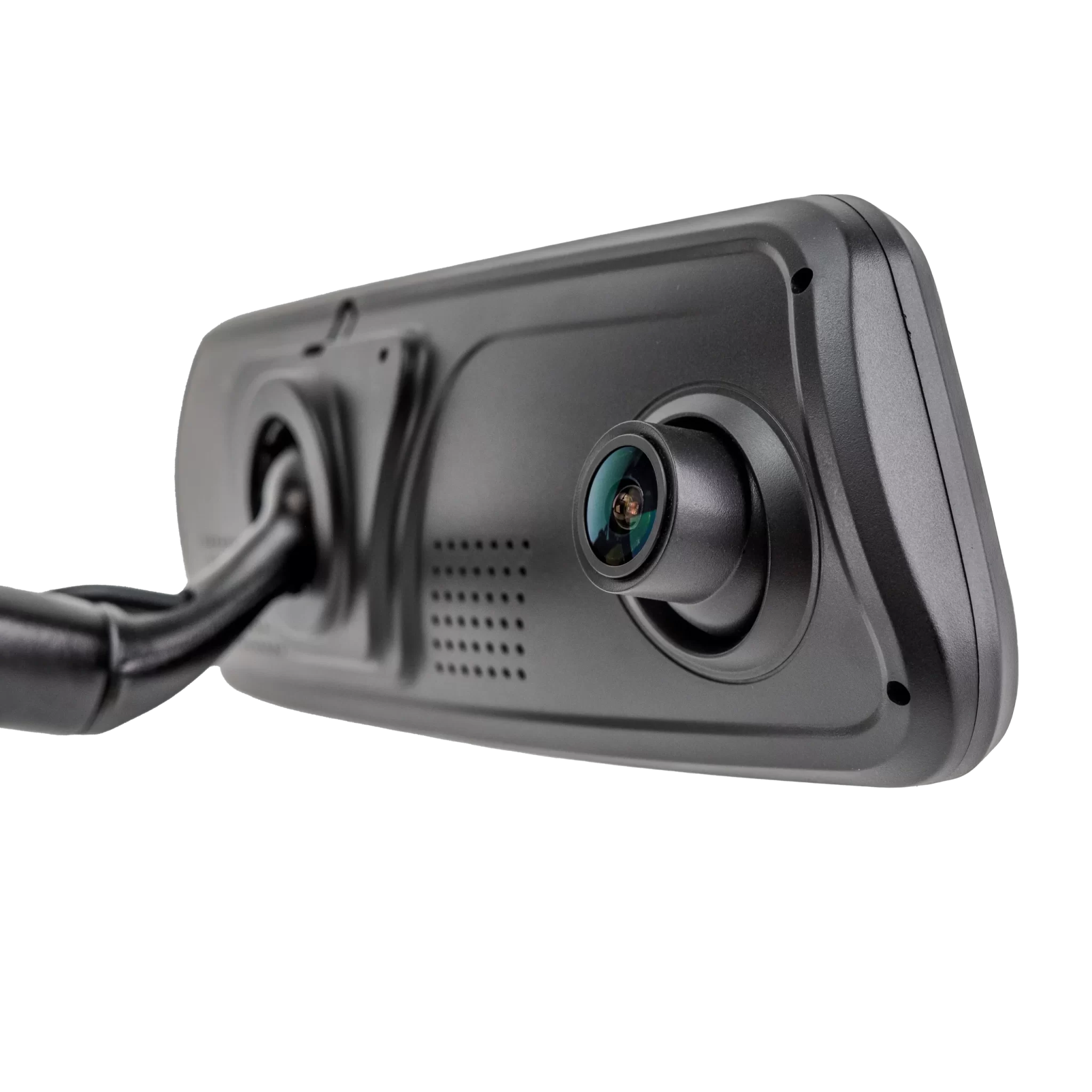

  • Built-In Front Facing Camera with DVR Recording
  • Includes 32 GB SD Card

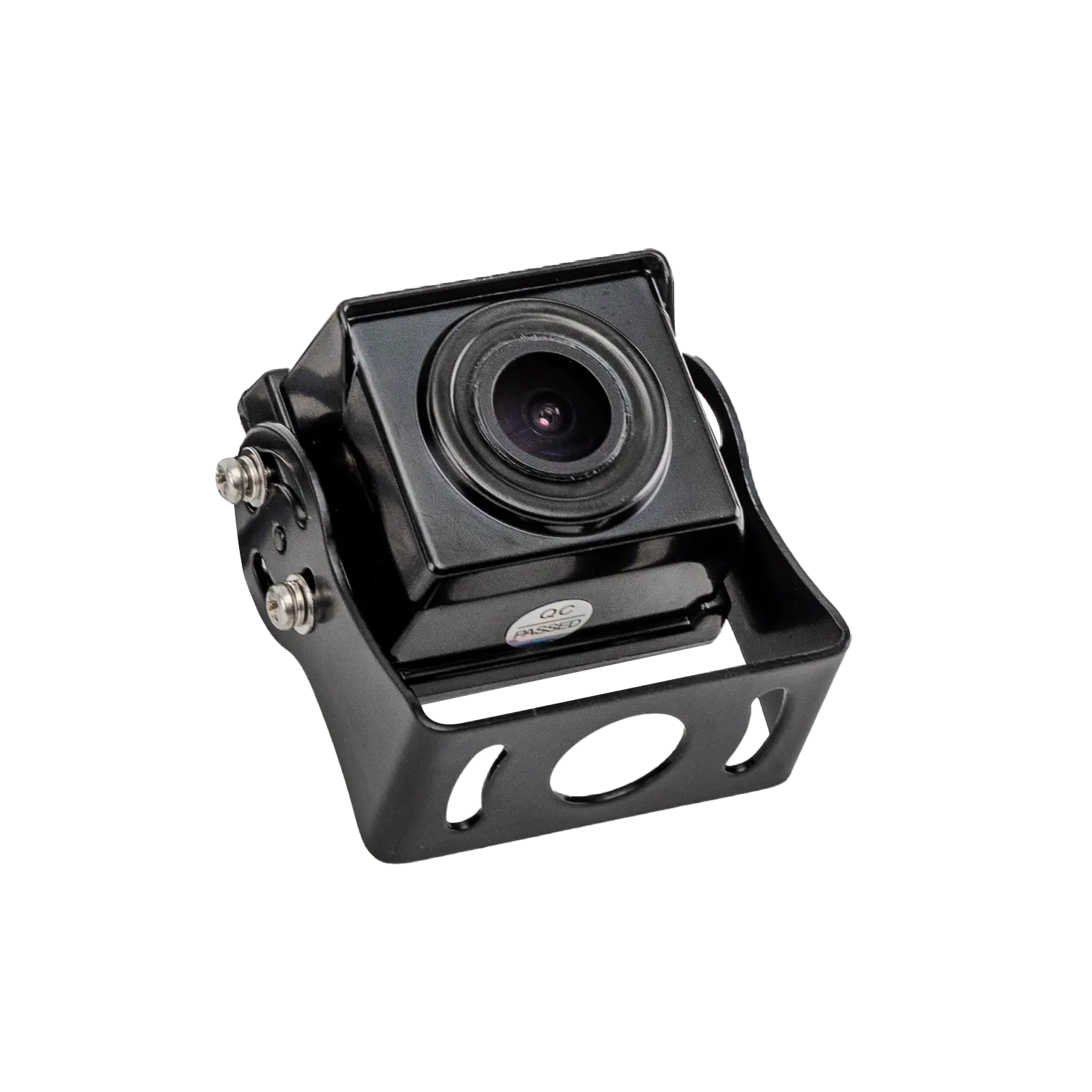

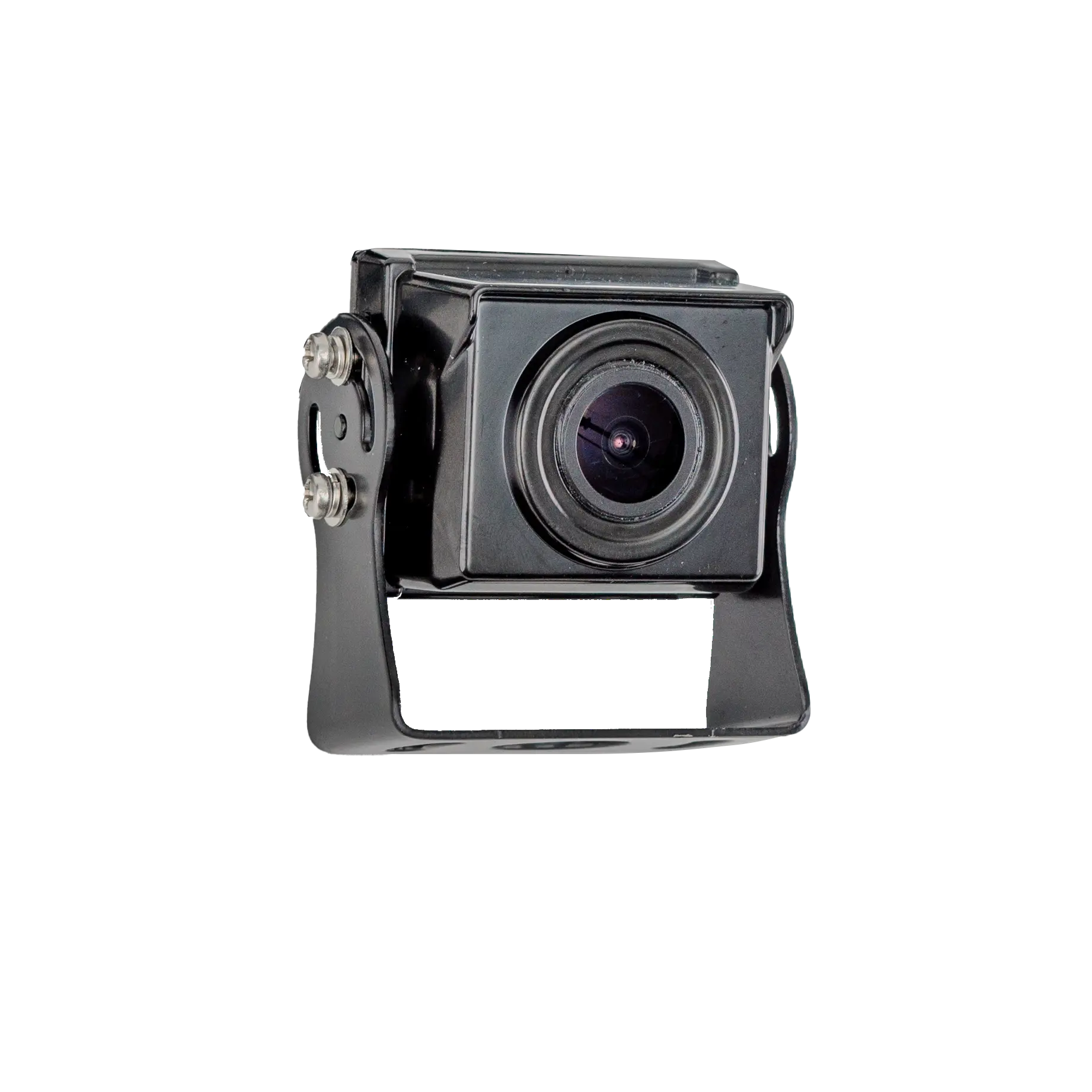

CAMERA

  • Working Voltage DC 5V
  • Rated Voltage / Current
  • Working Temperature -20°C to 70°C
  • Storage Temperature -30°C to 80°C
  • Connection Type Wired to mirror
  • Mounting Locations Rear
  • Mounting Type Mounting foot
  • Field of View (H) (V) 170° 140°
  • Low Light Night Vision 0.1Lux
  • Lens Size 16mm
  • Low illumination
  • Waterproof Rating IP68
  • Video Format Output TVI
  • Resolution 1920(H)×1080(V)

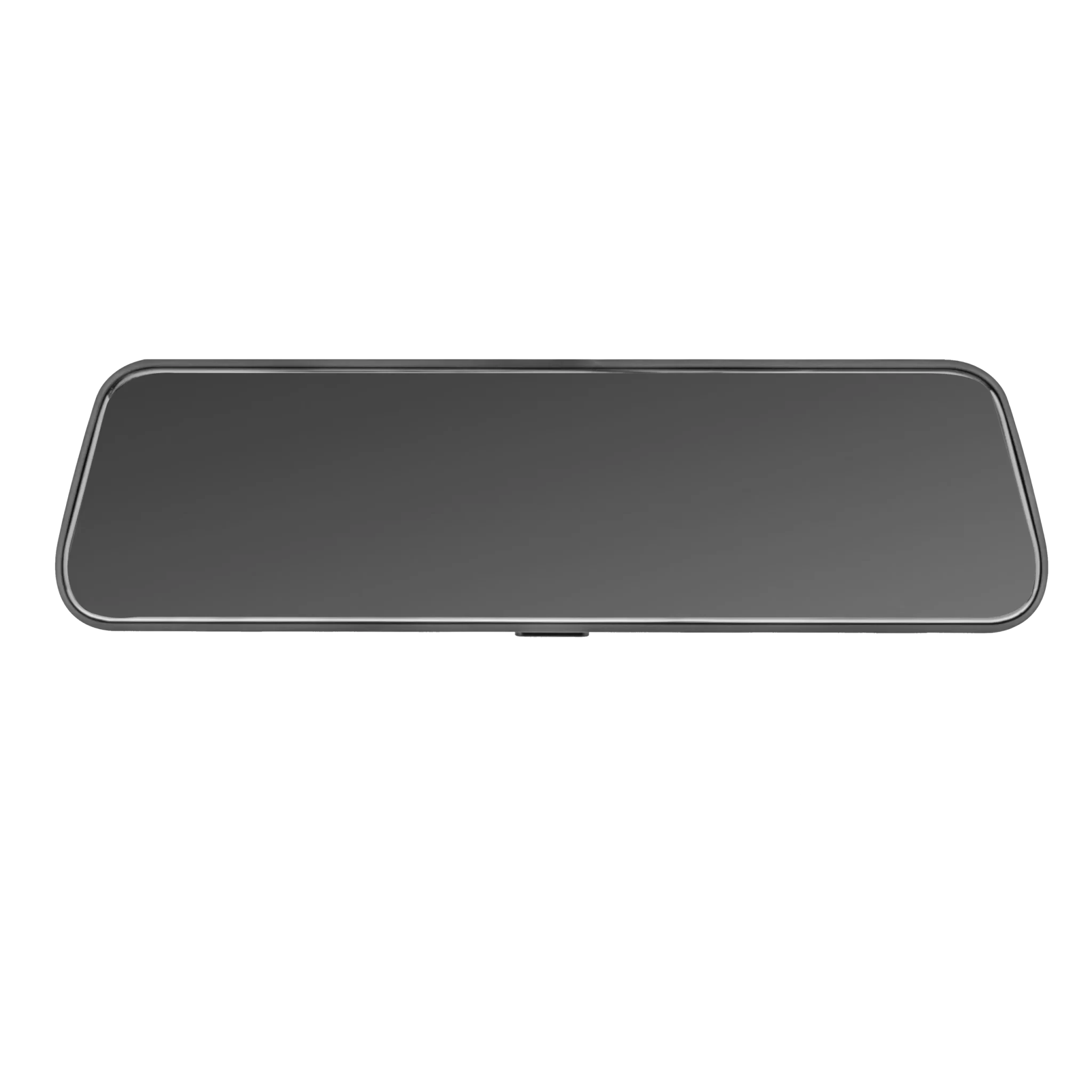

MIRROR

  • Working Voltage DC 12V/24V
  • Rated Voltage / Current
  • Power Consumption 5W
  • Working Temperature -20°C to 70°C
  • Storage Temperature -30°C to 80°C
  • Display Brightness 800cd/m2
  • Screen Size 9.66 inch
  • Resolution 320*1280
  • Camera Connection Type Wired
  • Video Format Input TVI
  • DVR Built-in Y/N Yes (to micro SD card)
  • Video trigger input triggers No
  • Second camera Yes
  • Resolution 1920 x 1080 Resolution 1080p  Front Camera

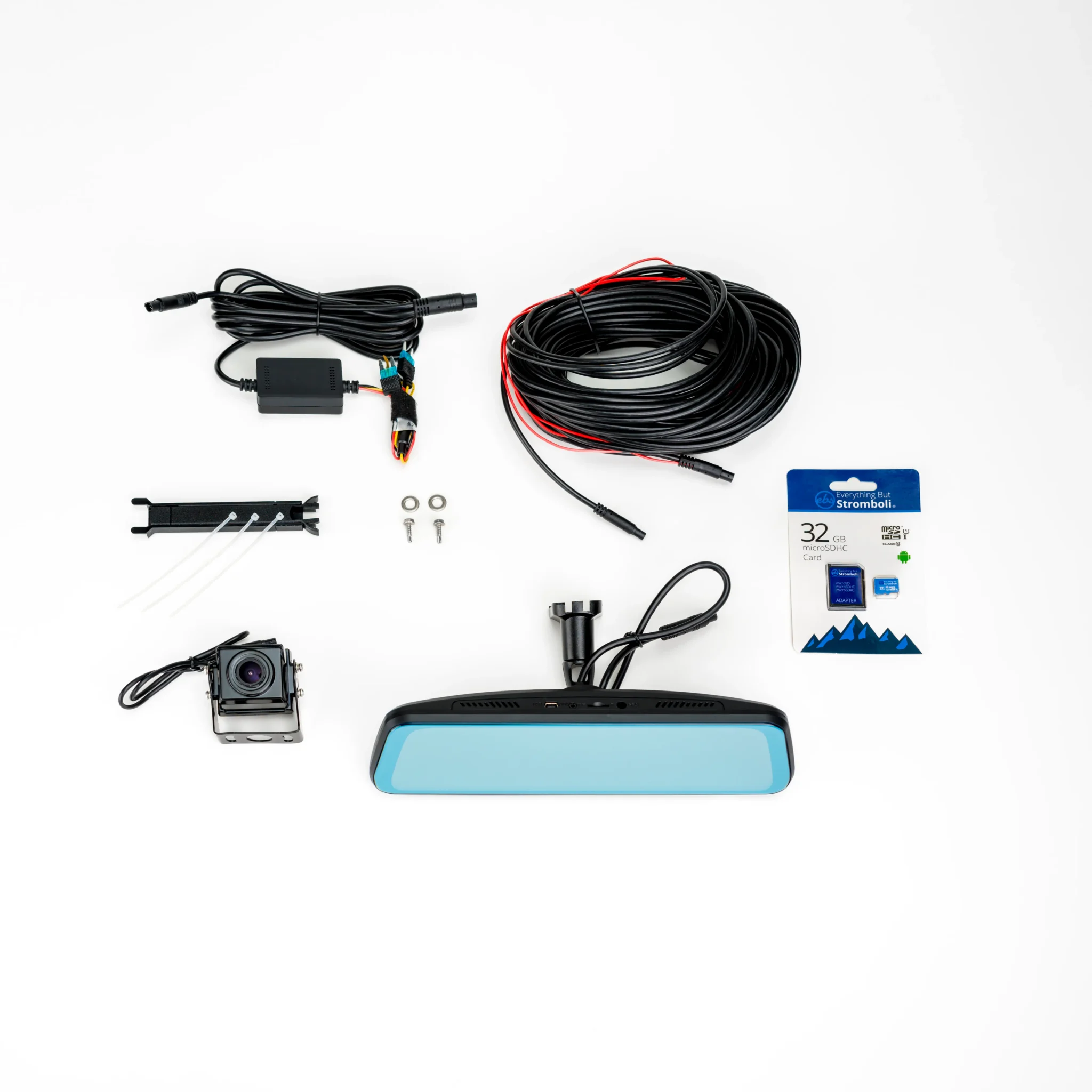

Harness

  • 40 foot plus 20 Foot Harness Lengths



  • Universal
