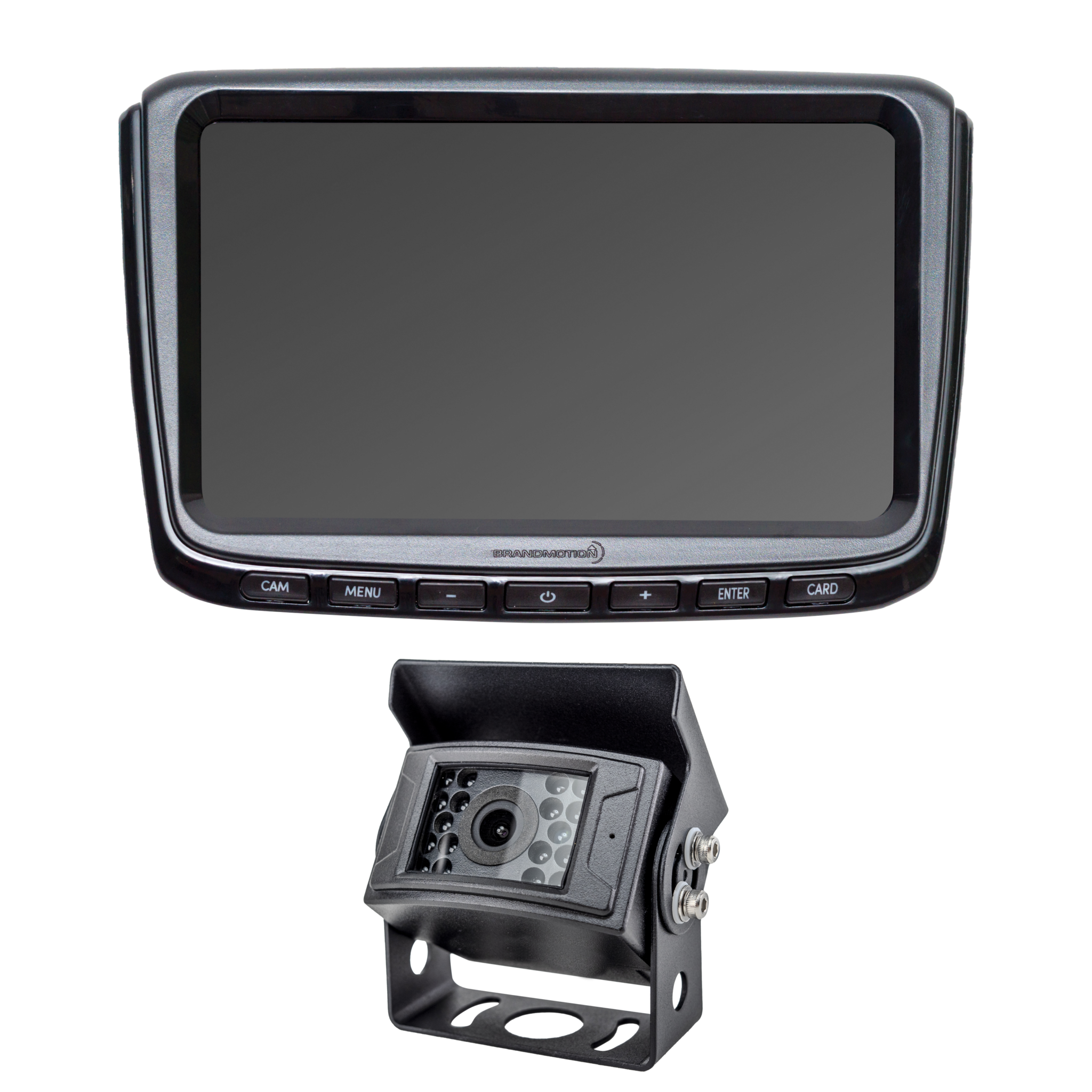

Commercial Grade High Definition Rear Vision System with 7″ HD Monitor

Brandmotion’s High Definition Rear Camera & Monitor provides higher quality and smoother video through standard composite video connections. This system is perfect for commercial fleets. It provides a crystal clear image on the 7″ digital monitor giving your drivers more comfort when backing up. Safeguard your fleet with this OEM grade camera that can attach anywhere and provides a 170° view.
Home Shop Monitors Commercial Grade High Definition Rear Vision System with 7″ HD Monitor

0

User feedback

Commercial Grade High Definition Rear Vision System with 7″ HD Monitor

Brandmotion’s High Definition Rear Camera & Monitor provides higher quality and smoother video through standard composite video connections. This system is perfect for commercial fleets. It provides a crystal clear image on the 7″ digital monitor giving your drivers more comfort when backing up. Safeguard your fleet with this OEM grade camera that can attach anywhere and provides a 170° view.

Part Number:

AHDS-7702

Category:

Categories: ,

MSRP

$305.95

Purchase Options

LEARN MORE AT

Includes Support by Crutchfield℠

  • 3 inputs with trigger wires
  • Always on, Observation
  • Heavy Duty For Increased Durability
  • IR Vision

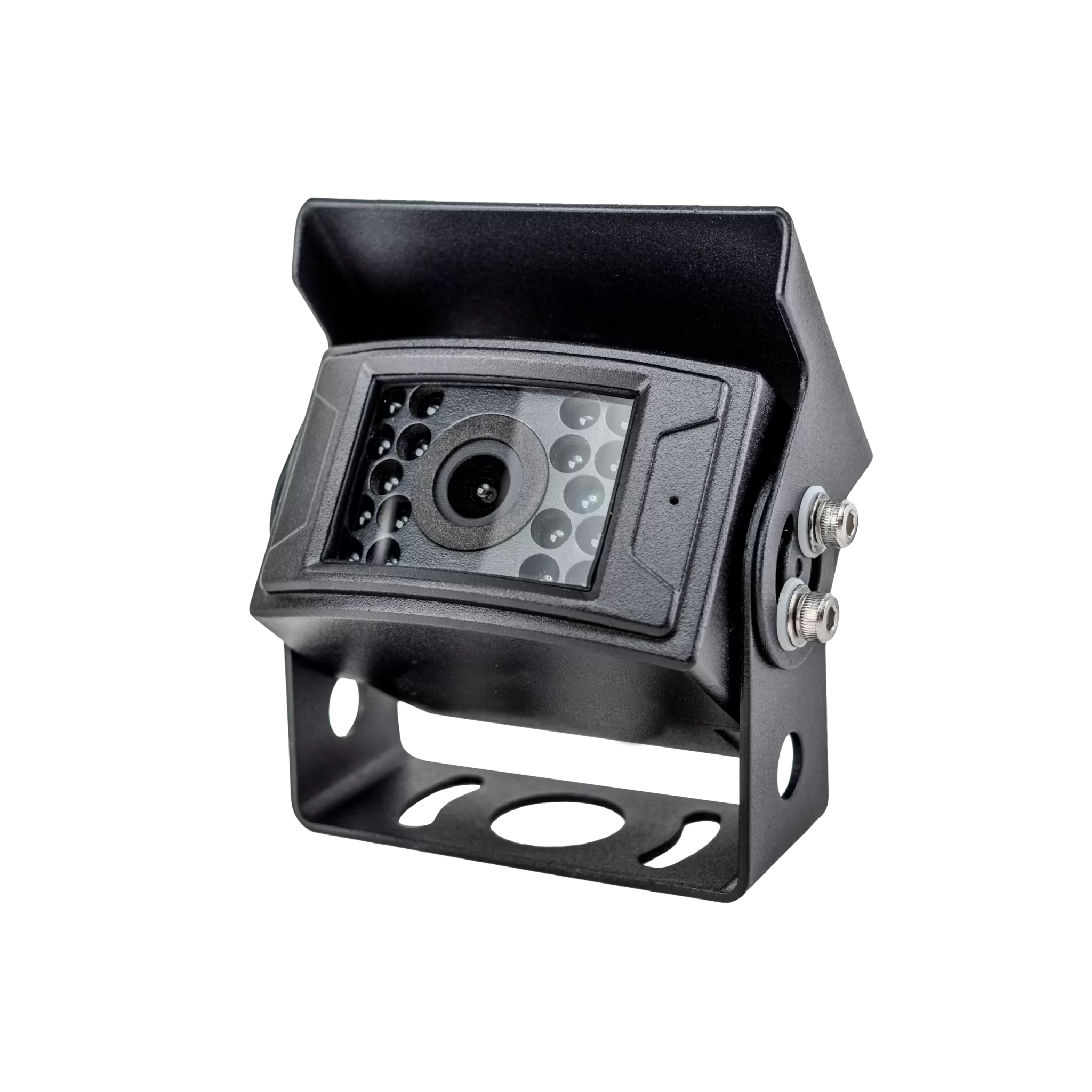

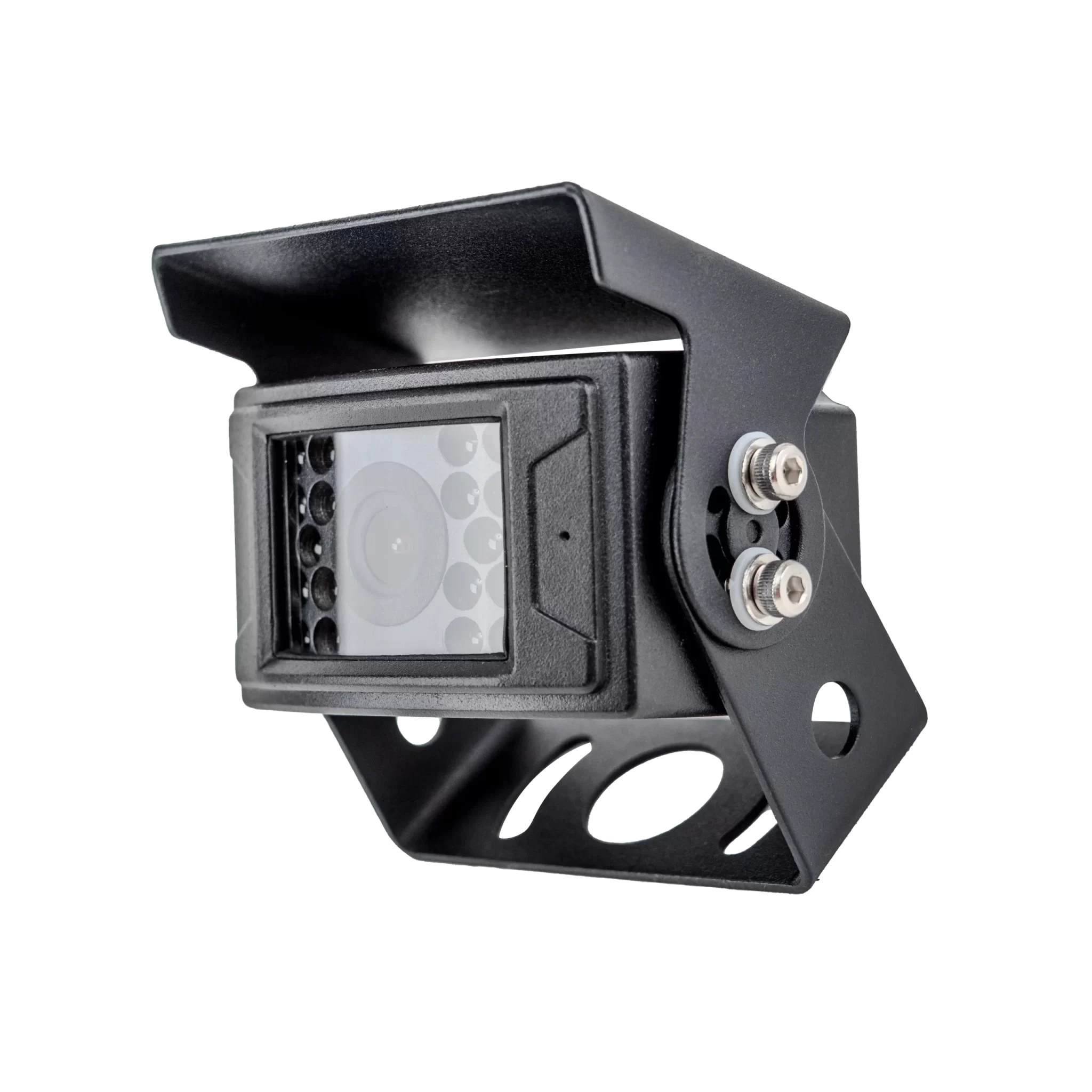

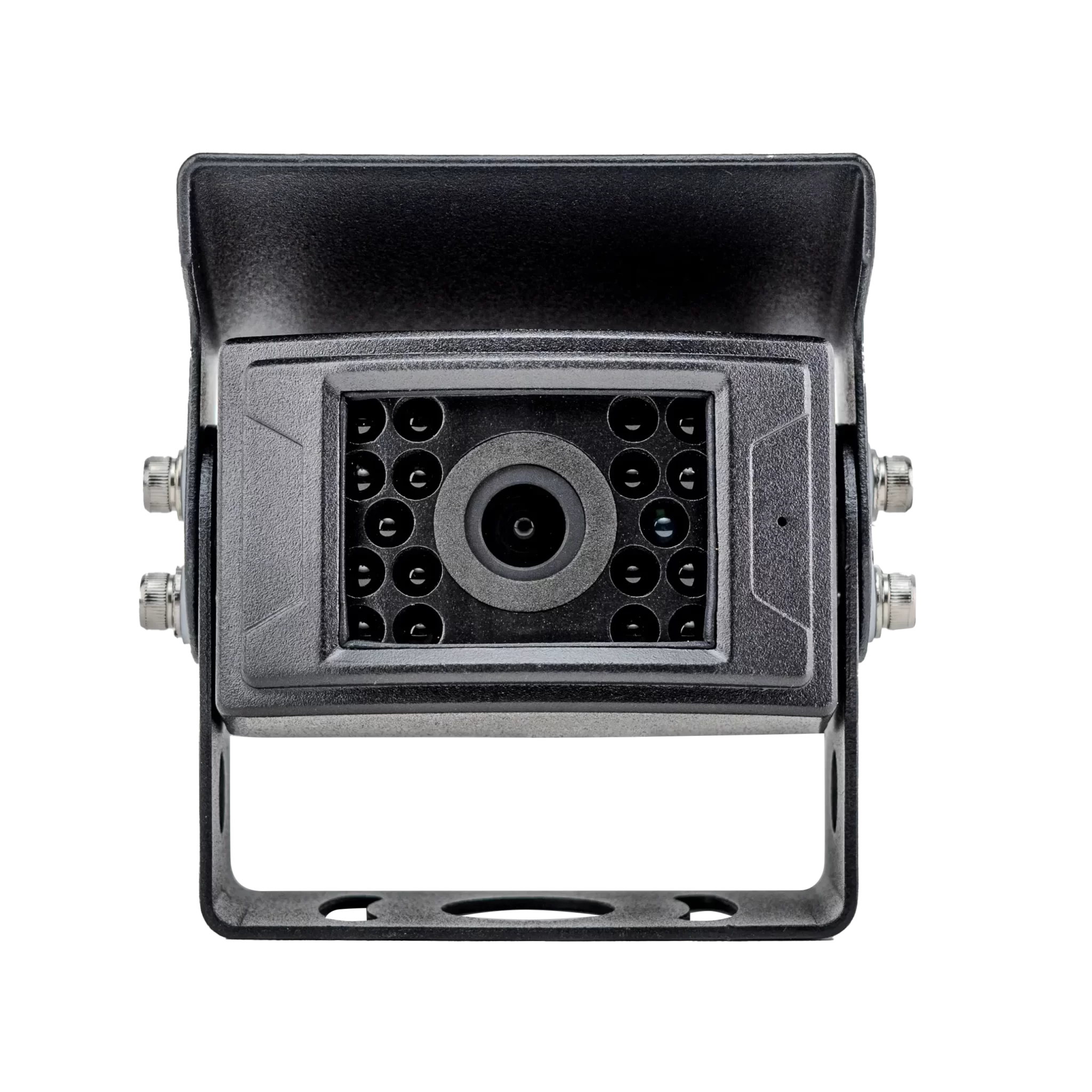

CAMERA

  • Working Voltage 10v – 16v
  • Rated Voltage / Current 130ma
  • Working Temperature -20℃ to 70℃
  • Storage Temperature -30℃〜85℃
  • Connection Type 4-Pin Aviator Wired
  • Mounting Locations Rear or front
  • Mounting Type U-Bracket
  • Field of View (H) (V) 170º
  • Low Light Night Vision 0.1 LUX
  • Lens Size 1/4 inch
  • Built in IRs Yes
  • Waterproof Rating IP68
  • Video Format Output AHD
  • Resolution 1080p

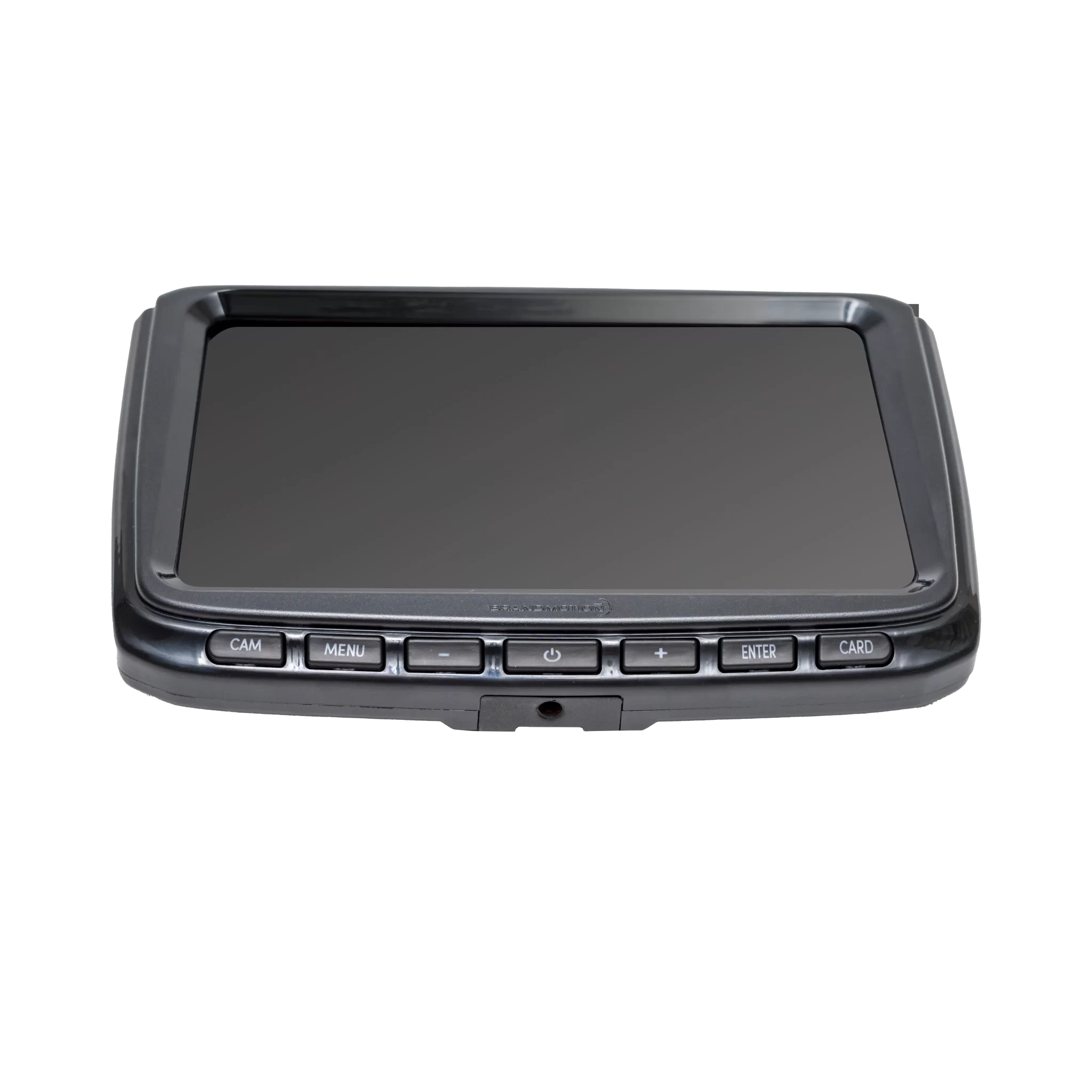

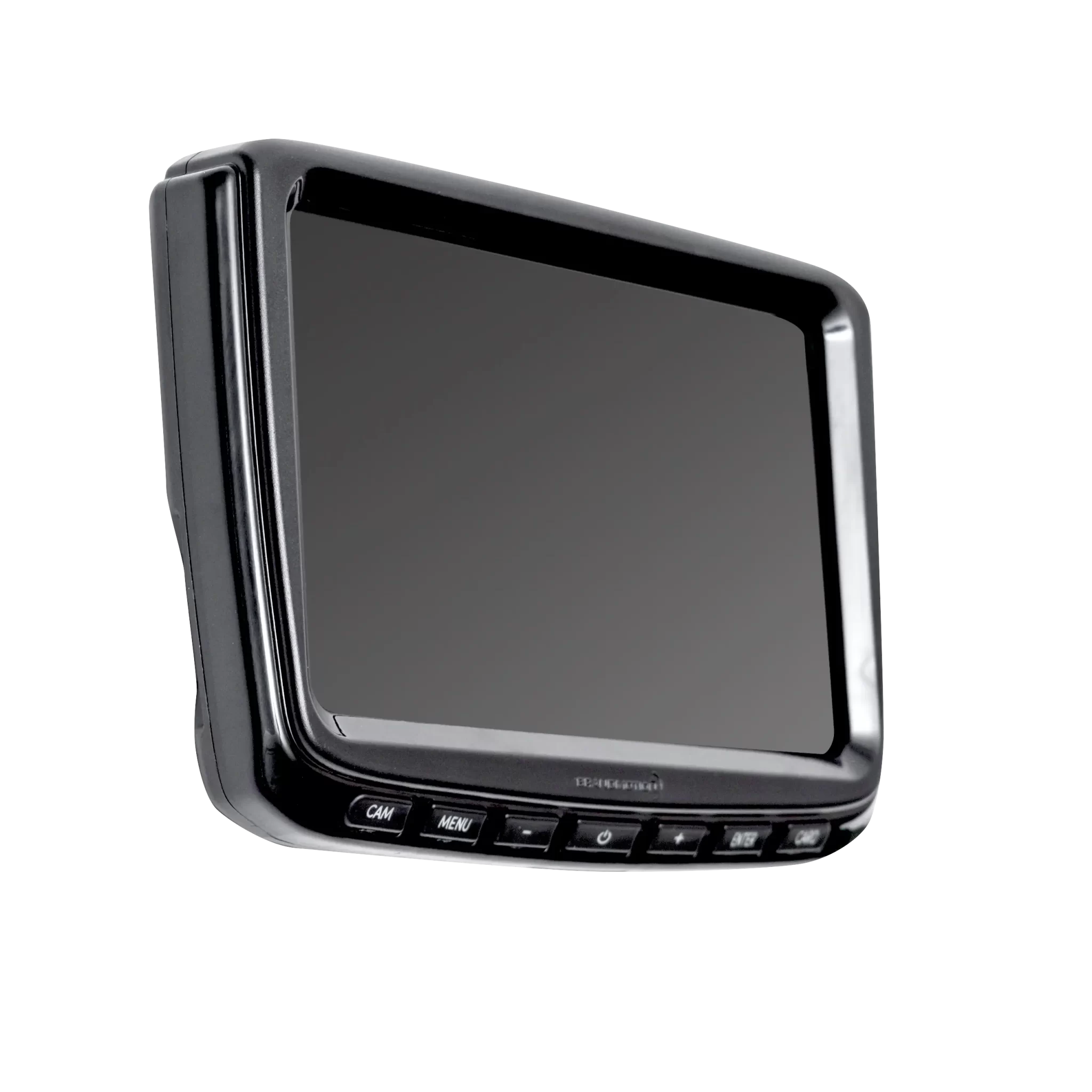

MONITOR

  • Working Voltage DC12V & DC24V
  • Rated Voltage / Current
  • Power Consumption 4W
  • Working Temperature -20℃-60℃
  • Storage Temperature -30℃-70℃
  • Display Brightness 500cd/m2
  • Screen Size 7 inch
  • Resolution 1024*600(IPS)
  • Aspect Ratio 16:9
  • Camera Connection Type Wired (Max 4 cameras)
  • Video Format Input AHD
  • DVR Built-in Y/N Yes
  • Built in speaker Yes
  • Video trigger input triggers Yes



  • Universal
