Heavy Duty Side Mount Vision System

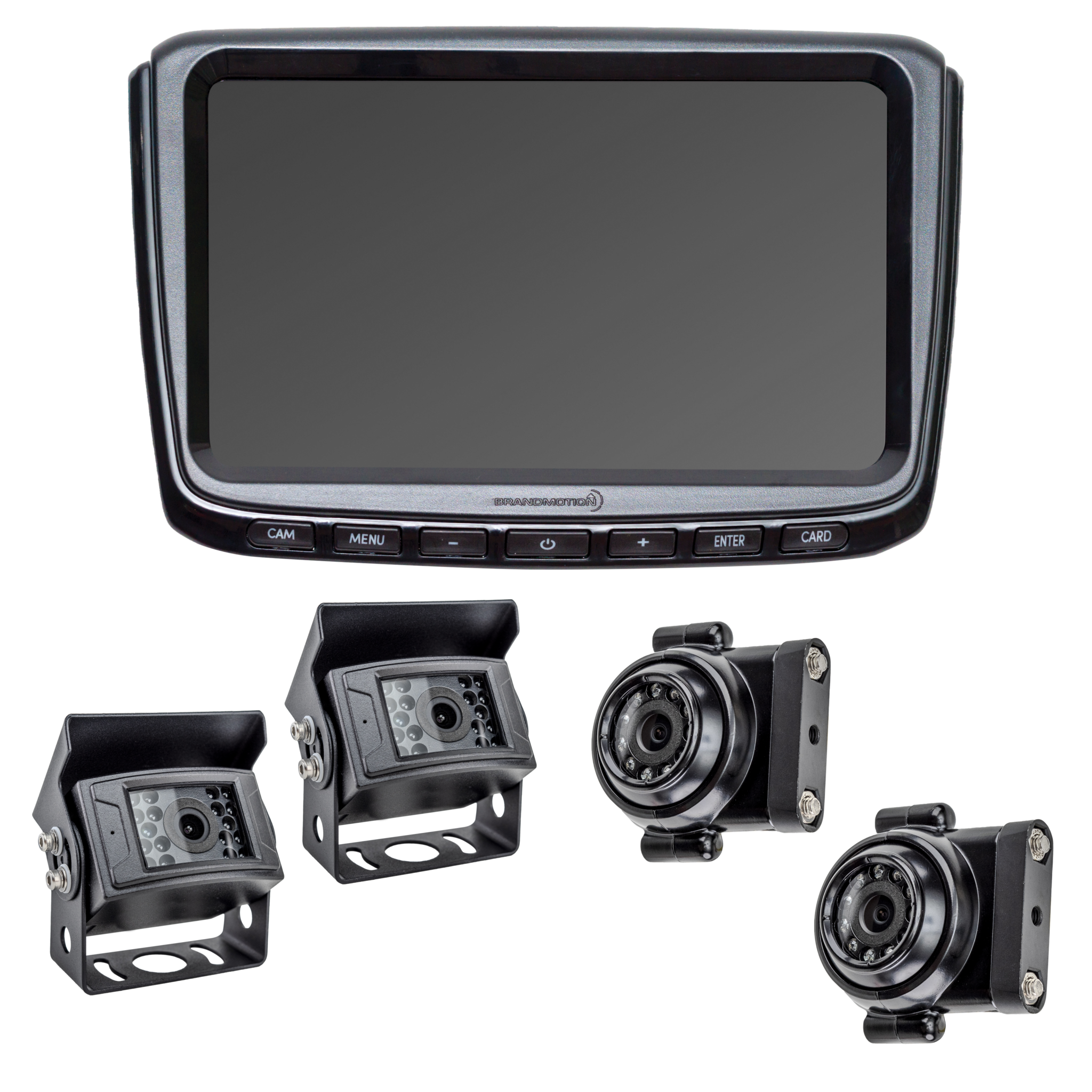

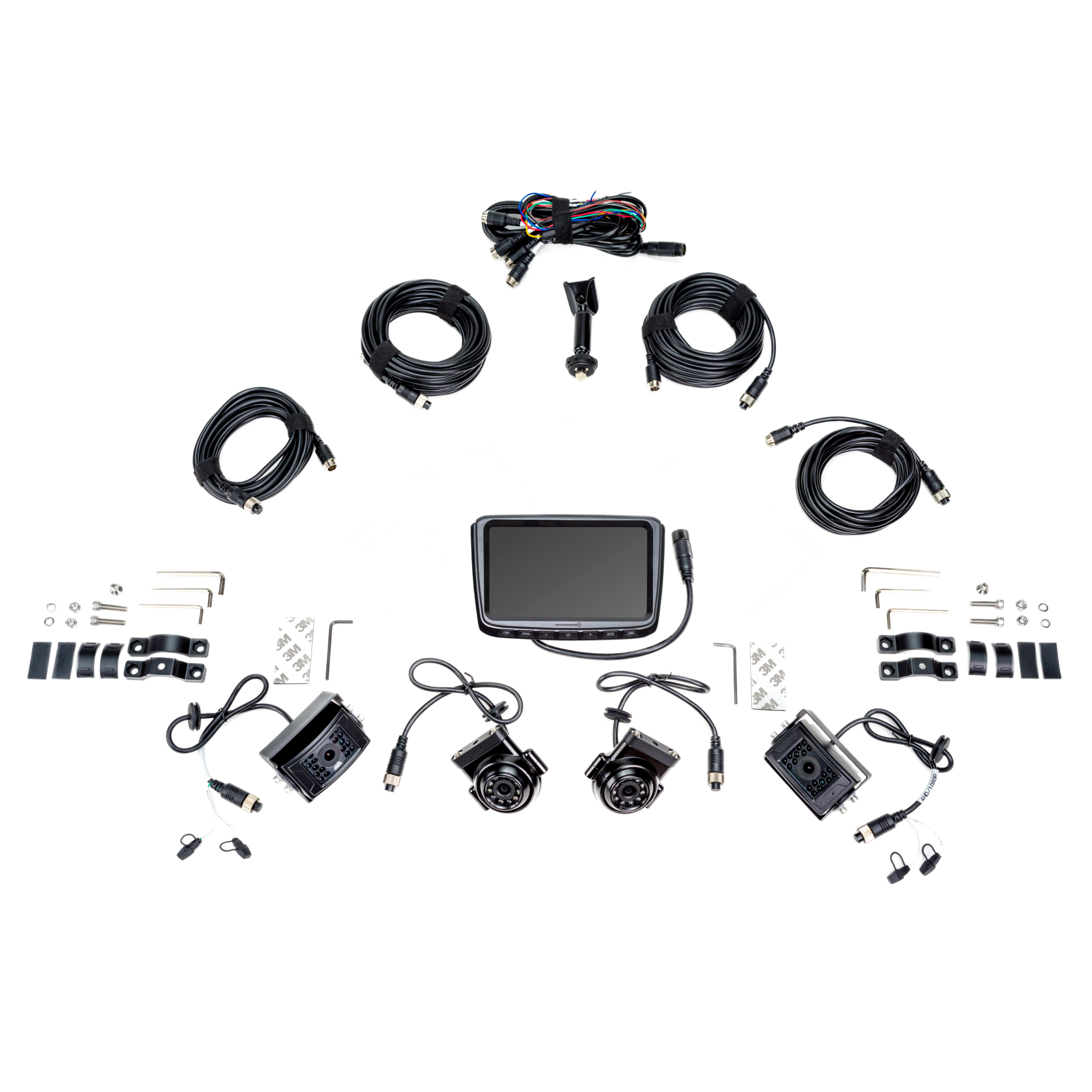

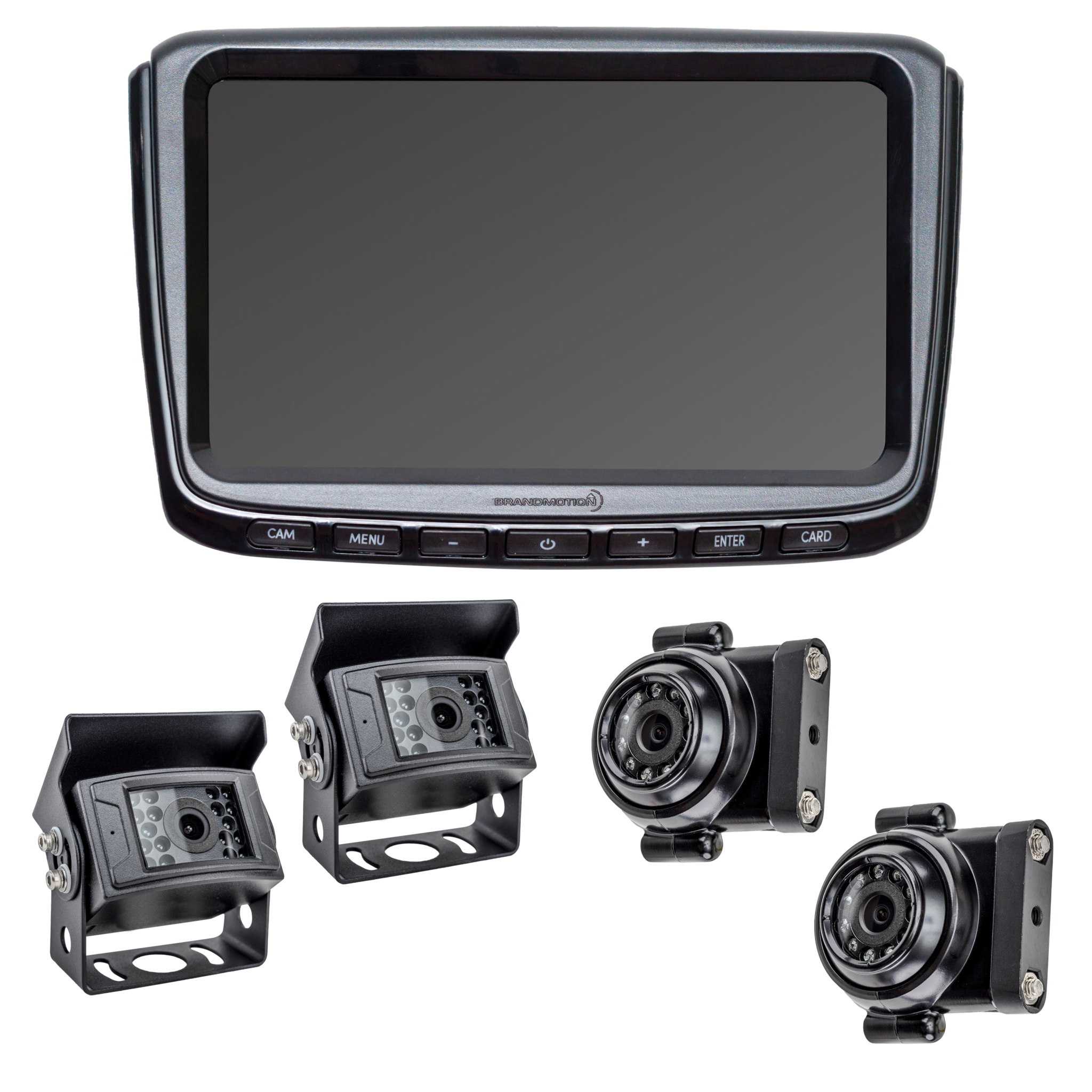

Brandmotion’s Commercial Side Mount Vision System provides drivers with the ultimate combination of functionality and visibility, significantly decreasing the risk of downtime and improving your fleet’s bottom line. With a HD 7” DVR monitor, the system pairs 4 total cameras: 2 side-mounted cameras with multiple mounting options for blindspot visibility, and 2 additional cameras for front, rear, or headache rack viewing. The system is designed for utility and service body applications, but can be installed on many other class 4-7 vehicles
Home Shop Monitors Heavy Duty Side Mount Vision System

0

User feedback

Heavy Duty Side Mount Vision System

Brandmotion’s Commercial Side Mount Vision System provides drivers with the ultimate combination of functionality and visibility, significantly decreasing the risk of downtime and improving your fleet’s bottom line. With a HD 7” DVR monitor, the system pairs 4 total cameras: 2 side-mounted cameras with multiple mounting options for blindspot visibility, and 2 additional cameras for front, rear, or headache rack viewing. The system is designed for utility and service body applications, but can be installed on many other class 4-7 vehicles

Part Number:

FLTW-7100

Category:

Categories: ,

MSRP

$1,399.95

Purchase Options

LEARN MORE AT

Includes Support by Crutchfield℠

  • 1080P High Definition Resolution
  • IP69 Waterproof Rating
  • DVR Recording optional (SD card not included)
  • IR Night Vision
  • 4 Cameras

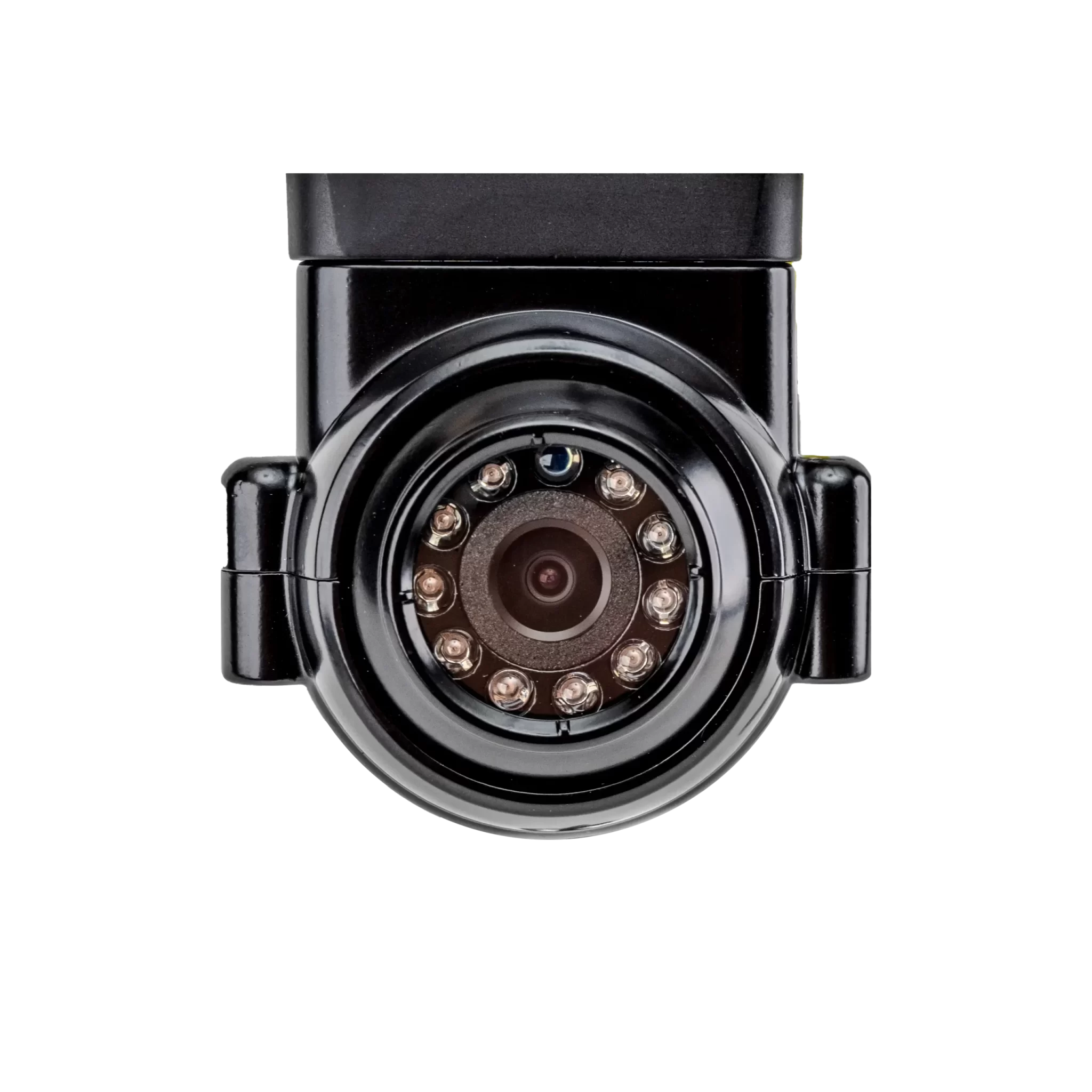

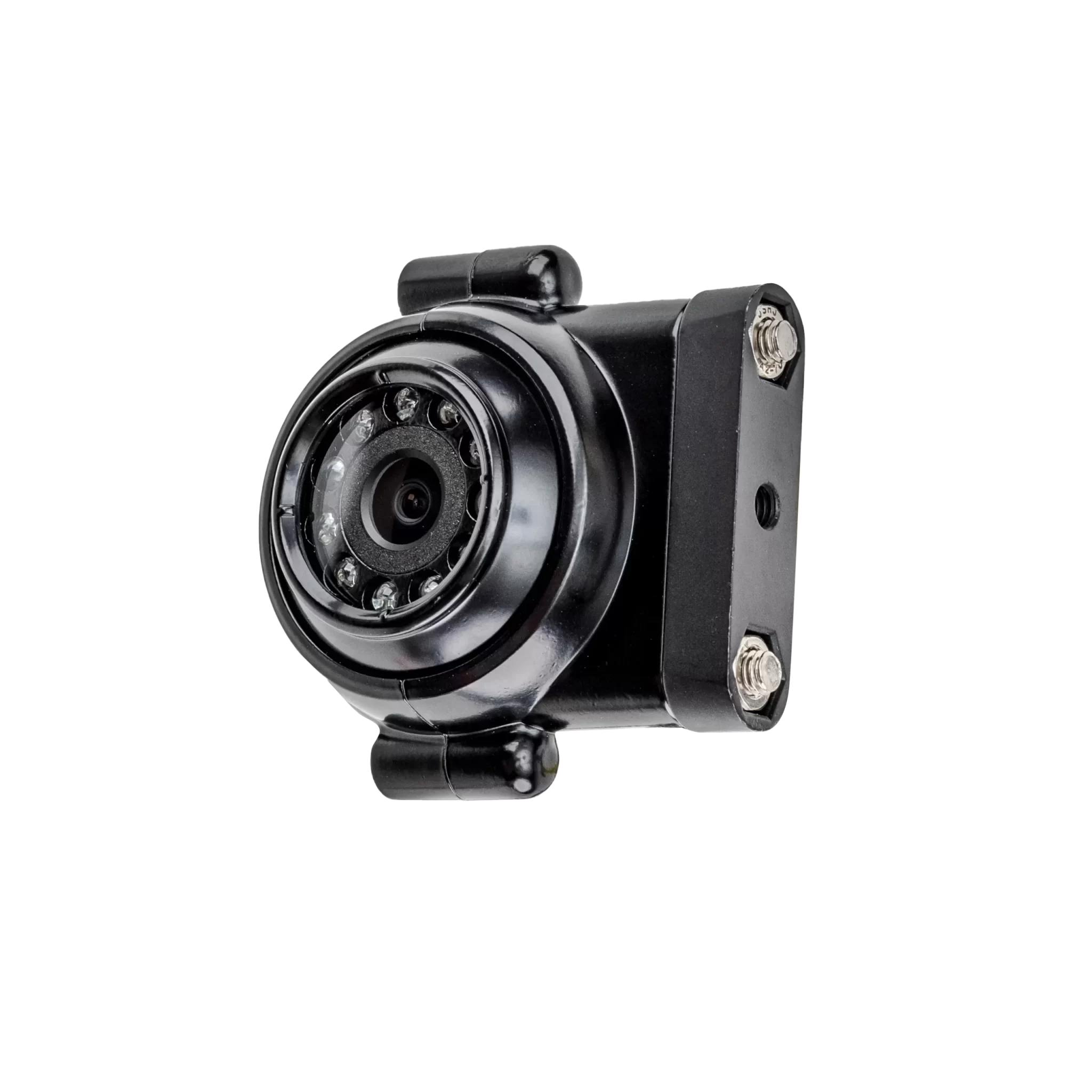

MIRROR MOUNT CAMERA

  • Working Voltage 10-16 DC
  • Rated Voltage / Current 230mA
  • Working Temperature -20℃ to 70℃
  • Storage Temperature -30℃ to 85℃
  • Connection Type 4-Pin Avaitor Wired
  • Mounting Locations Left or Right side
  • Mounting Type Mirror arm Bracket
  • Field of View (H) (V) 120º
  • Low Light Night Vision 0 LUX
  • Lens Size
  • Built in IRs
  • Waterproof Rating IP69K
  • Video Format Output AHD
  • Resolution 1080p

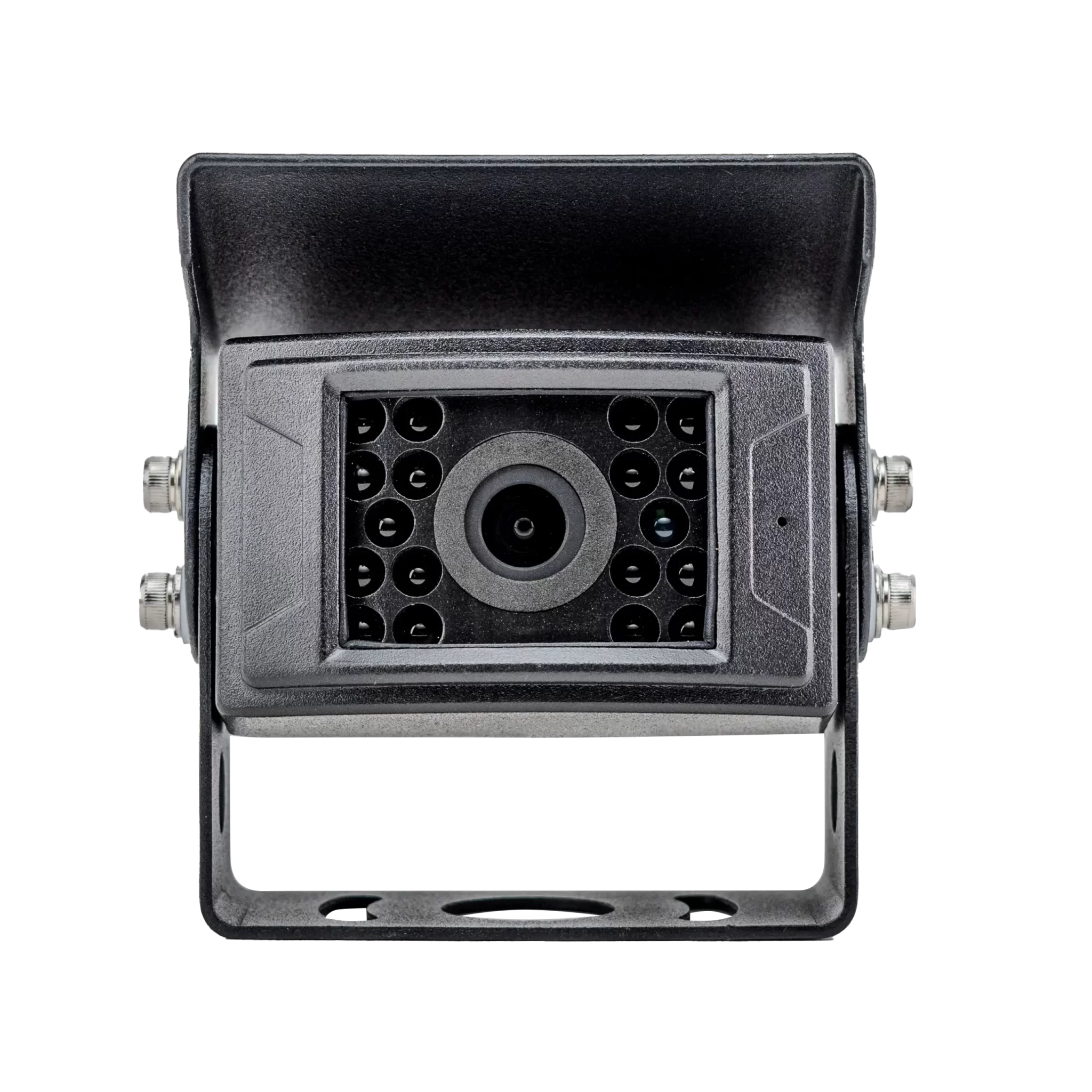

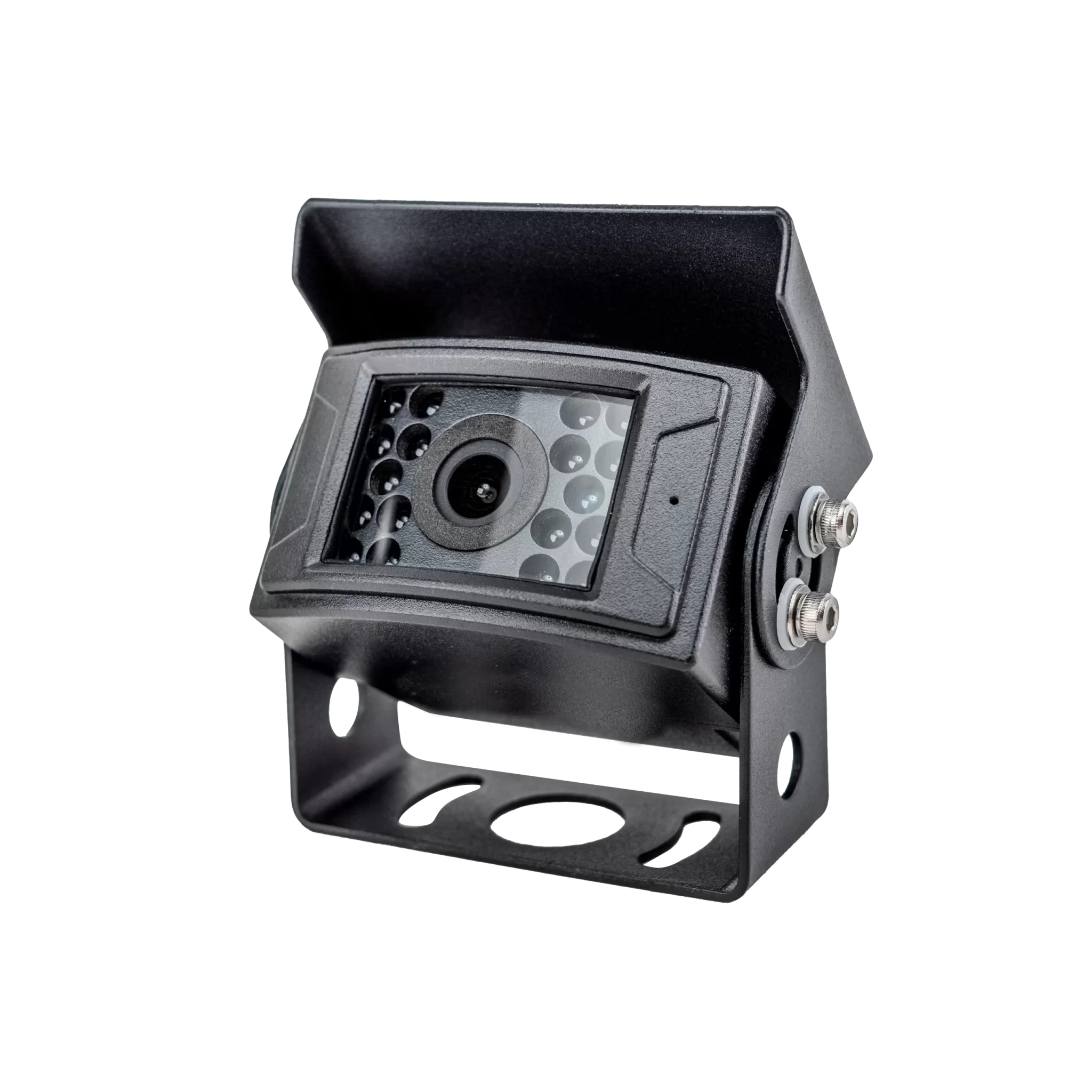

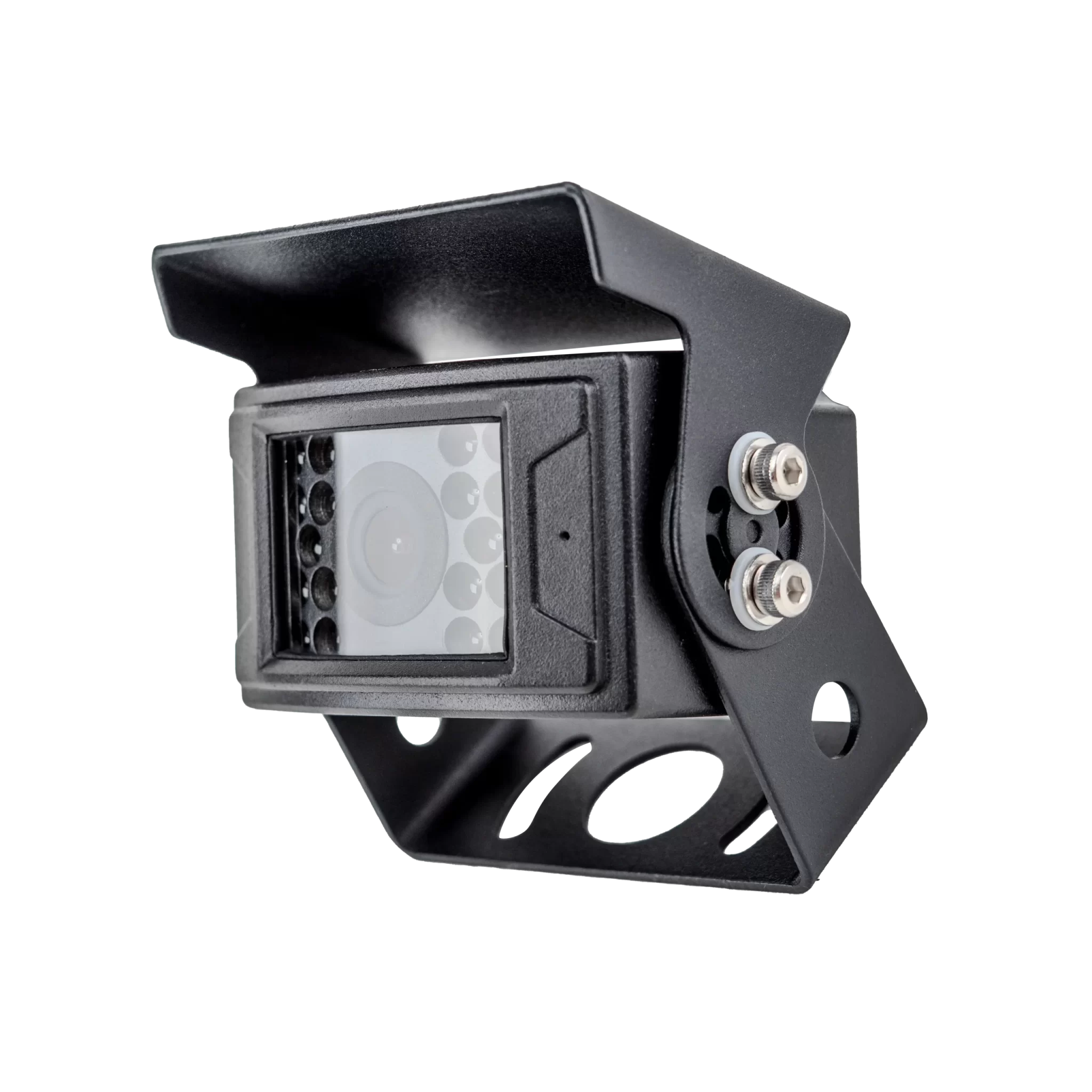

FRONT/ REAR CAMERA

  • Working Voltage 10v – 16v
  • Rated Voltage / Current 130ma
  • Working Temperature -20℃ to 70℃
  • Storage Temperature -30℃〜85℃
  • 4-Pin Avaitor Wired Connection Type
  • Rear or Front Mounting Locations
  • Mounting Type U-Bracket
  • Field of View (H) (V) 170º
  • Low Light Night Vision 0.1 LUX
  • Lens Size 1/4 inch
  • Built in IRs
  • Waterproof Rating IP68
  • Video Format Output AHD
  • Resolution 1080p



MONITOR

  • Working Voltage DC12V & DC24V
  • Rated Voltage / Current
  • Power Consumption 4W
  • Working Temperature -20℃-60℃
  • Storage Temperature -30℃-70℃
  • Display Brightness 500cd/m2
  • Screen Size 7 inch
  • Resolution 1024*600(IPS)
  • Aspect Ratio 16:9
  • Camera Connection Type Wired (Max 4 cameras)
  • Video Format Input AHD
  • Built-in DVR
  • Built in Speaker
  • Video trigger input triggers
  • Universal
