FullVUE® Mirror Vision System for Jeep Wrangler and Gladiator (2007-Current)

The Brandmotion FullVUE® Mirror Vision System offers a live streaming full HD mirror and camera that reduces blindspots while driving by providing a clear, crisp view of exactly what you need to see behind you without obstructions of partitions, passengers, cargo, or small rear windows. It includes an integrated dash-cam and DVR recording for your protection and is equipped with night time and park-mode settings.

0 User feedback

FullVUE® Mirror Vision System for Jeep Wrangler and Gladiator (2007-Current)

Name: Vehicle Safety Systems
Brand: Brandmotion
Rating: 4.8 (216 reviews)

Part Number:

FVMR-8886

Category:

Categories: Mirrors, Vision System

MSRP

$509.95

Purchase Options

LEARN MORE AT

Includes Support by Crutchfield℠

Installation Instructions

Includes Spare Tire Stainless Steel Mount
Always On, Digital Observation
Full Touchscreen For Easy Adjustments
Advanced Anti-Glare Tempered Glass Screen
Retains Standard Mirror Functionality With One Touch
Automatic Brightness Adjustment
2 Channel DVR Functionality
Built-In G-Shock Sensor For Automatic Event Recording

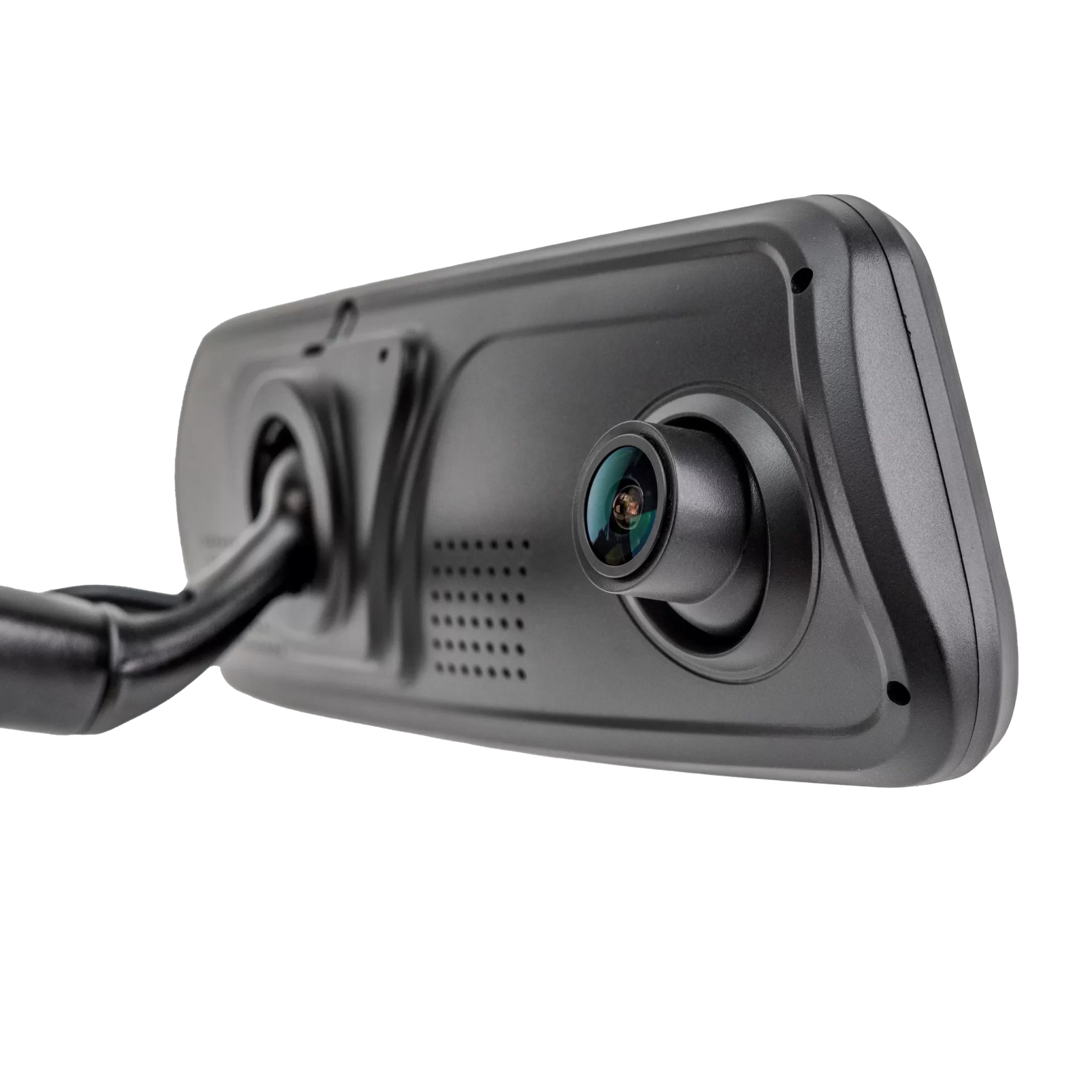

Built-In Front Facing Camera with DVR Recording
Includes 32 GB SD Card

CAMERA

Working Voltage DC 5V
Rated Voltage / Current
Working Temperature -20°C to 70°C
Storage Temperature -30°C to 80°C
Connection Type Wired to mirror
Mounting Locations Rear

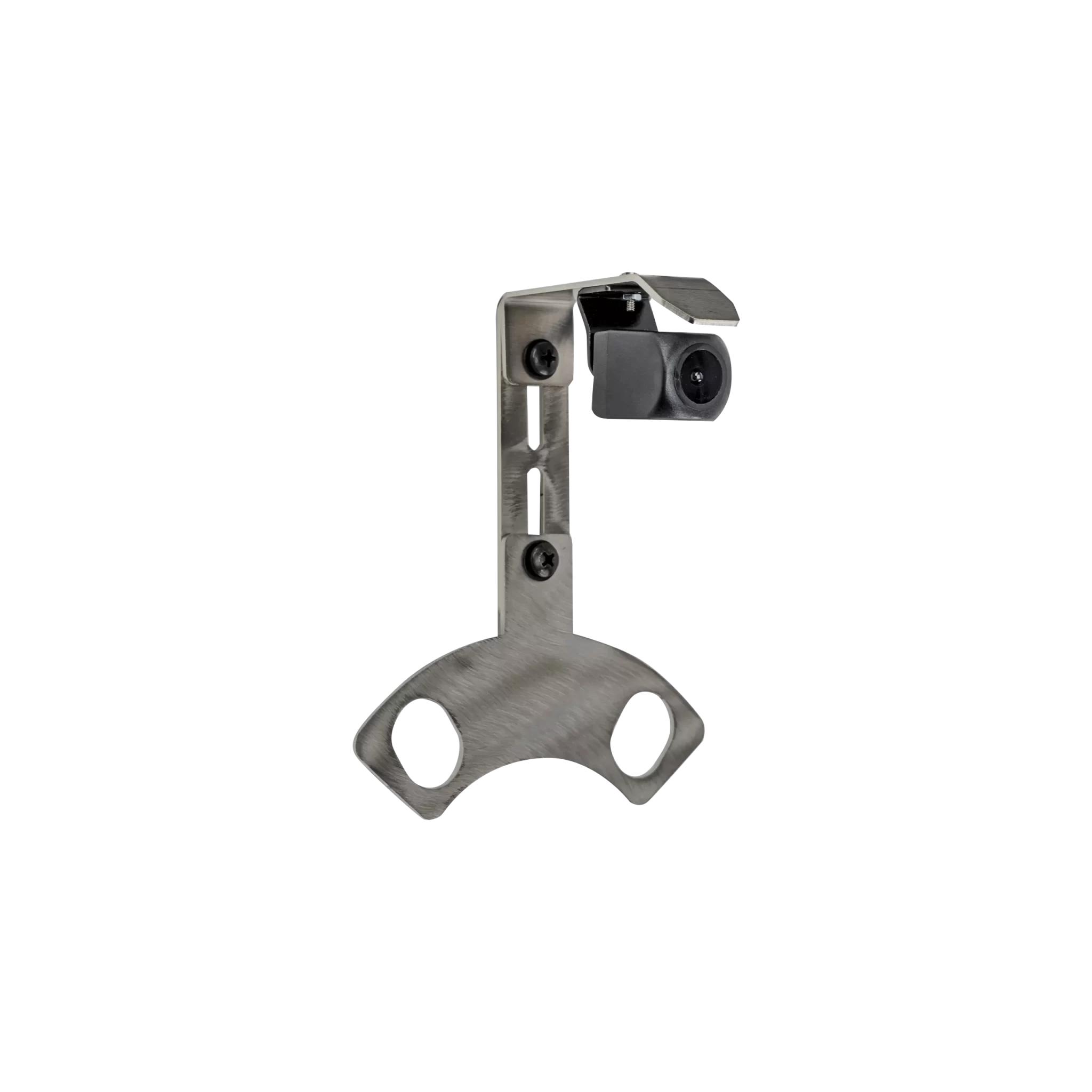

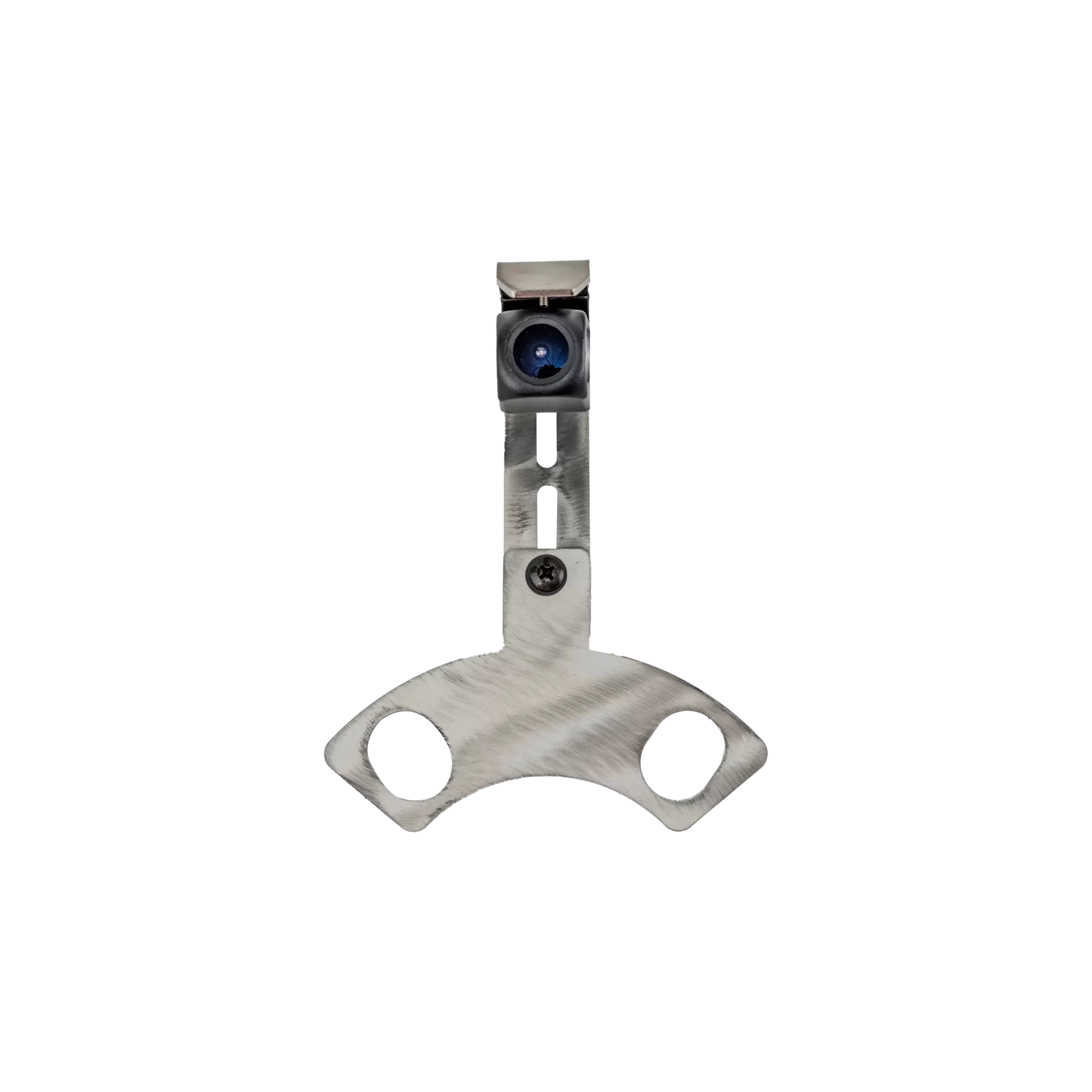

Mounting Type Attached to third brake light bezel
Field of View (H) (V) 170° 140°
Low Light Night Vision 0.1Lux
Lens Size 16mm
Built in IRs No, it is low illumination
Waterproof Rating IP67
Video Format Output TVI
Resolution 1920(H)×1080(V)

MIRROR

Working Voltage DC 12V/24V
Rated Voltage / Current
Power Consumption 5W
Working Temperature -20°C to 70°C
Storage Temperature -30°C to 80°C
Display Brightness 800cd/m2
Screen Size 9.66 inch
Resolution 320*1280
Camera Connection Type Wired
Video Format Input TVI
DVR Built-in Y/N Yes (Max 128 micro SD card)
Built in speaker Yes
Video trigger input triggers No
Second camera Yes
Resolution 1920 x 1080 Resolution 1080p Front Camera

Jeep Wrangler JK 2007-2018
Jeep Wrangler JL 2018-2021
Jeep Gladiator JT 2018-2021

Installing this product on a Jeep JL equipped with the SOS/Assist Functionality will render the system inoperable. At this time we do not offer a solution for this system. Install at your own discretion.
