Parking Sensor System – Front or Rear

Designed for compatibility with steel or plastic bumpers on all vehicle types, the Brandmotion sensors flush mount to either the front or rear of your vehicle. The 4-sensor system can be installed on any vehicle with a 17-foot or less wheelbase, and comes with visual and audible alerts.Β  These low profile sensors arrive black out of the box, yet are easily customizable with automotive paint.
Home β€Ί Shop β€Ί Proximity Sensors β€Ί Parking Sensor System – Front or Rear

0

User feedback

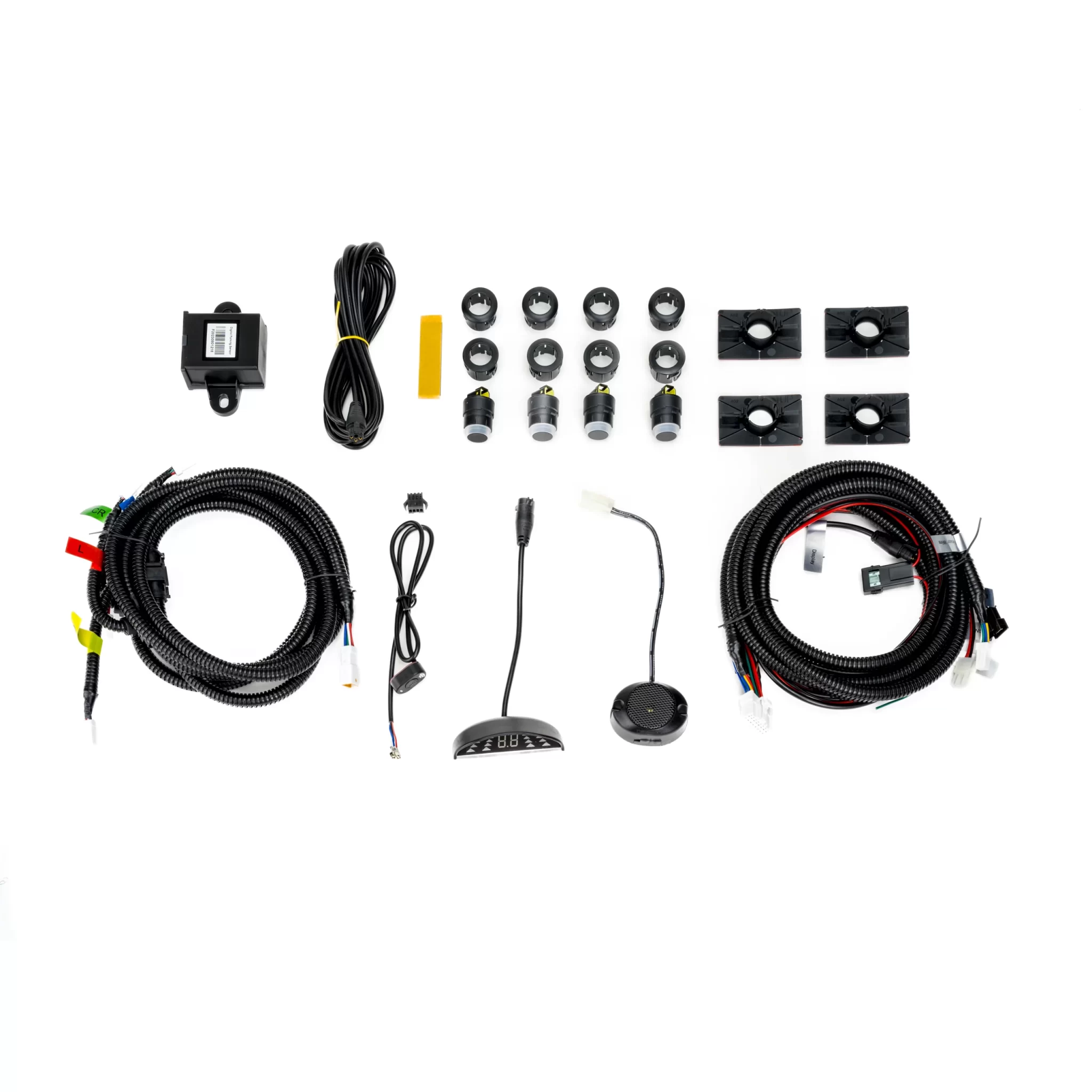

Parking Sensor System – Front or Rear

Designed for compatibility with steel or plastic bumpers on all vehicle types, the Brandmotion sensors flush mount to either the front or rear of your vehicle. The 4-sensor system can be installed on any vehicle with a 17-foot or less wheelbase, and comes with visual and audible alerts.Β  These low profile sensors arrive black out of the box, yet are easily customizable with automotive paint.

Part Number:

9002-3010

Category:

Category:

MSRP

$169.95

Purchase Options

LEARN MORE AT

Includes Support by Crutchfieldβ„

  • Audible and visual alerts
  • Adjustable Volume options
  • Interchangeable with front or rear mounting
  • Compatible with most vehicle types

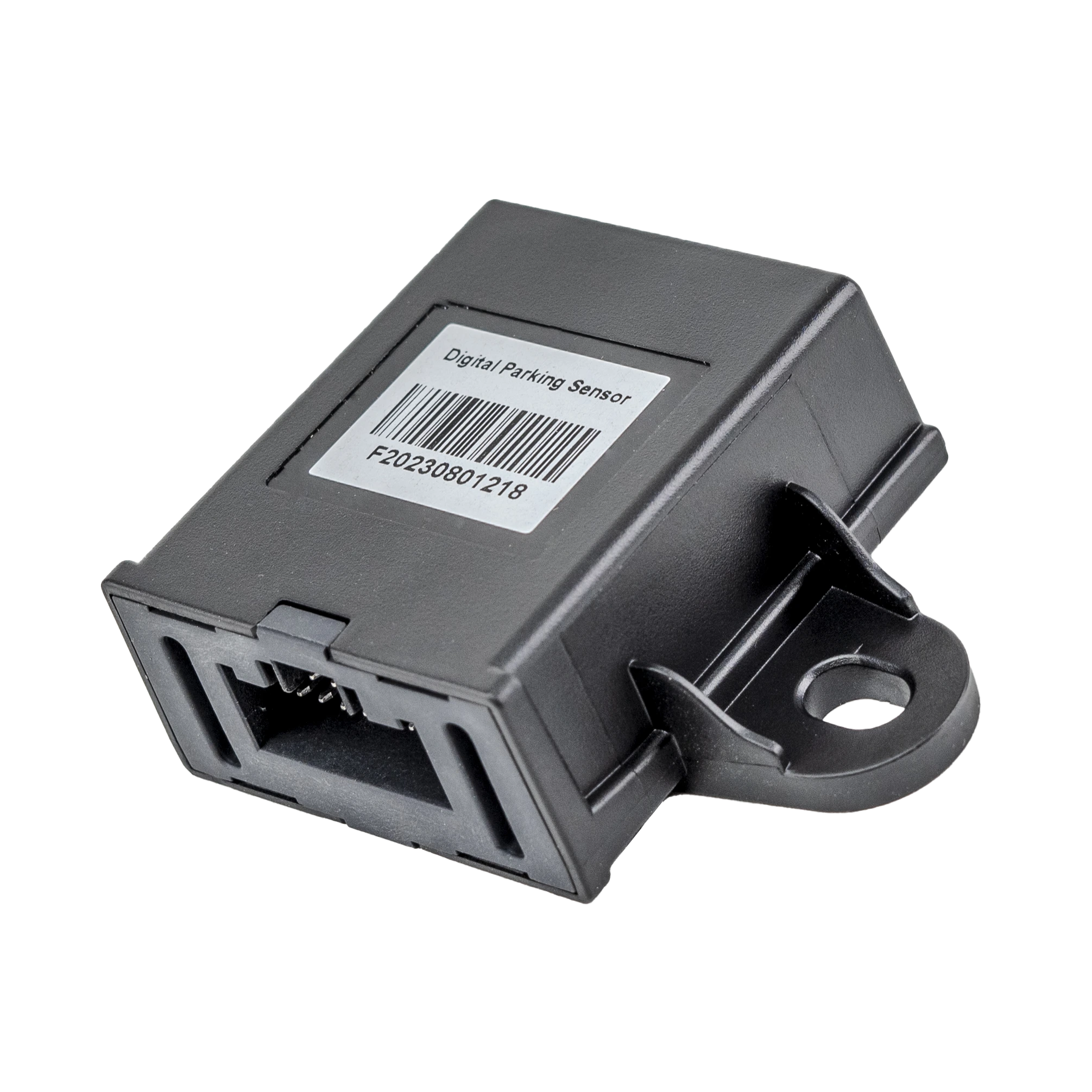

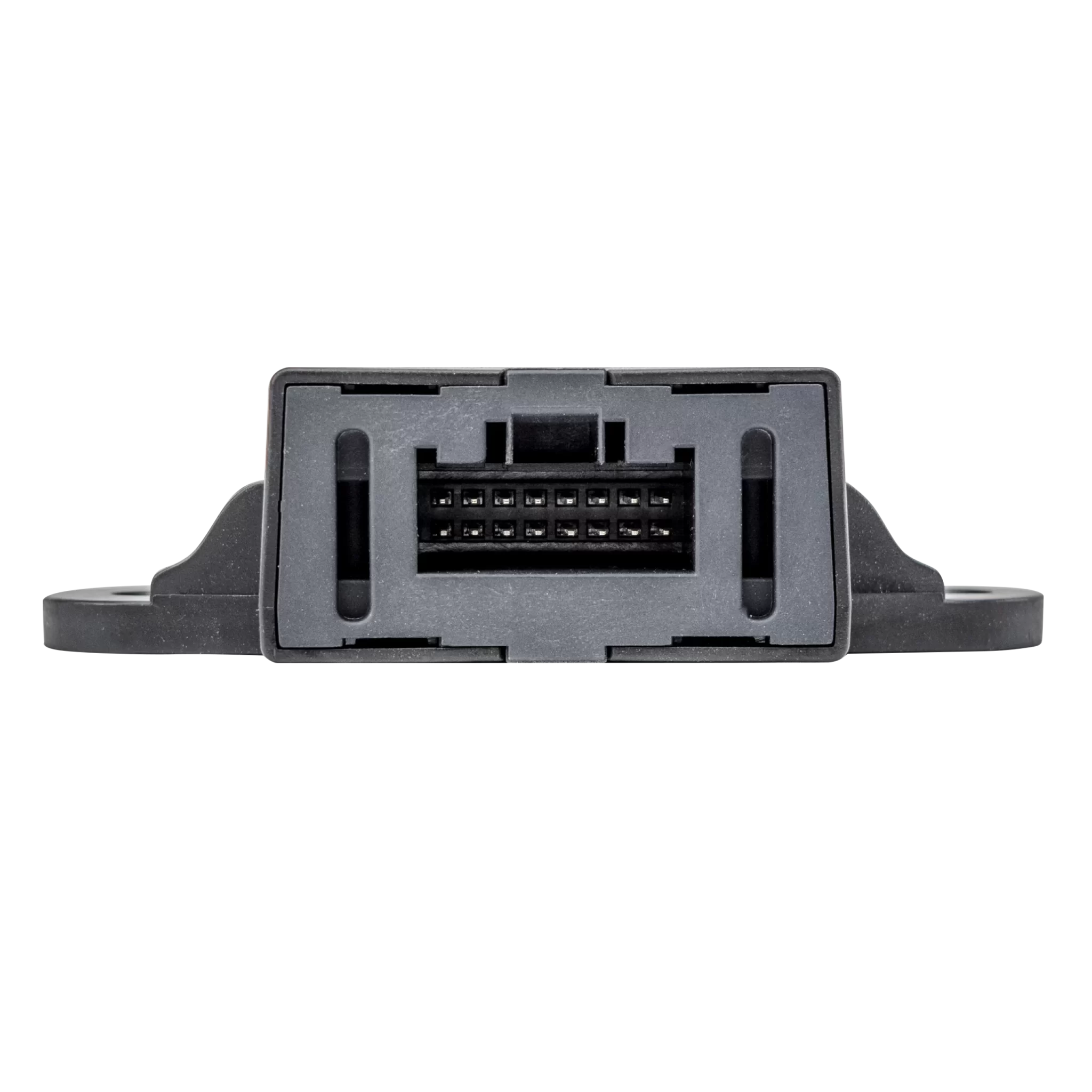

ECU

  • Working Voltage 9v-16v
  • Rated voltage / current 12v / 1amp
  • Working Temperature -20c – +80c
  • Storage Temperature -40c – +80c

SENSOR

  • Working Temperature -20c – +80c
  • Storage Temperature -40c – +80c
  • Detection Distance 120cm
  • Waterproof Rating IP68
  • Mounting Location Front or rear
  • Hole Size 16mm or 22mm

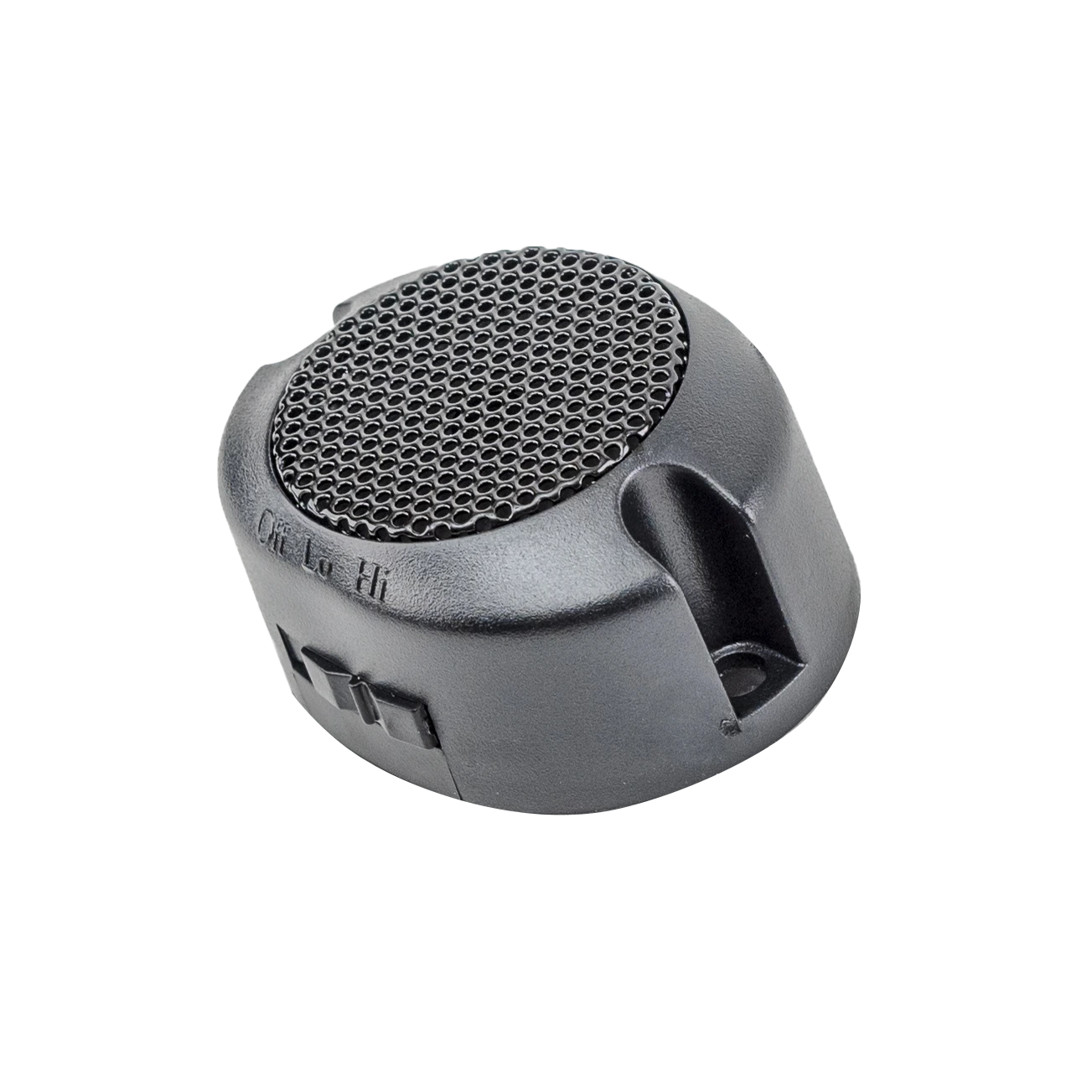

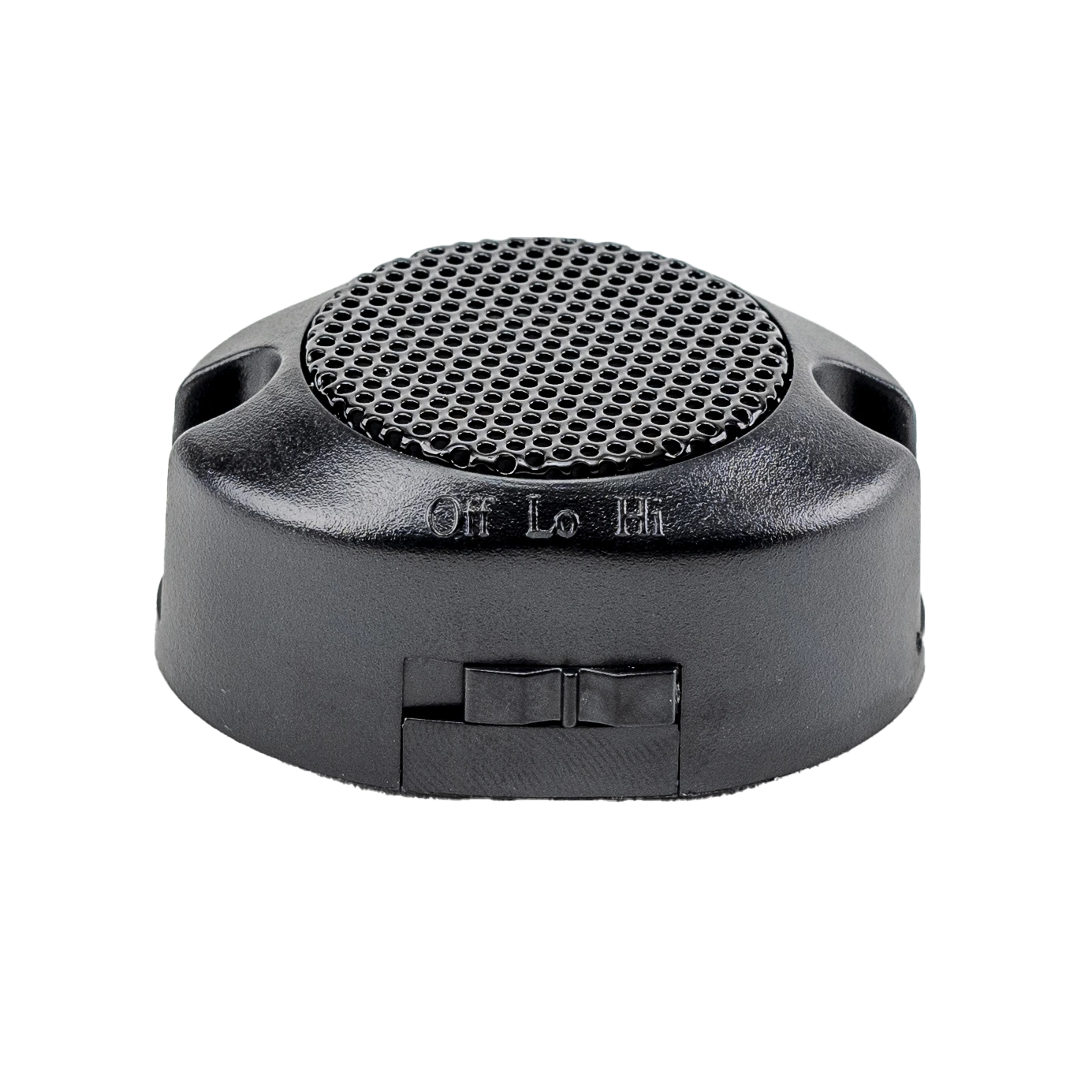

BUZZER

  • Mounting 3M tape / screws
  • Buzzer volume >85db
  • Volume adjustable YesΒ  Hi/Med/Lo

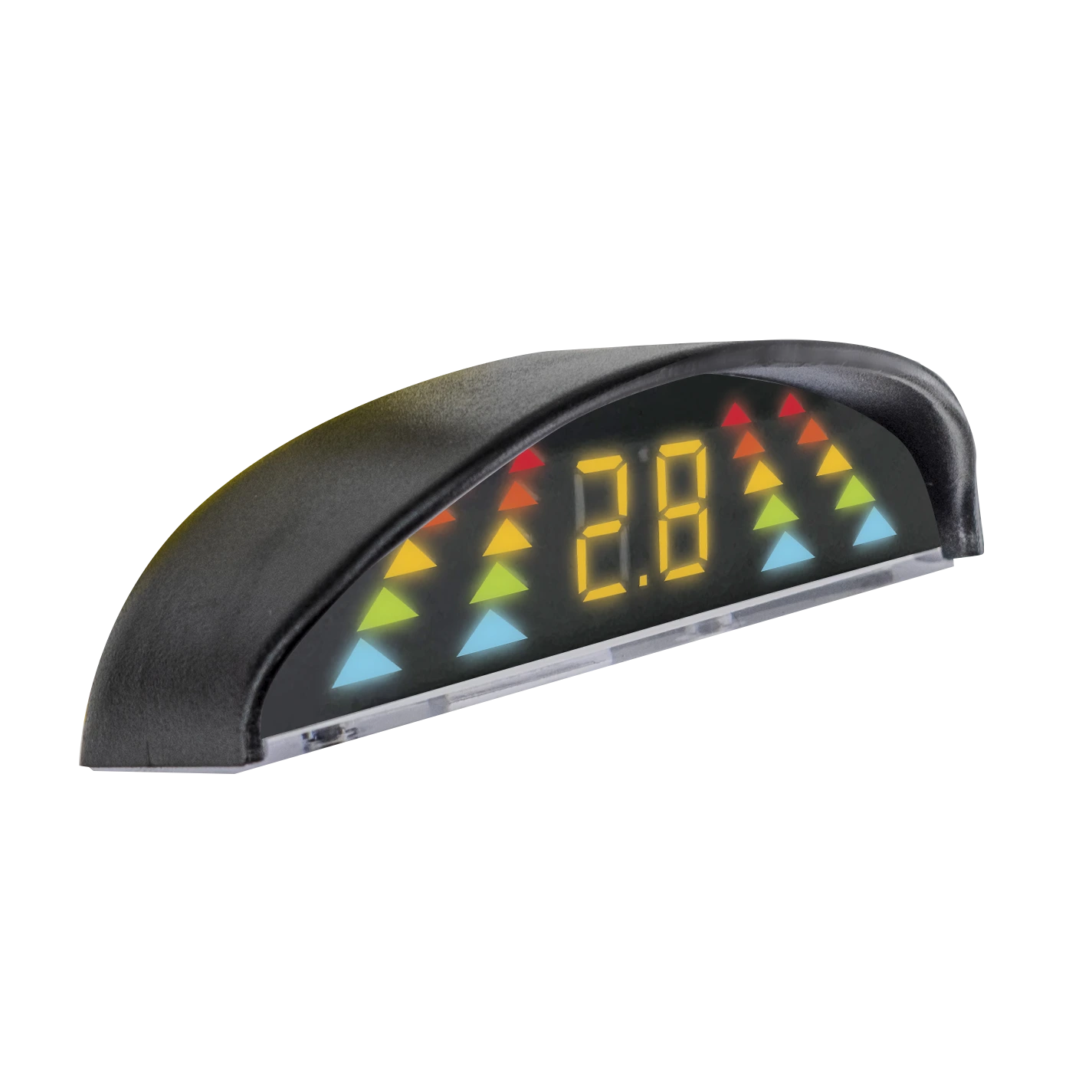

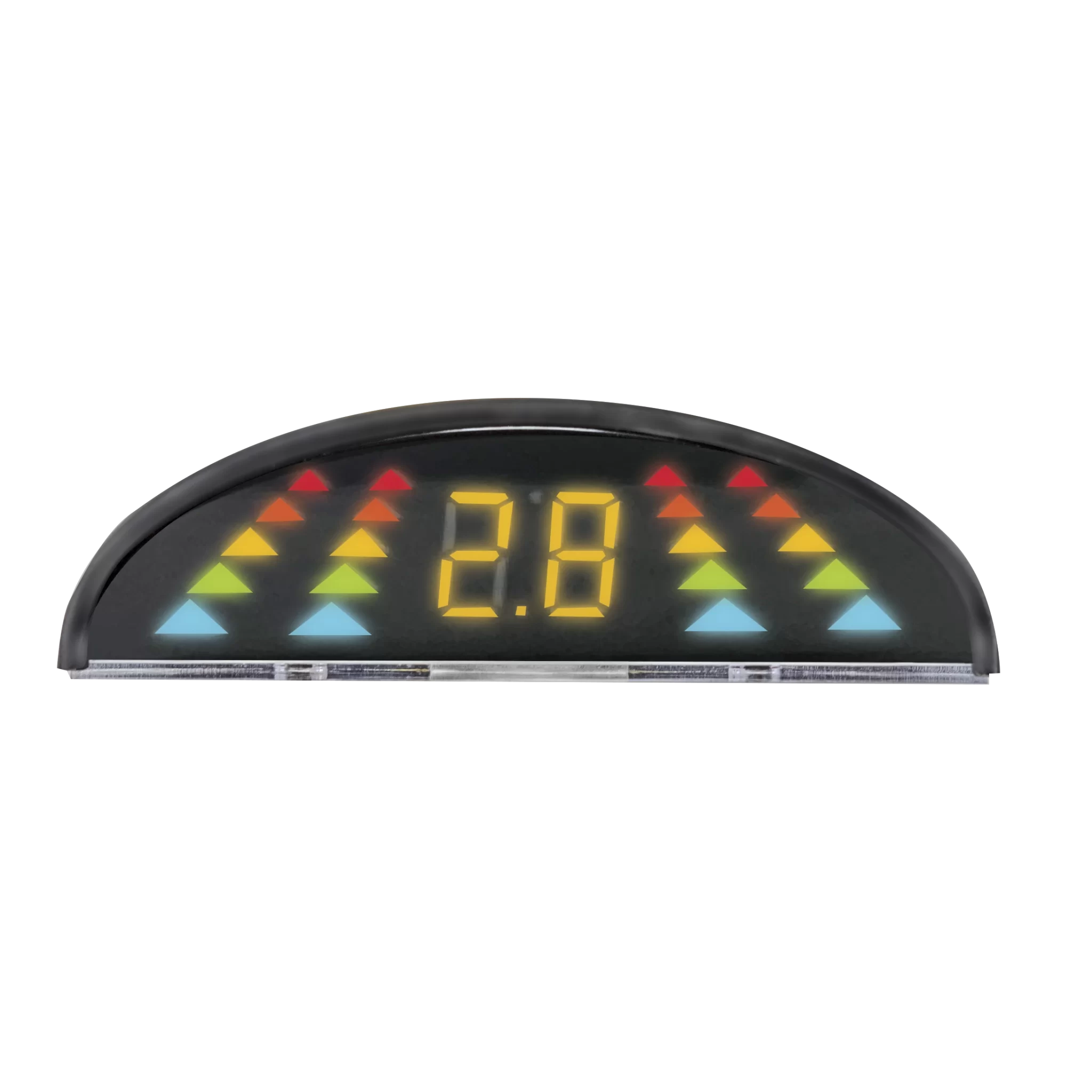

DISPLAY

  • Mounting 3M tape / screws
  • Distance measure 120cm
  • Brightness non adjustable

HARNESS

  • 4β€² Sensor Harness from Body Harness to Driver Side Sensor
  • 5β€² Switch Cable to ECU
  • 5β€² Speaker Cable to ECU
  • 8β€² Body Harness from ECU
  • 8β€² Display Extension Cable Length
  • This system is designed for passenger vehicles and pick-up trucks.
