SummitView™ Jeep Wrangler JK Adjustable Rear Vision System for Factory Display

Finally – an answer for Jeep Wrangler owners who want to add the safety and practicality of Rear Vision! Brandmotion’s exclusive line of Jeep Wrangler Rear Vision Systems gives you the edge in offering high quality back-up protection that’s not available anywhere else using our patented Stainless Steel Jeep bracket to guarantee a perfect fit! This rear vision kit uses the highest quality CMOS camera you can buy, an improved design camera with exceptional image clarity and crispness, as well as enhanced brightness for backing up at night. This kit is designed for Jeep Wranglers with virtually any wheel, including the spare tire, and factory display radio. It includes the programming module that temporarily plugs into the OBDII port to flash your radio. No dealer activation required!
Home Shop Camera SummitView™ Jeep Wrangler JK Adjustable Rear Vision System for Factory Display

0

User feedback

SummitView™ Jeep Wrangler JK Adjustable Rear Vision System for Factory Display

Finally – an answer for Jeep Wrangler owners who want to add the safety and practicality of Rear Vision! Brandmotion’s exclusive line of Jeep Wrangler Rear Vision Systems gives you the edge in offering high quality back-up protection that’s not available anywhere else using our patented Stainless Steel Jeep bracket to guarantee a perfect fit!

This rear vision kit uses the highest quality CMOS camera you can buy, an improved design camera with exceptional image clarity and crispness, as well as enhanced brightness for backing up at night. This kit is designed for Jeep Wranglers with virtually any wheel, including the spare tire, and factory display radio. It includes the programming module that temporarily plugs into the OBDII port to flash your radio. No dealer activation required!

Part Number:

SUTV-8847

Category:

Categories: ,

MSRP

$459.95

Purchase Options

LEARN MORE AT

Includes Support by Crutchfield℠

  • Connect To Factory Display

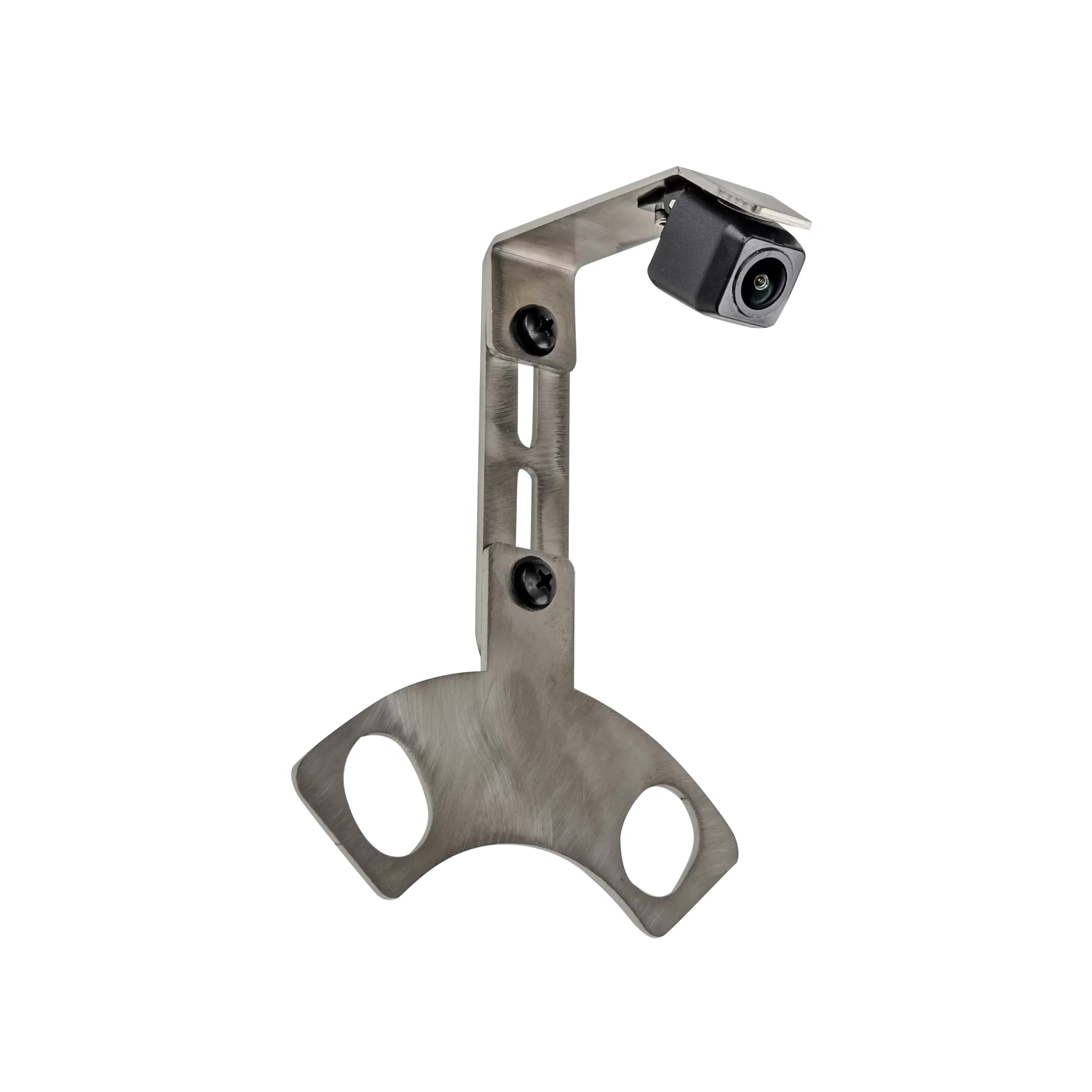

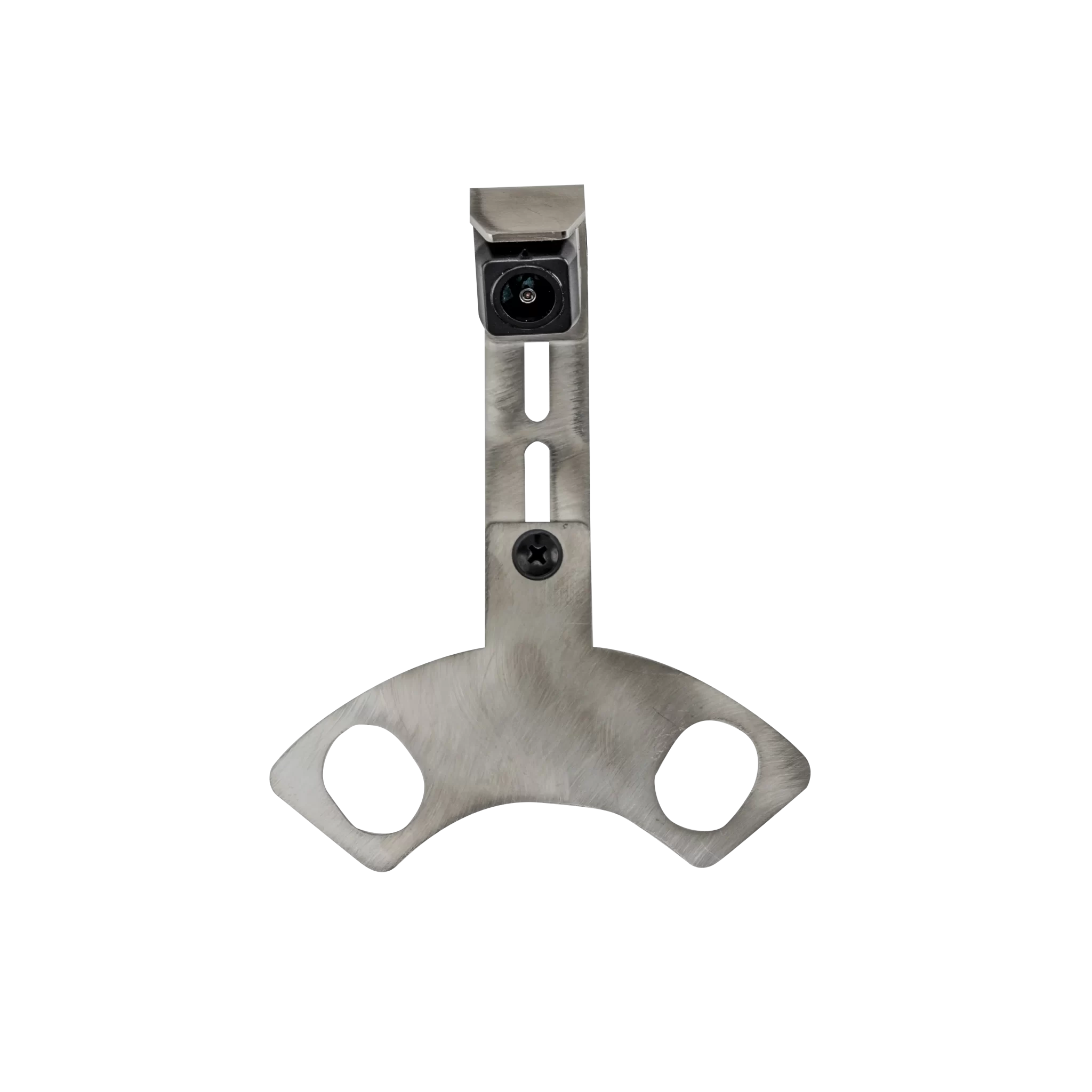

  • Brandmotion™ Exclusive Stainless Steel Rear Tire Mount Ensures Perfect Fit
  • High Quality CMOS Camera
  • Color Image With Automatic White Balance
  • Waterproof Case With Anti-fog Lens
  • Integrated Parking Gridlines

CAMERA

  • Working Voltage 9v – 16v
  • Rated Voltage / Current 130ma
  • Working Temperature -20℃ to 70℃
  • Storage Temperature -30℃〜85℃
  • Connection Type RCA
  • Mounting Locations Rear
  • Mounting Type Spare tire location
  • Field of View (H) (V) 150º x 100º
  • Low Light Night Vision 0.1 LUX
  • Lens Size/type CMOS
  • Built in IRs No
  • Waterproof Rating IP68
  • Video Format Output NTSC
  • Resolution 480p
  • Parking Gridlines



  • Jeep Wrangler JK 2007-2018 with Factory 6.1″ Display

If you are looking for a single camera rear vision system for an aftermarket radio, please see SUTV-8848.
