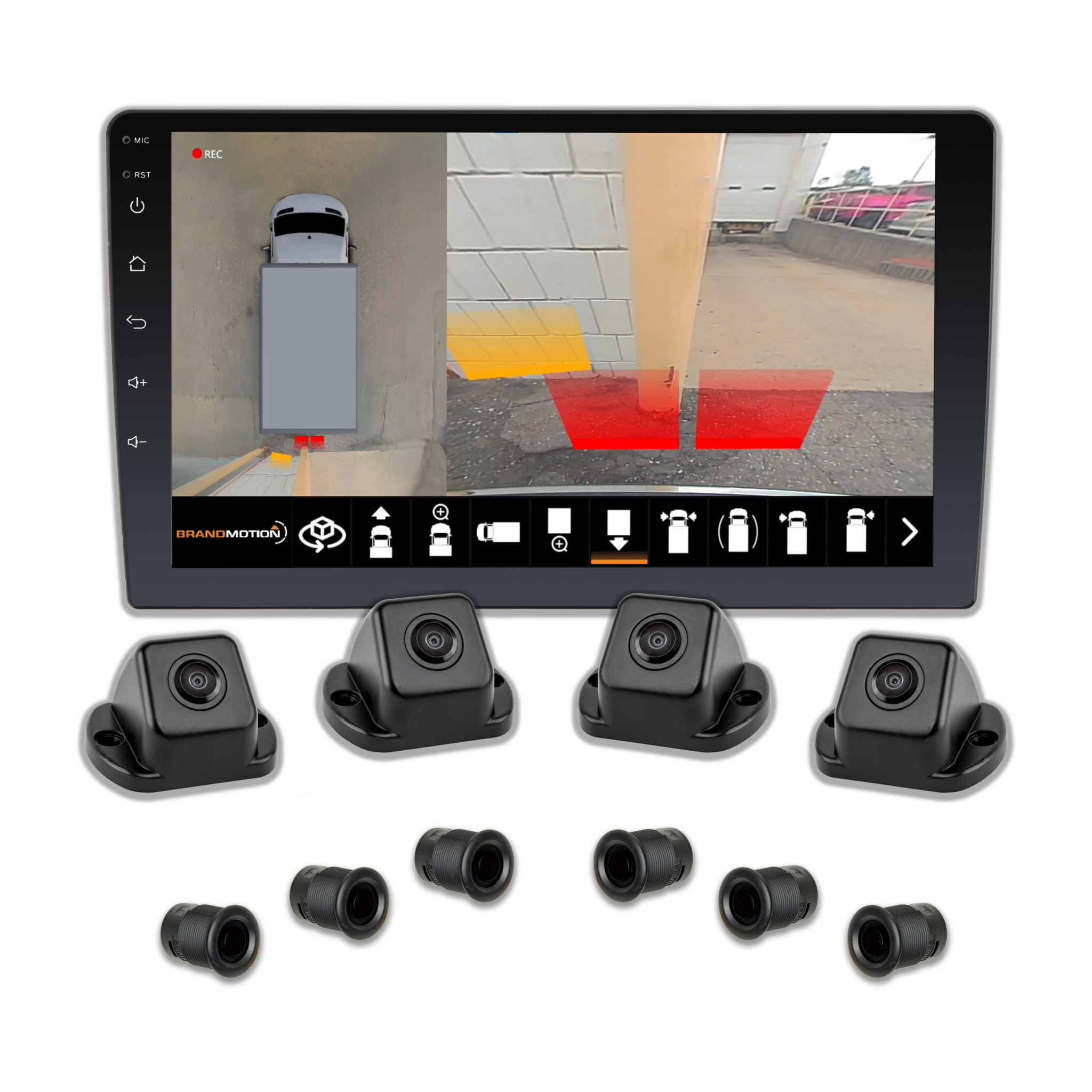

SurroundVUE™ 360° System with 6 Proximity Sensors

New product! Eliminate blindspots with a 3D 360-degree bird’s-eye view of a driver’s vehicle at all times. The four-camera system offers 1920x1080p HD video shot at 60 frames per second to ensure the most accurate up-to-date video feed on today’s market — all while capturing every second with DVR recording. Plus, the 6 integrated rear parking sensors seamlessly overlay visual and audible proximity alerts to aid drivers in tight situations, providing additional peace of mind. Designed mindfully to not only evoke an authentic OEM look and feel, the system also helps drivers prevent accidents, park with ease, and keep a watchful eye on their surroundings.
Home Shop Monitors SurroundVUE™ 360° System with 6 Proximity Sensors

0

User feedback

SurroundVUE™ 360° System with 6 Proximity Sensors

New product!

Eliminate blindspots with a 3D 360-degree bird’s-eye view of a driver’s vehicle at all times. The four-camera system offers 1920x1080p HD video shot at 60 frames per second to ensure the most accurate up-to-date video feed on today’s market — all while capturing every second with DVR recording. Plus, the 6 integrated rear parking sensors seamlessly overlay visual and audible proximity alerts to aid drivers in tight situations, providing additional peace of mind. Designed mindfully to not only evoke an authentic OEM look and feel, the system also helps drivers prevent accidents, park with ease, and keep a watchful eye on their surroundings.

Part Number:

FLTW-3610

Category:

MSRP

$1,699.95

Purchase Options

LEARN MORE AT

Includes Support by Crutchfield℠

  • Optional 4 Camera DVR
  • 360° Camera View
  • 3D Image Stitching
  • Turn Signal Camera Activation
  • 1920×1080 9″ Screen

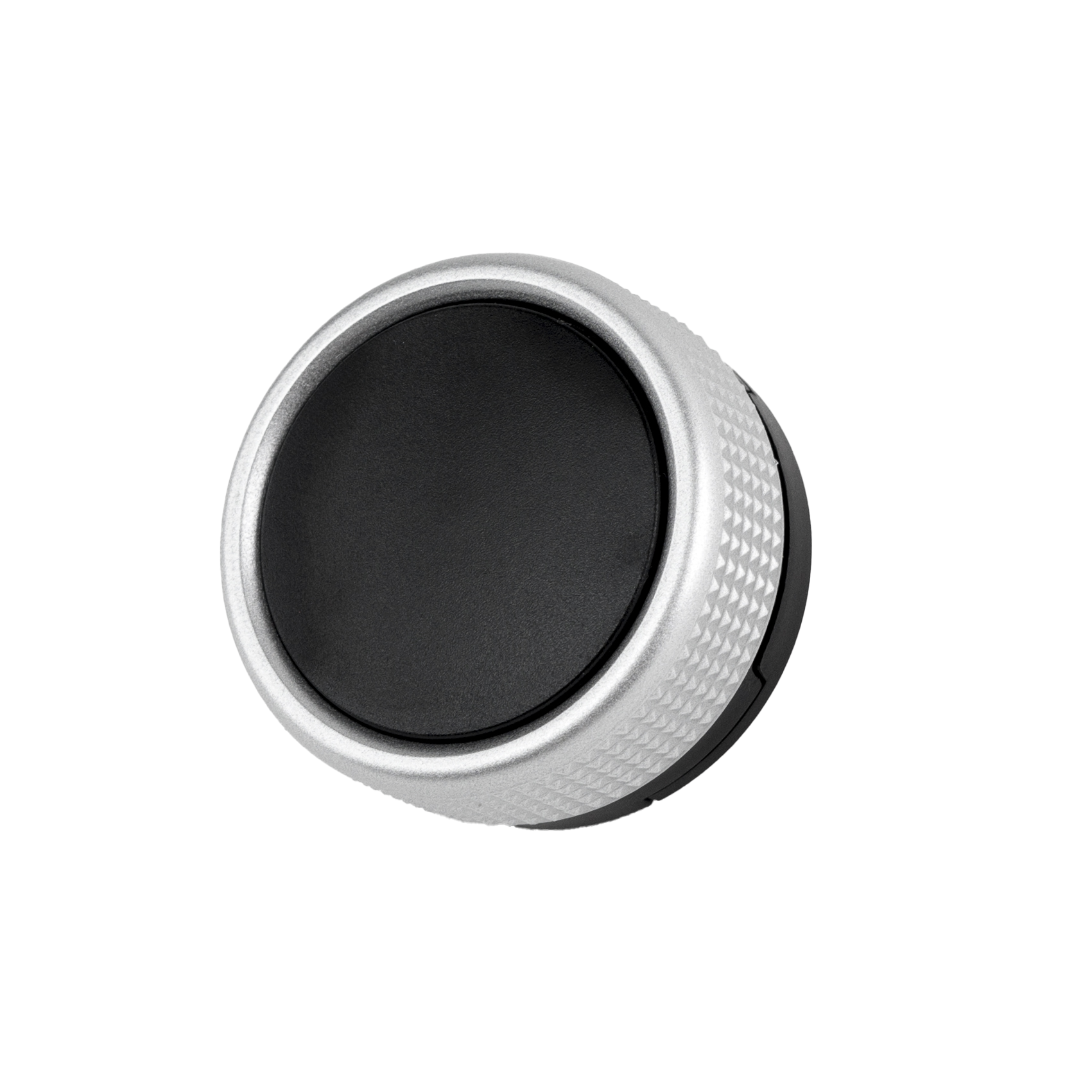

  • Touchscreen or Dial Navigation
  • 13 Selectable Views
  • Smart, Accurate Ultrasonic Detection
  • Flexible Sensor Mounting – 6 lower mounted, or 4 lower and 2 upper mounted
  • Low Profile, OEM-Look Sensors
  • Seamless Visual and Audible Proximity Alerts

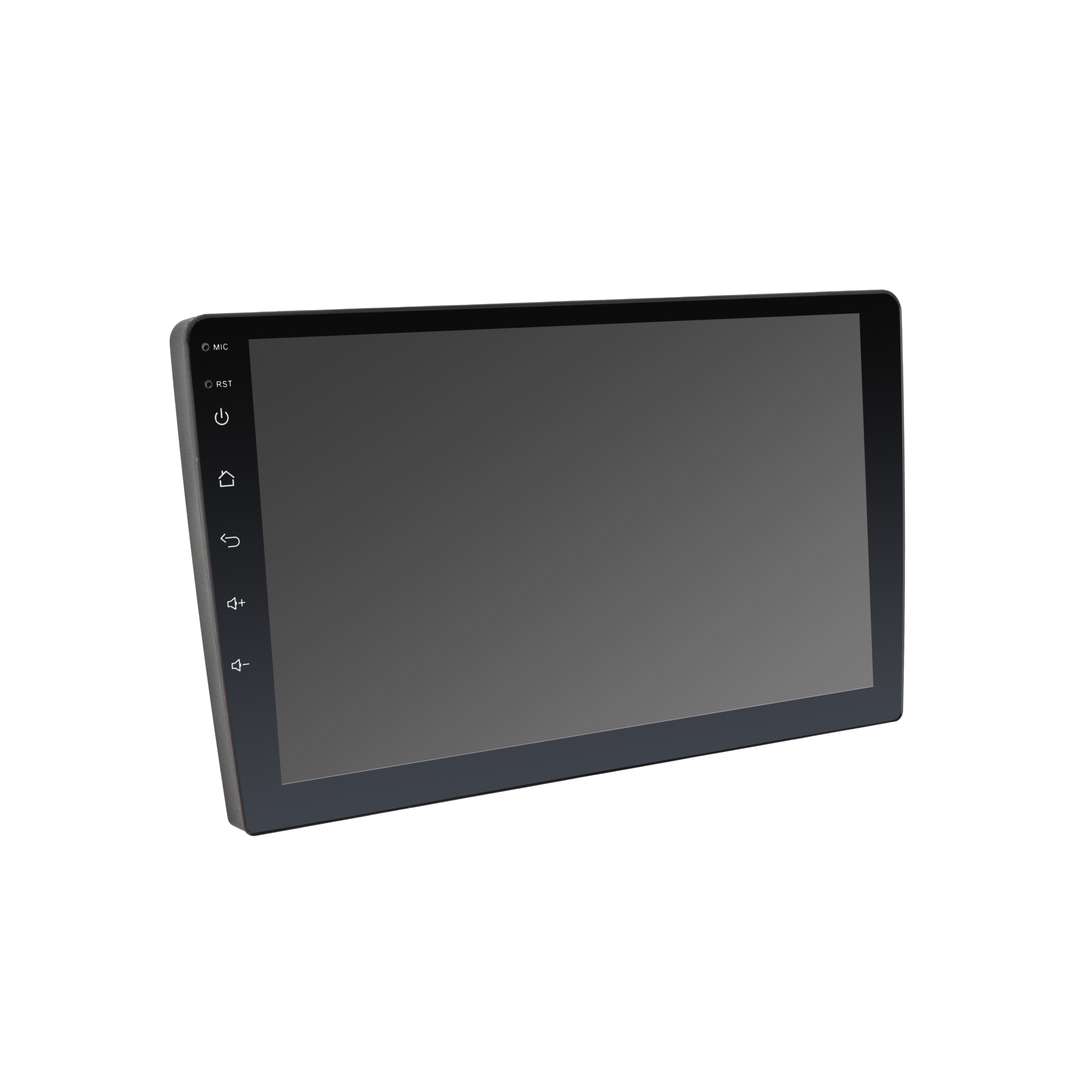

DISPLAY

Working Voltage 8-16v DC
Rated Voltage / Current 1A
Power Consumption 5W
Working Temperature -20℃~+70℃
Storage Temperature -30℃~+80℃
Screen Size 9.1 inch
Resolution 1080p
Aspect Ratio 19:9
Camera Connection Type Wired
Video Format Input AHD
Video trigger input triggers Yes Reverse / left / right
DVR Built-in Y/N Yes 16G

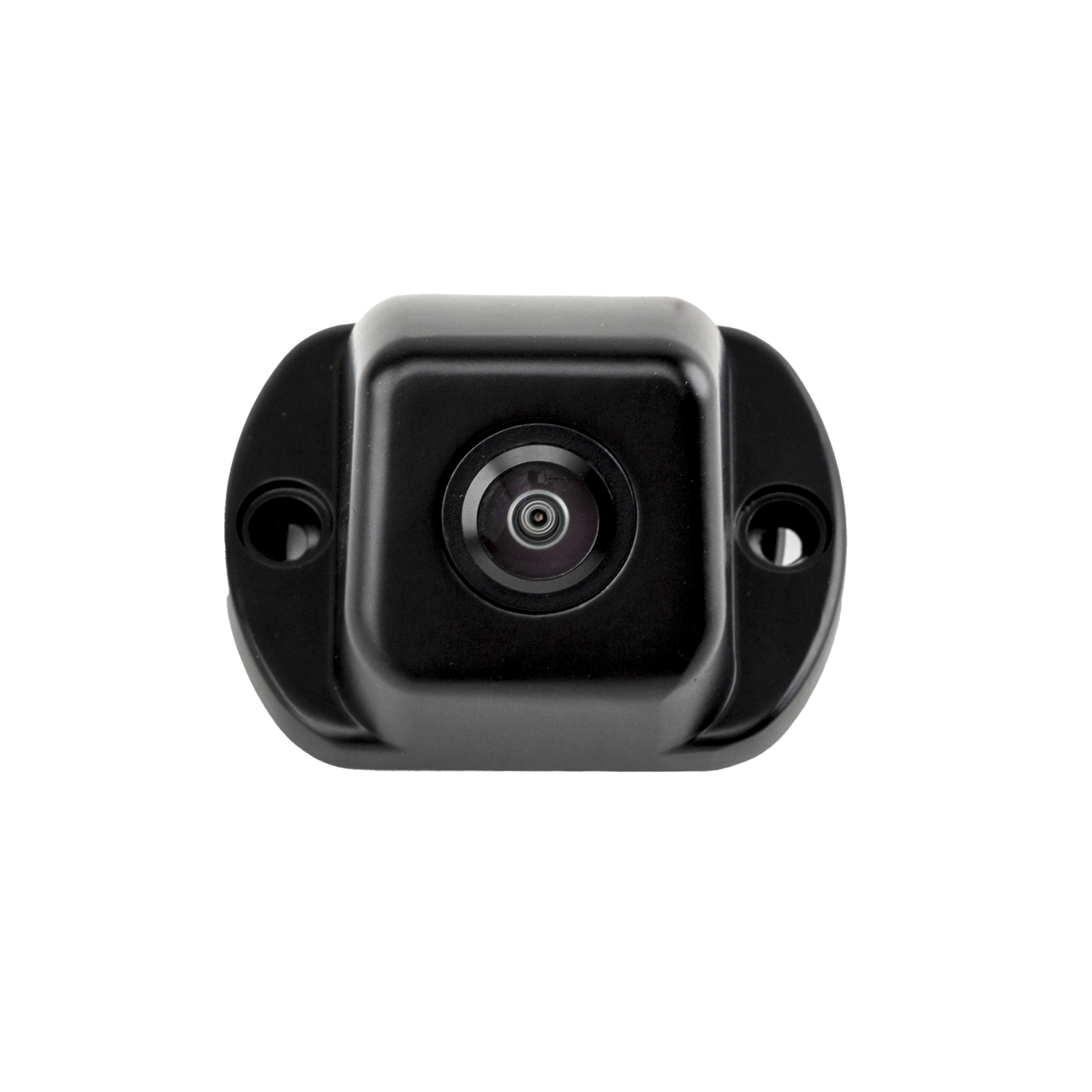

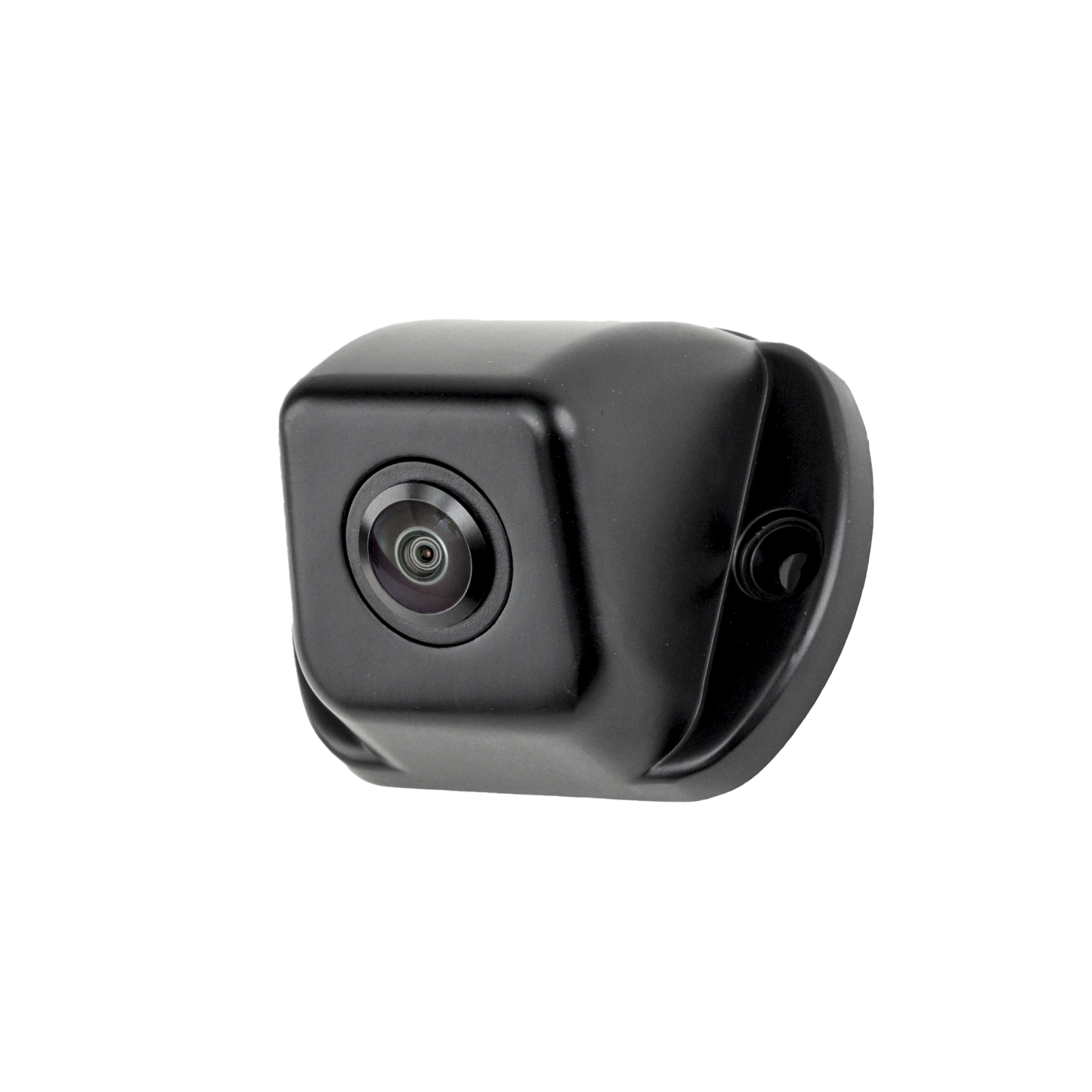

CAMERAS

Working Voltage 5v
Rated Voltage / Current <140mA
Working Temperature -20℃~+70℃
Storage Temperature -30c – 75c
Connection Type Wired
Mounting Locations Front / rear / left side / right side
Mounting Type Surface mount / screws
Field of View (H) (V) 230º, 130º
Low Light Night Vision 0.001LUX
Lens Size 14mm
Built in IRs No
Waterproof Rating IP67
Video Format Output AHD
Resolution 1080p 1920×1080



REAR SENSOR ECU

Working Voltage 9v-16v
Rated Voltage / Current 12v / 1amp
Working Temperature -20c – +80c
Storage Temperature -40c – +80c

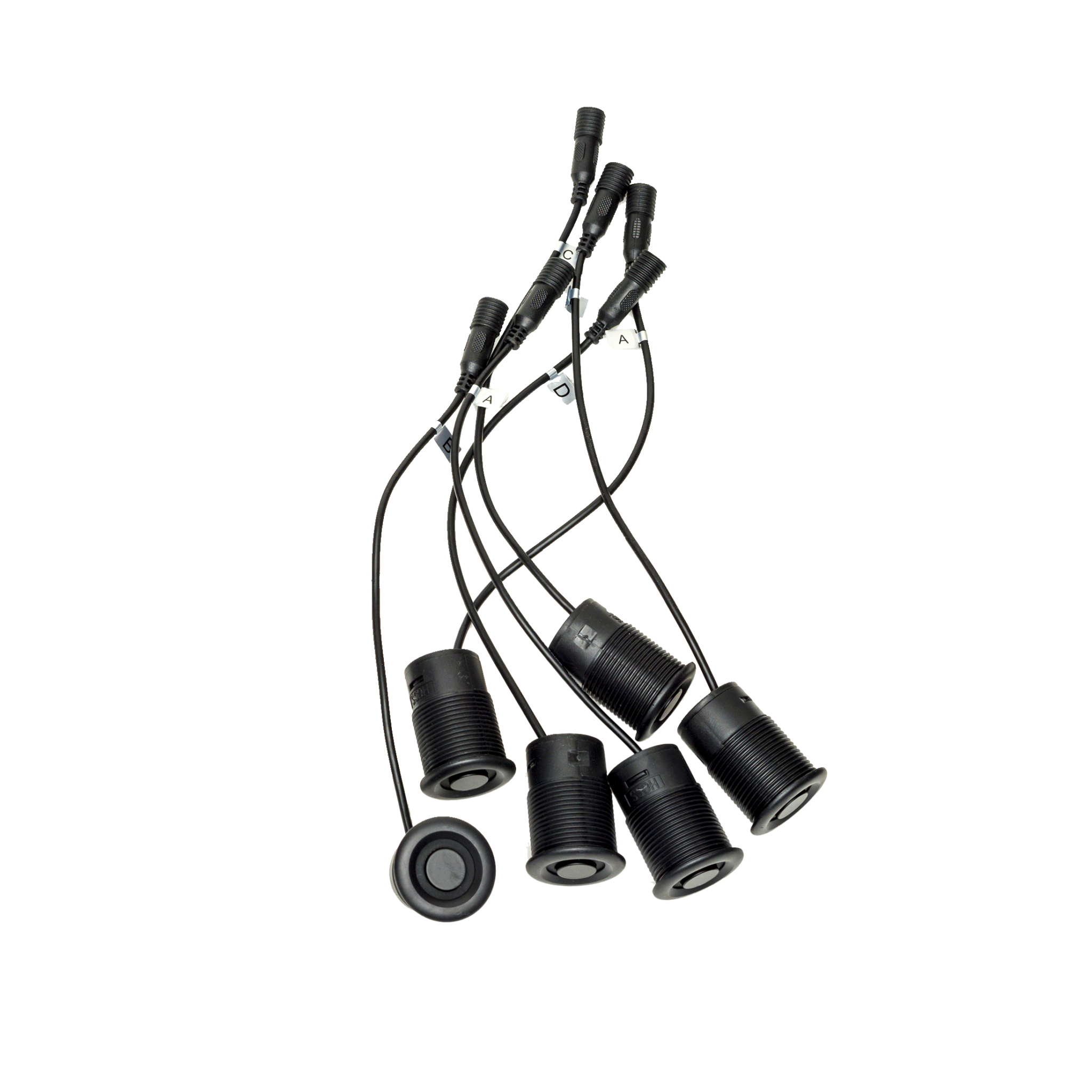

SENSORS

Working Voltage N/A
Rated Voltage / Current N/A
Working Temperature -20c – +80c
Storage Temperature -40c – +80c
Detection Distance 108 inches
Waterproof Rating IP68
Mounting Locations
6 rear lower, or 4 rear lower and 2 rear upper
Hole Size 1.0625 / 27mm



BUZZER

Mounting 3M tape / screws
Buzzer volume >85db
Volume adjustable No
  • Universal
