Wireless Transparent Trailer® System

NEW PRODUCT! Our iconic towing system redesigned for ALL vehicle types! The Wireless Transparent Trailer® System eliminates blind spots and provides unobstructed visibility whether you’re pulling a trailer or not. The high-definition digital mirror replaces your traditional rearview mirror and provides two cameras: a universal camera and a wireless camera on the rear of your trailer. While you are towing, use the trailer camera view to regain road visibility. While not towing, utilize the vehicle mounted camera to gain a wide angle field of view and improve your road safety. Switch between the two views with the click of a button. Take the stress out of towing with this industry leading product!

0 User feedback

Wireless Transparent Trailer® System

Name: Vehicle Safety Systems
Brand: Brandmotion
Rating: 4.8 (216 reviews)

NEW PRODUCT! Our iconic towing system redesigned for ALL vehicle types!

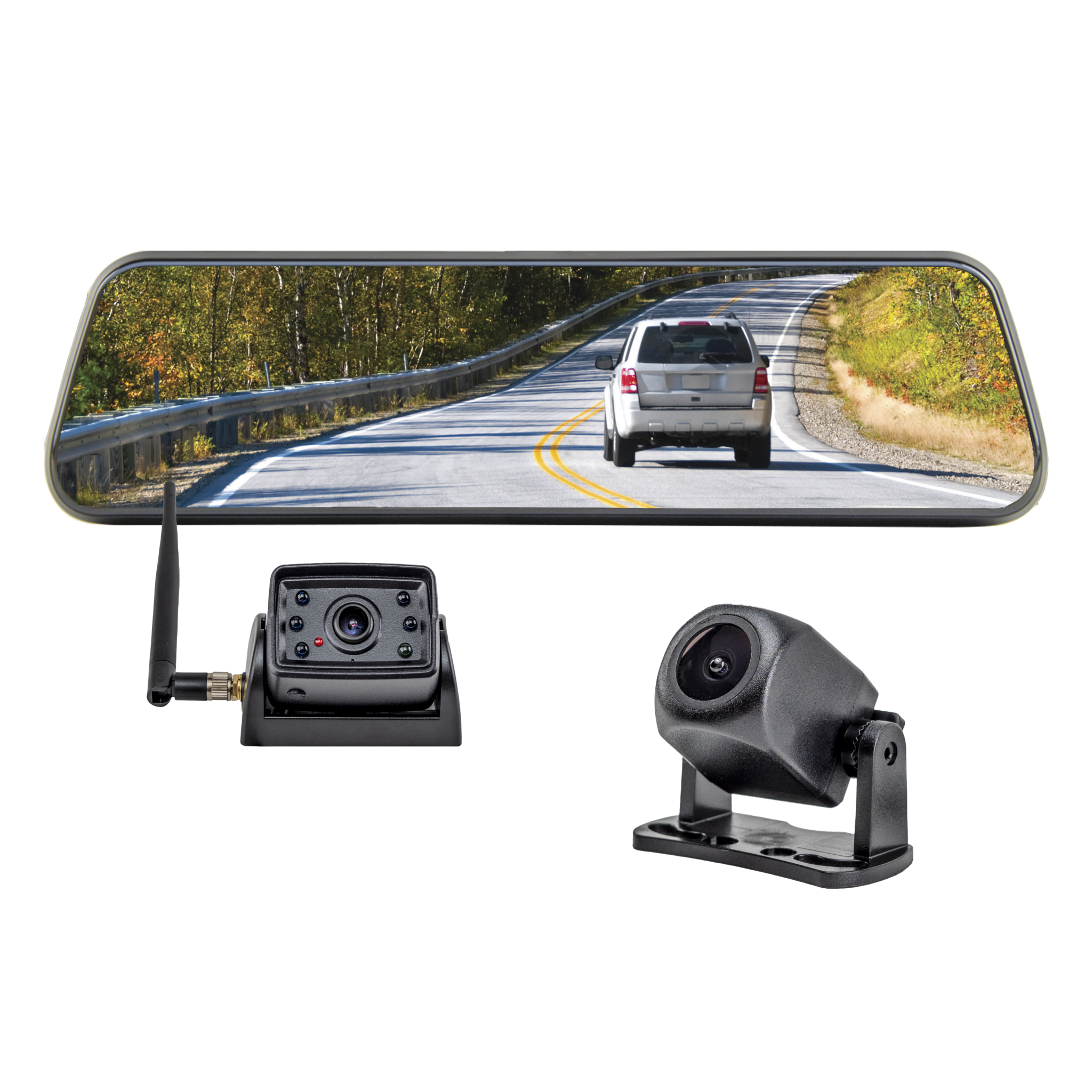

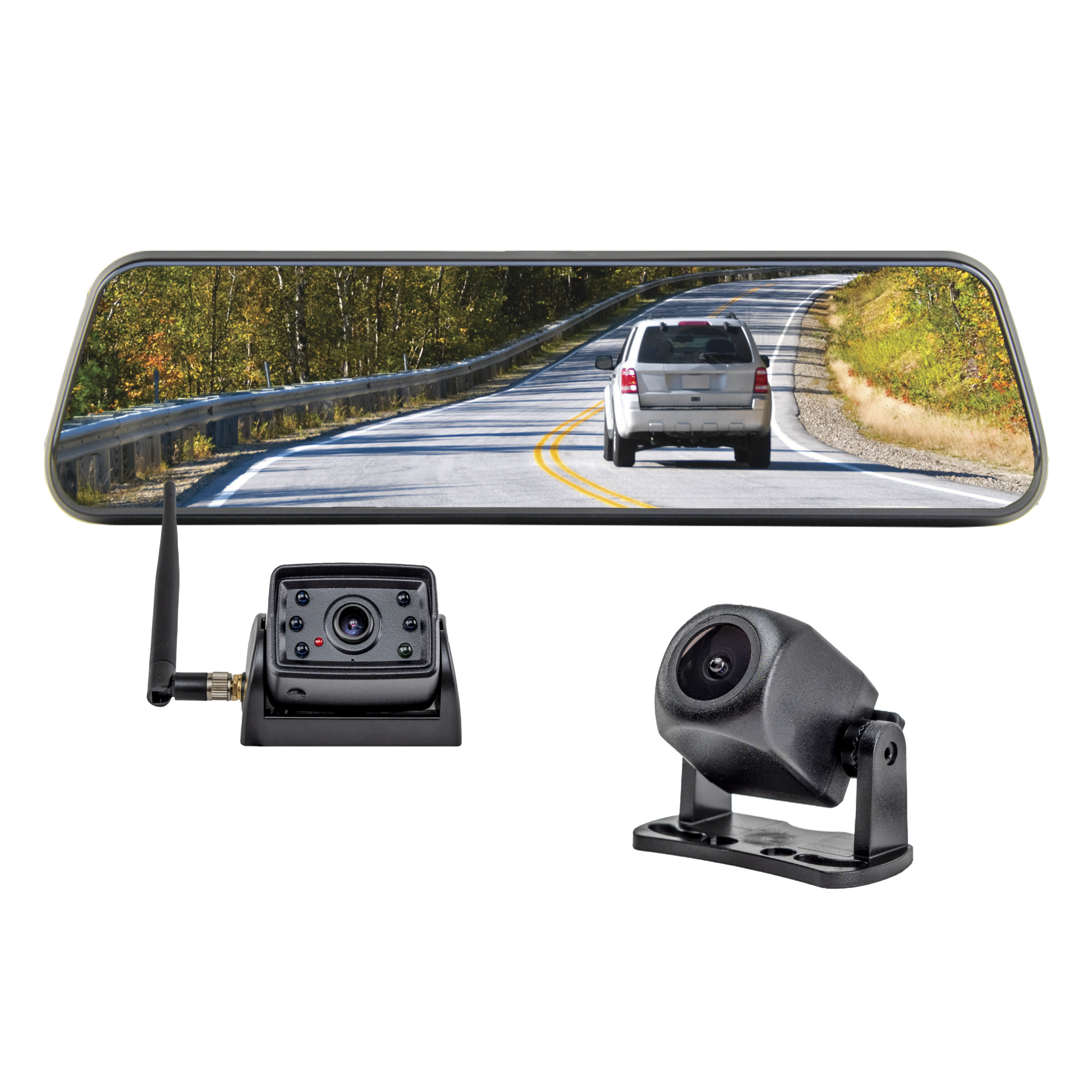

The Wireless Transparent Trailer® System eliminates blind spots and provides unobstructed visibility whether you’re pulling a trailer or not. The high-definition digital mirror replaces your traditional rearview mirror and provides two cameras: a universal camera and a wireless camera on the rear of your trailer.

While you are towing, use the trailer camera view to regain road visibility. While not towing, utilize the vehicle mounted camera to gain a wide angle field of view and improve your road safety. Switch between the two views with the click of a button. Take the stress out of towing with this industry leading product!

Part Number:

TRNS-2101

Category:

Categories: Mirrors, Vision System

MSRP

$879.95

Purchase Options

LEARN MORE AT

Includes Support by Crutchfield℠

Installation Instructions

2 Cameras: 1 Trailer Mounted, 1 Rear of Vehicle Mounted
IP68 Waterproof Rated Trailer Camera
Wide Angle View: 130° Trailer Camera, 170° Vehicle Camera
Wireless Trailer Camera, Wired Vehicle Camera
Night Vision with Both Cameras

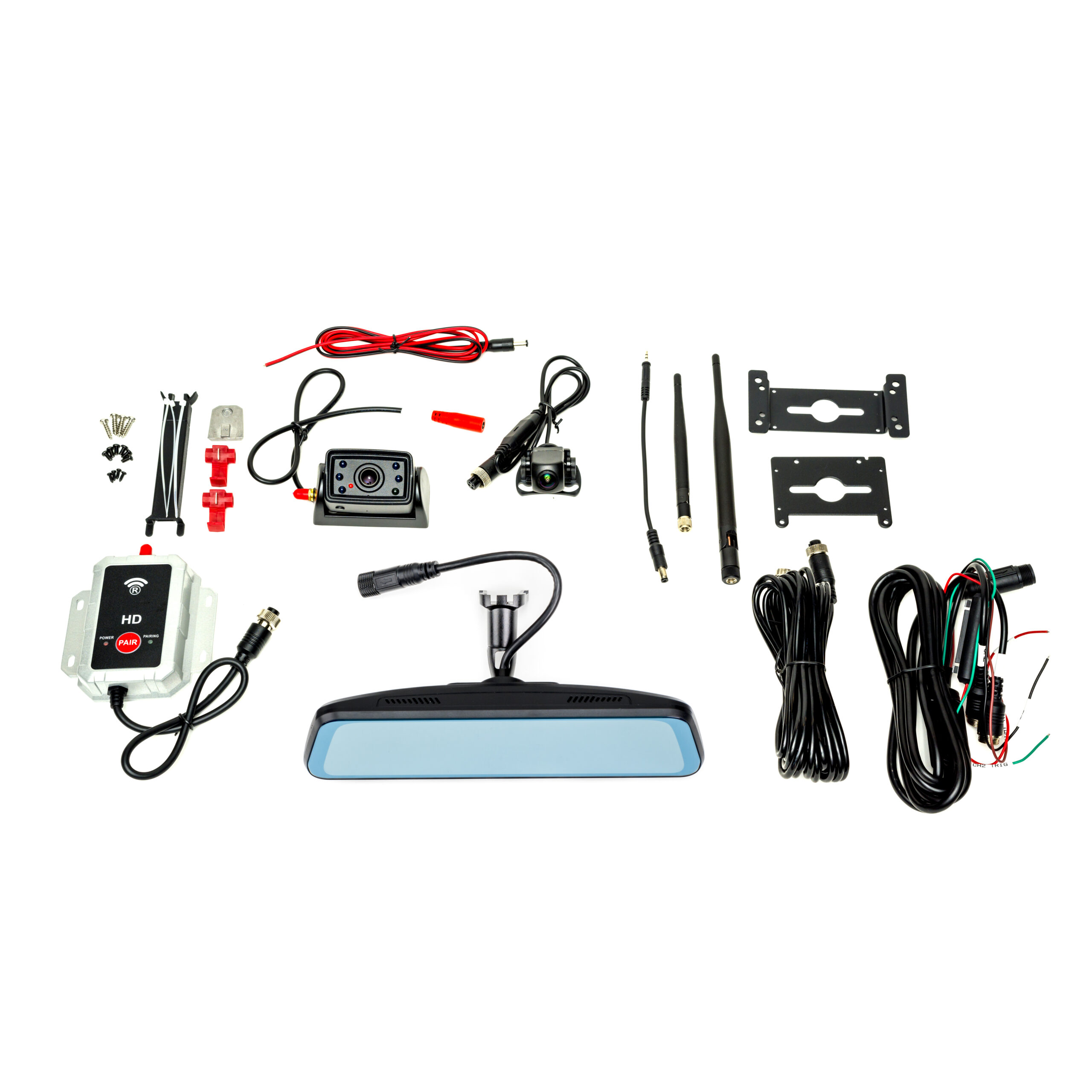

Various Included Mounting Brackets: Universal Bracket, Brackets for Furrion® and Voyager® pre-wired trailers

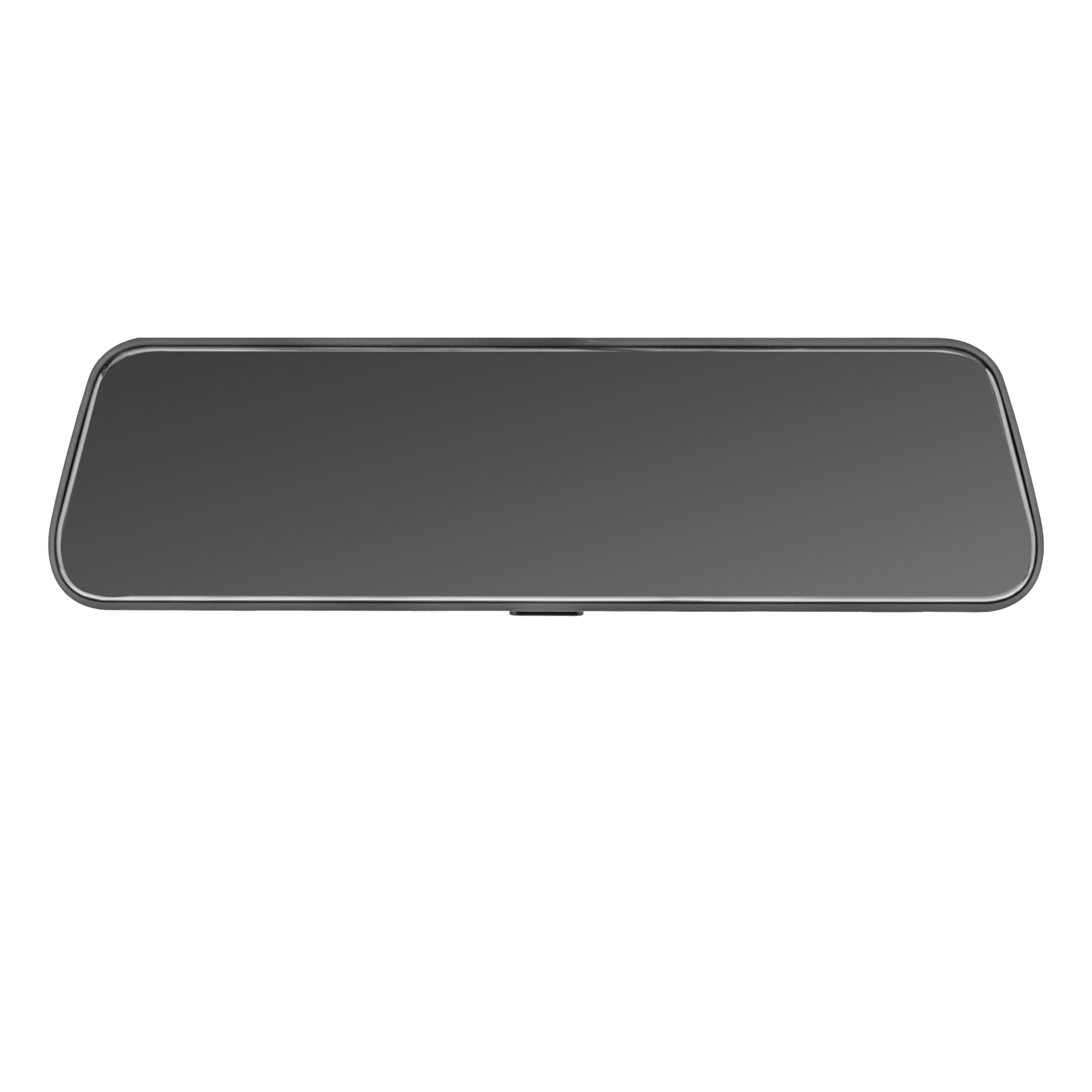

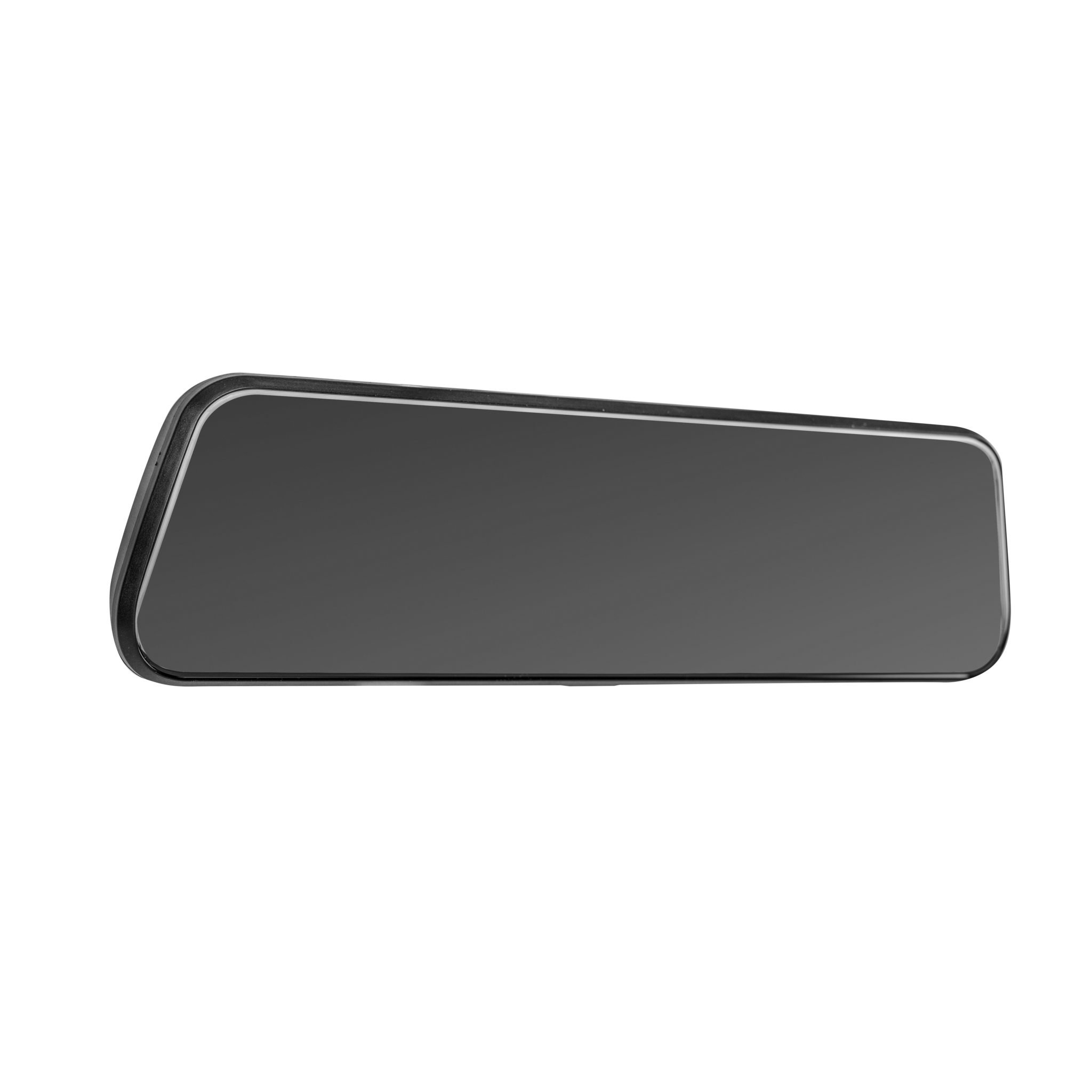

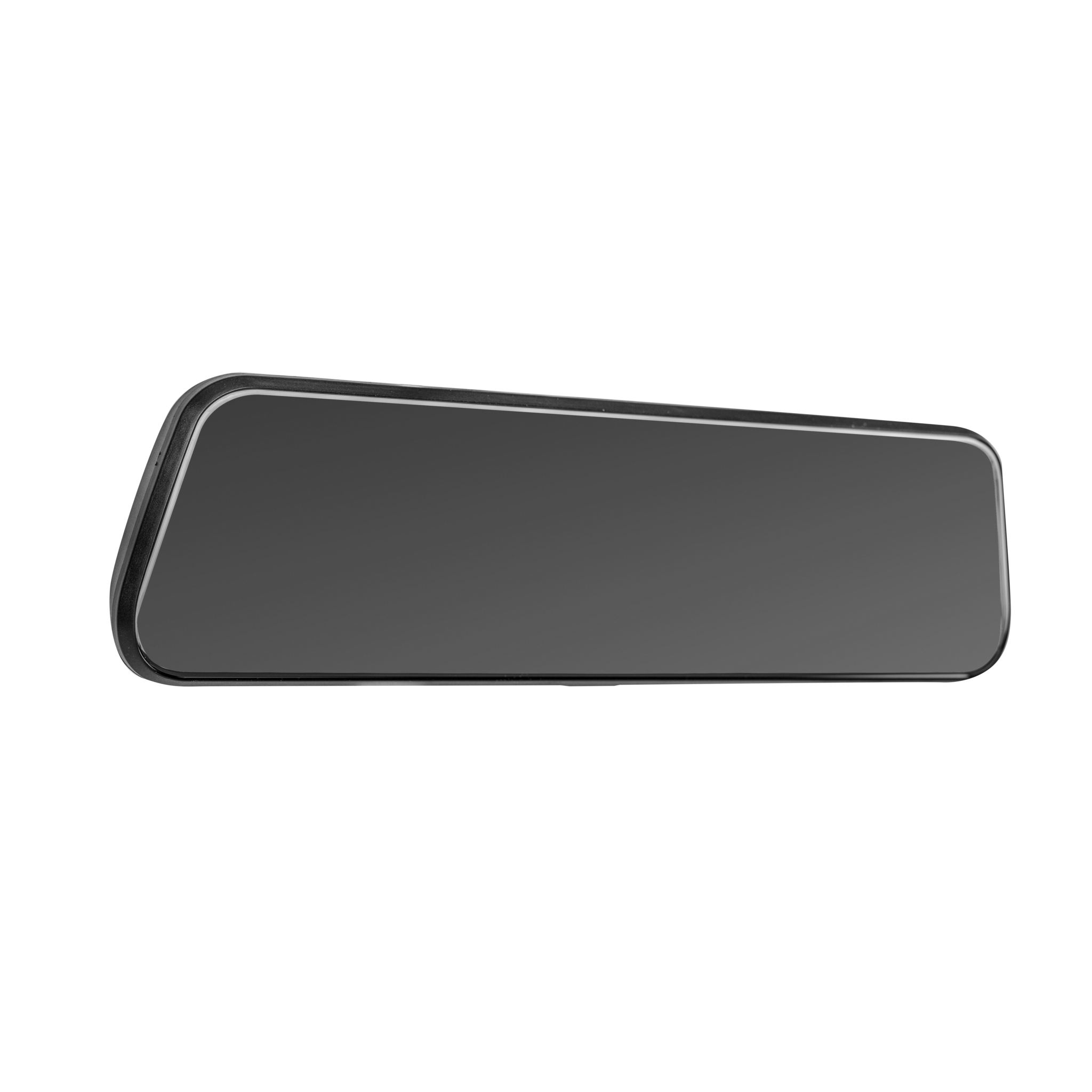

MIRROR

Working Voltage	DC 12V/24V
Working Temperature	-20°C to 70°C
Storage Temperature	-30°C to 80°C
Display Brightness	800cd/m2
Screen Size	9.66 inch
Resolution	1080p
Aspect Ratio	320*1980
Camera Connection Type	Wired (Max 2 cameras)
Video Format Input	AHD/CVBS
DVR	No
Built in speaker	No
Video trigger input triggers	Yes / Input 1&2

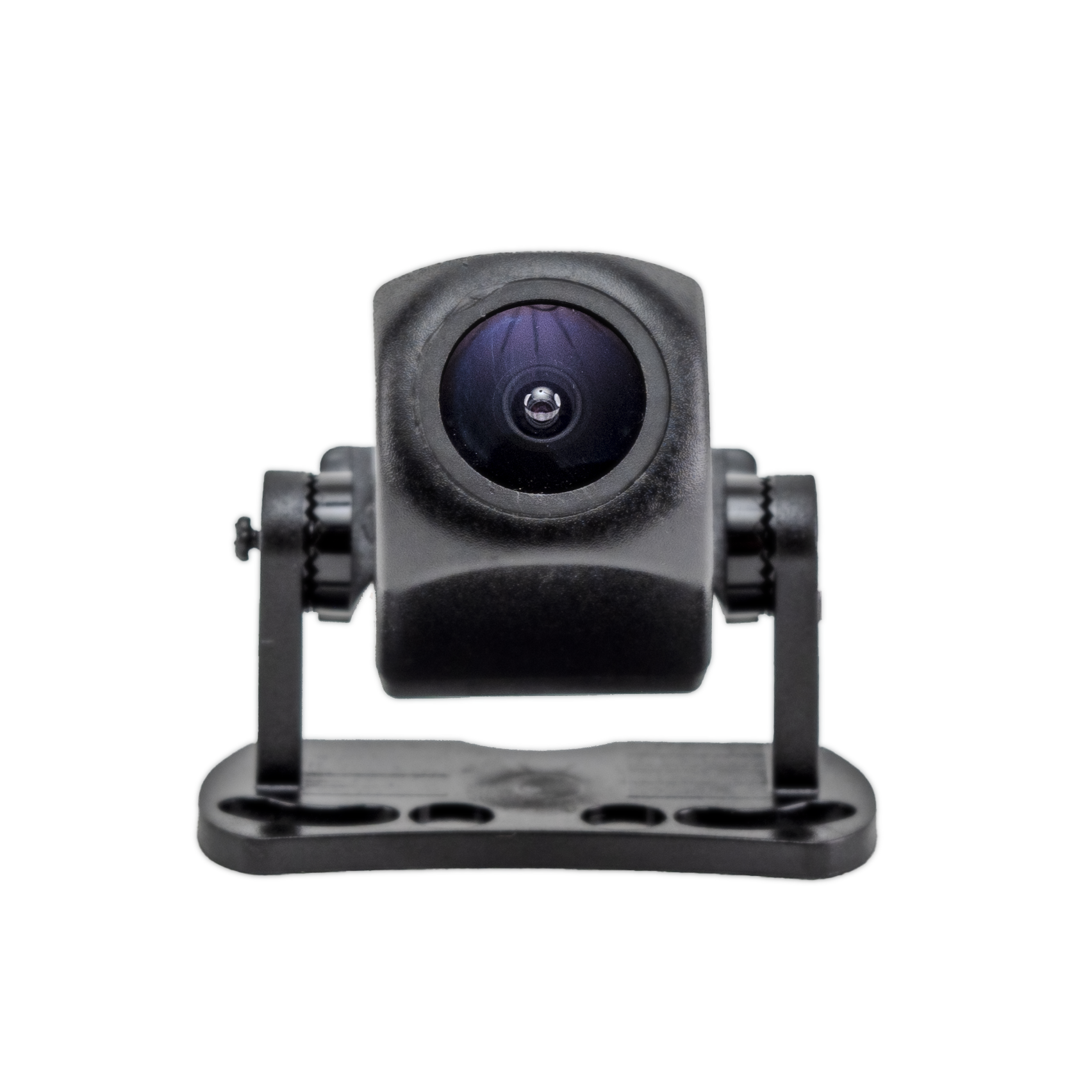

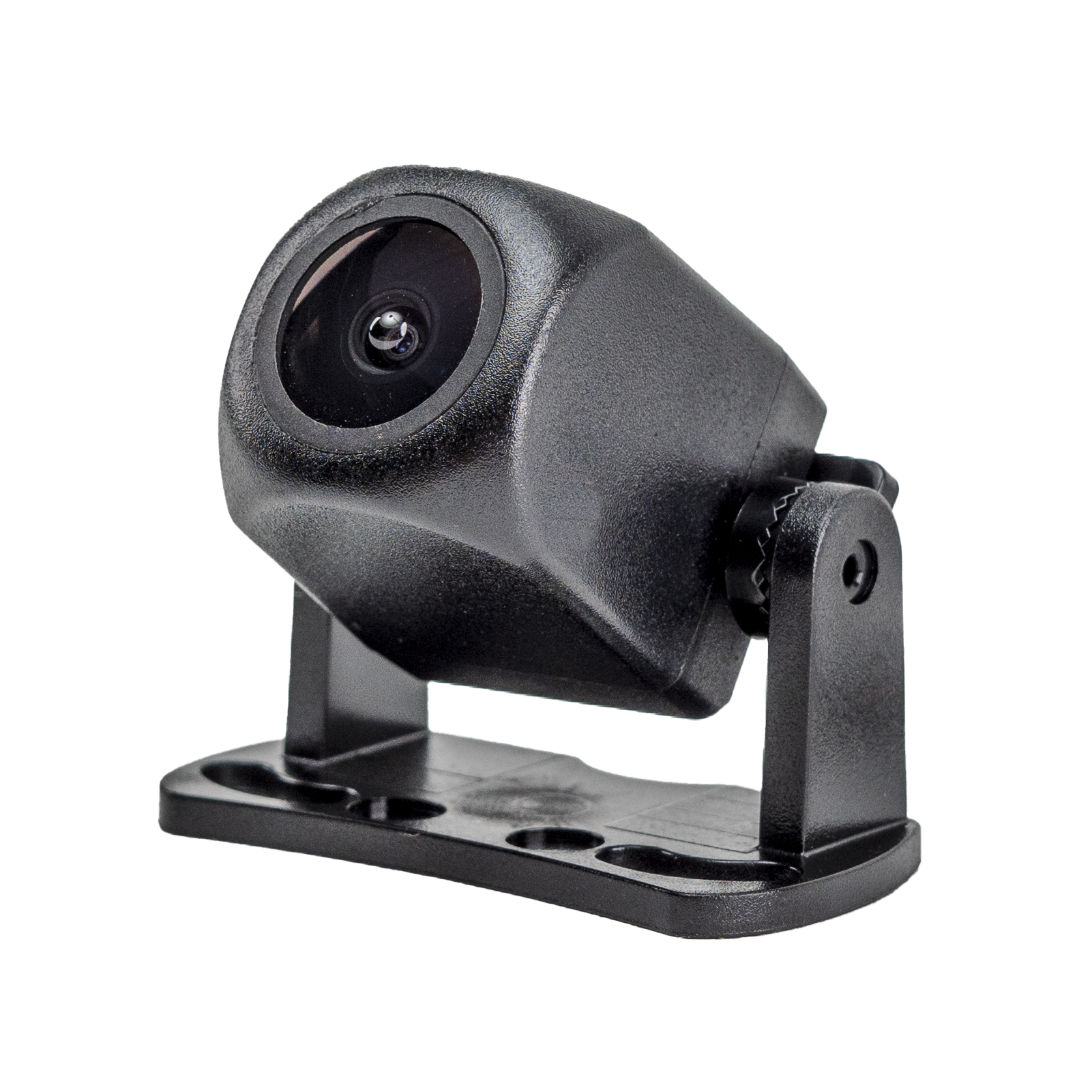

VEHICLE CAMERA

Working Voltage	6V – 16V
Rated Voltage / Current	<1W
Working Temperature	-10°C to 60°C
Storage Temperature	-30c to 70c
Connection Type	Wired 4-pin avaitor
Mounting Locations	Rear
Mounting Type	Mounting foot
Field of View (H) (V)	170°(H), 130°(V)
Low Light Night Vision	Yes 0.1lux
Lens Size	18.5*L22mm
Built in IRs	No
Waterproof Rating	IP68
Video Format Output	AHD
Resolution	1080p

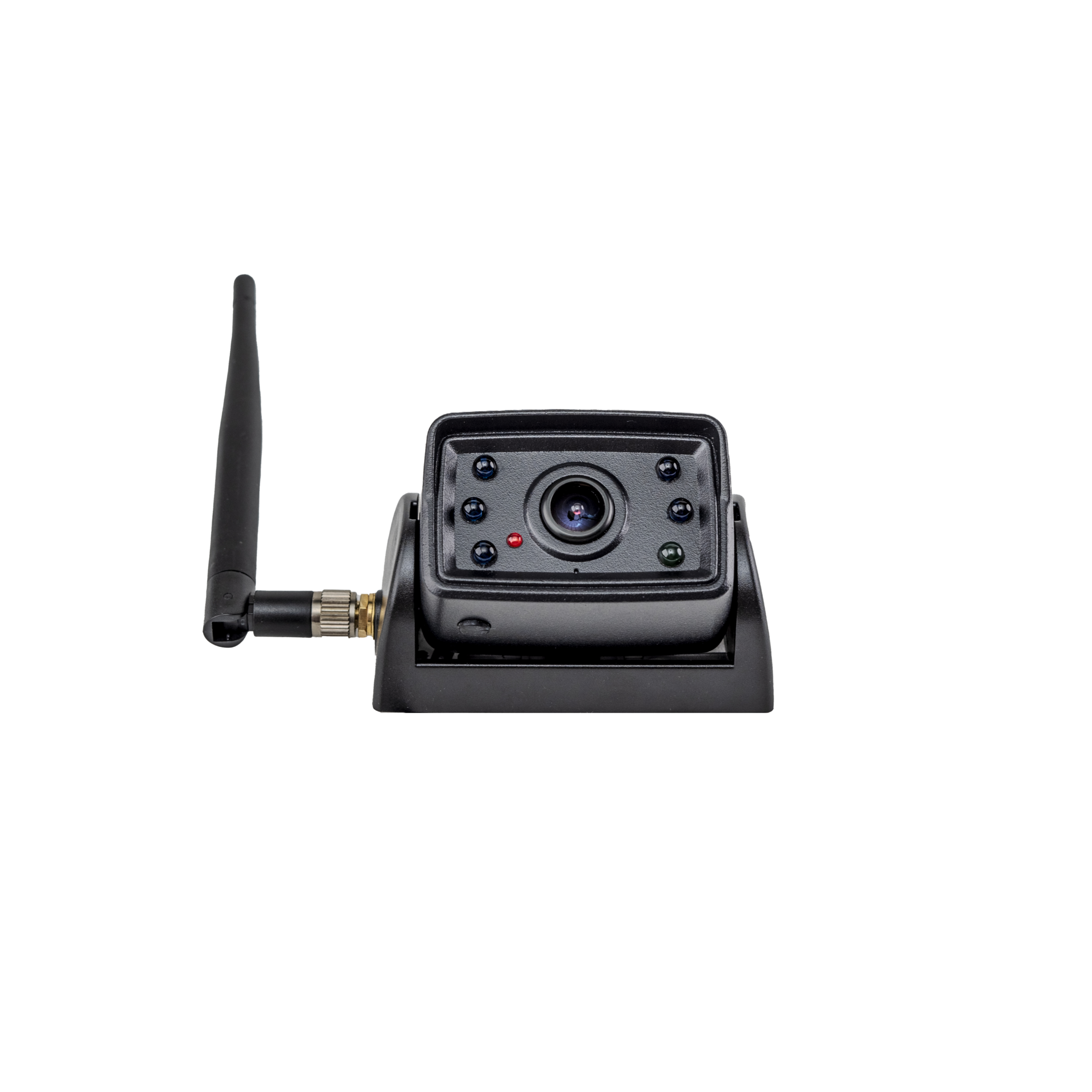

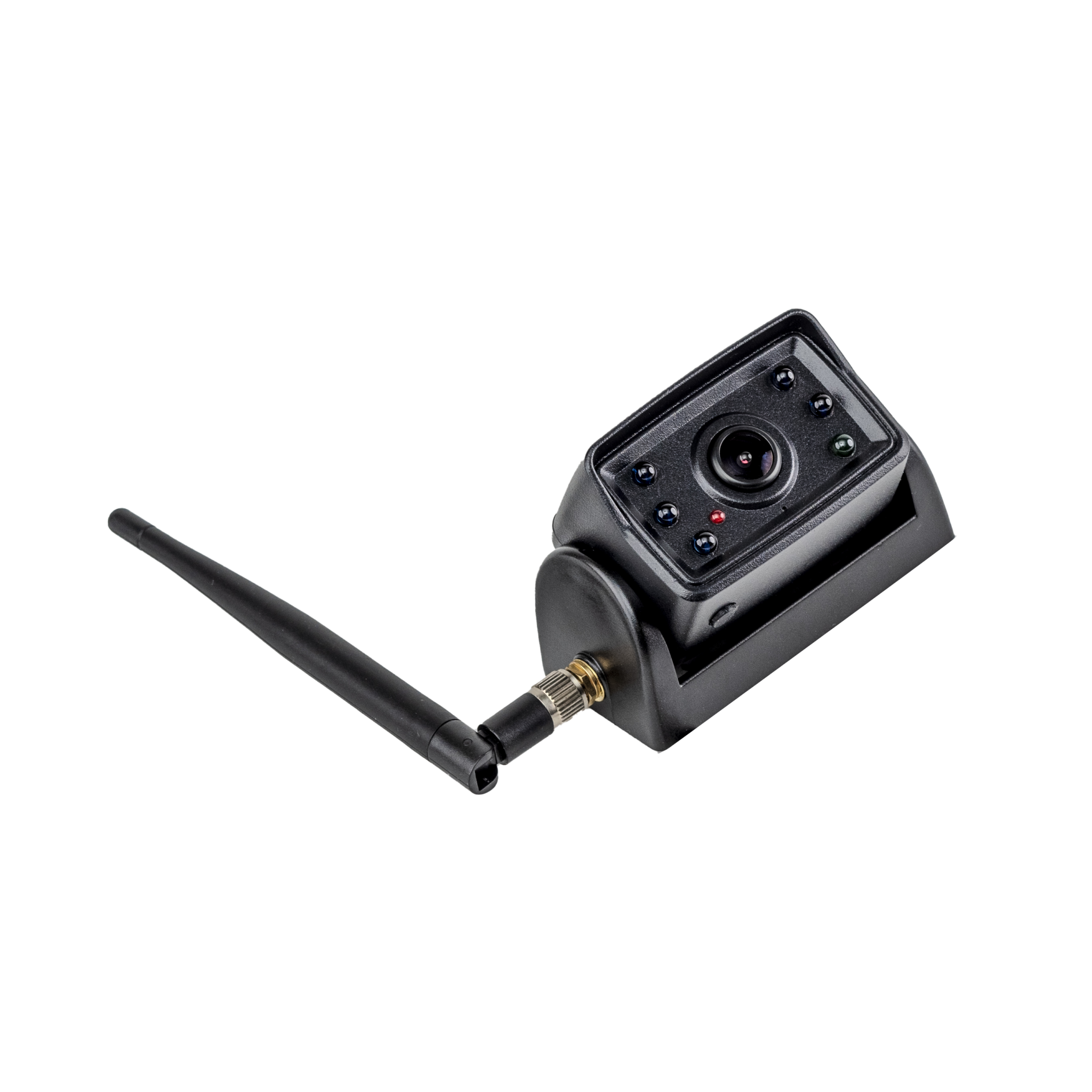

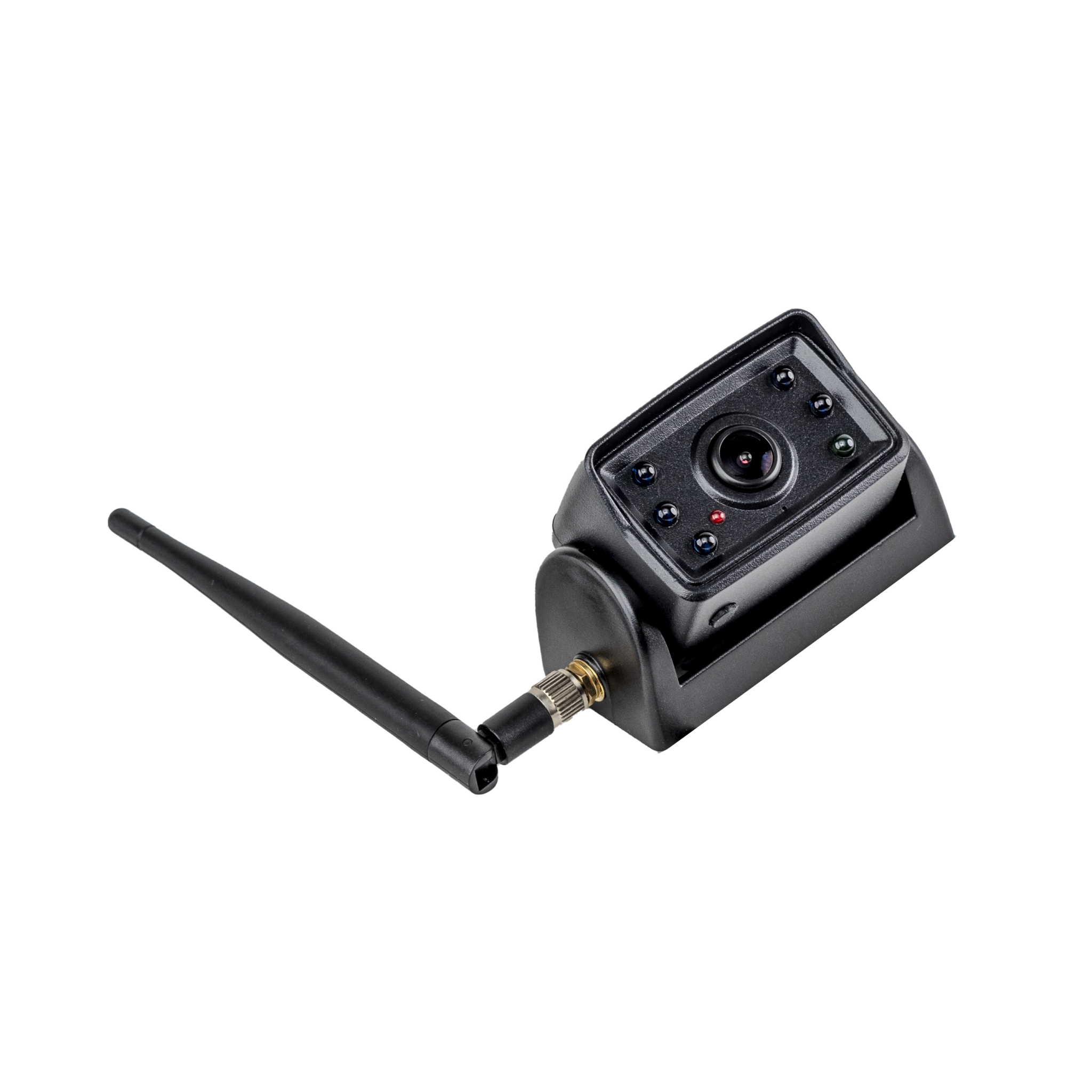

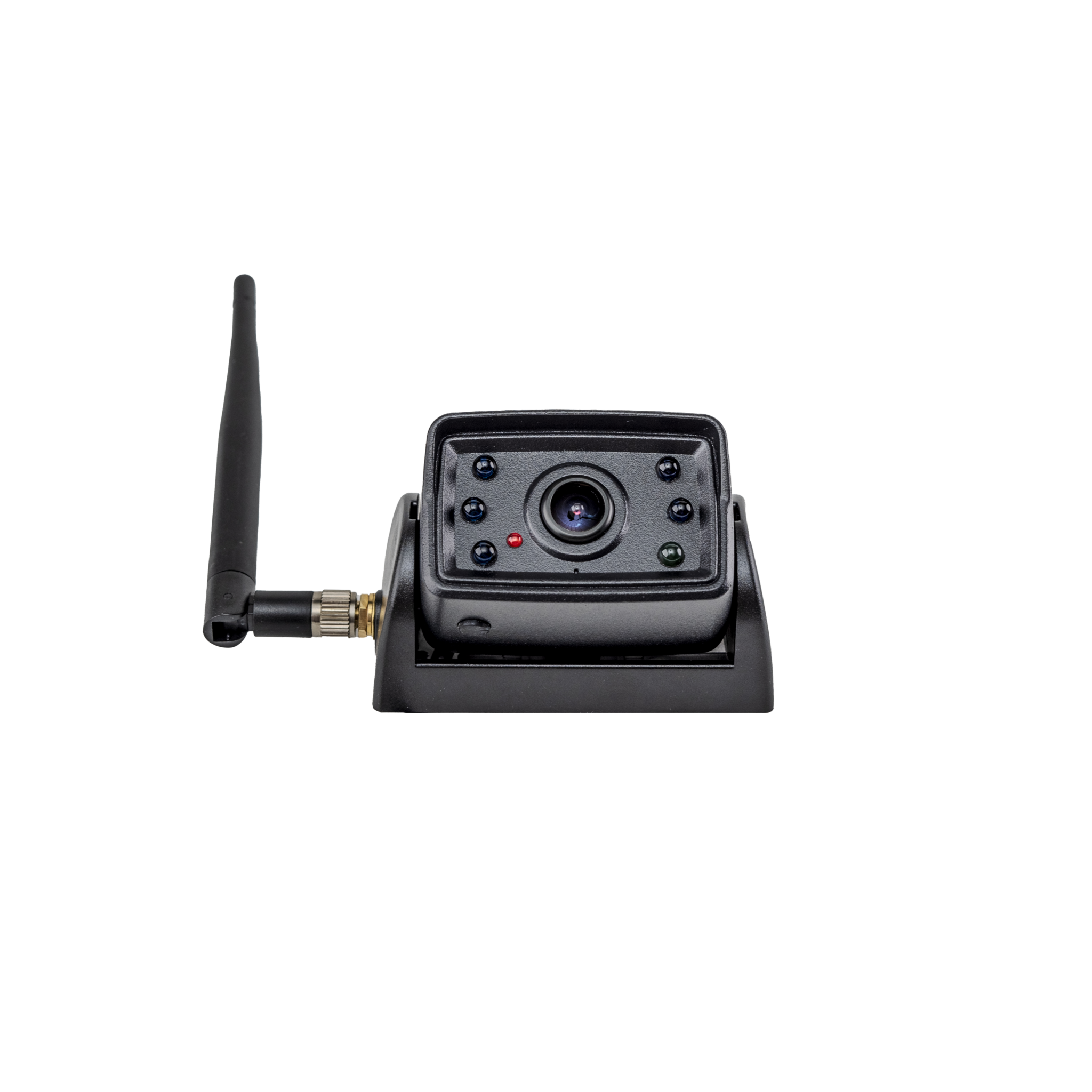

WIRELESS TRAILER CAMERA

Working Voltage	DC12V & DC24V
Working Temperature	-20℃ to 70℃
Storage Temperature	-30℃〜80℃
Connection Type	wireless
Mounting Locations	Rear
Mounting Type	Multiple bracket types for surface mount
Field of View (H) (V)	110º, 80º
Low Light Night Vision	0.2 LUX
Lens Size	22.6mm
Built in IRs	Yes
Waterproof Rating	IP68
Video Format Output	AHD 2.4G
Resolution	1936H×1096V

Universal
