Wireless Transparent Trailer® System for RAM 1500 (2009-2018) & Heavy Duty (2010-Current)

The Wireless Transparent Trailer® System eliminates blind spots and provides unobstructed visibility whether you’re pulling a trailer or not.  The high-definition digital mirror replaces your traditional rearview mirror and provides two cameras: a truck-specific third brake light camera and a wireless camera on the rear of your trailer. Switch between the two views with the click of a button.  Take the stress out of towing with this industry leading product!
Home Shop Mirrors Wireless Transparent Trailer® System for RAM 1500 (2009-2018) & Heavy Duty (2010-Current)

0

User feedback

Wireless Transparent Trailer® System for RAM 1500 (2009-2018) & Heavy Duty (2010-Current)

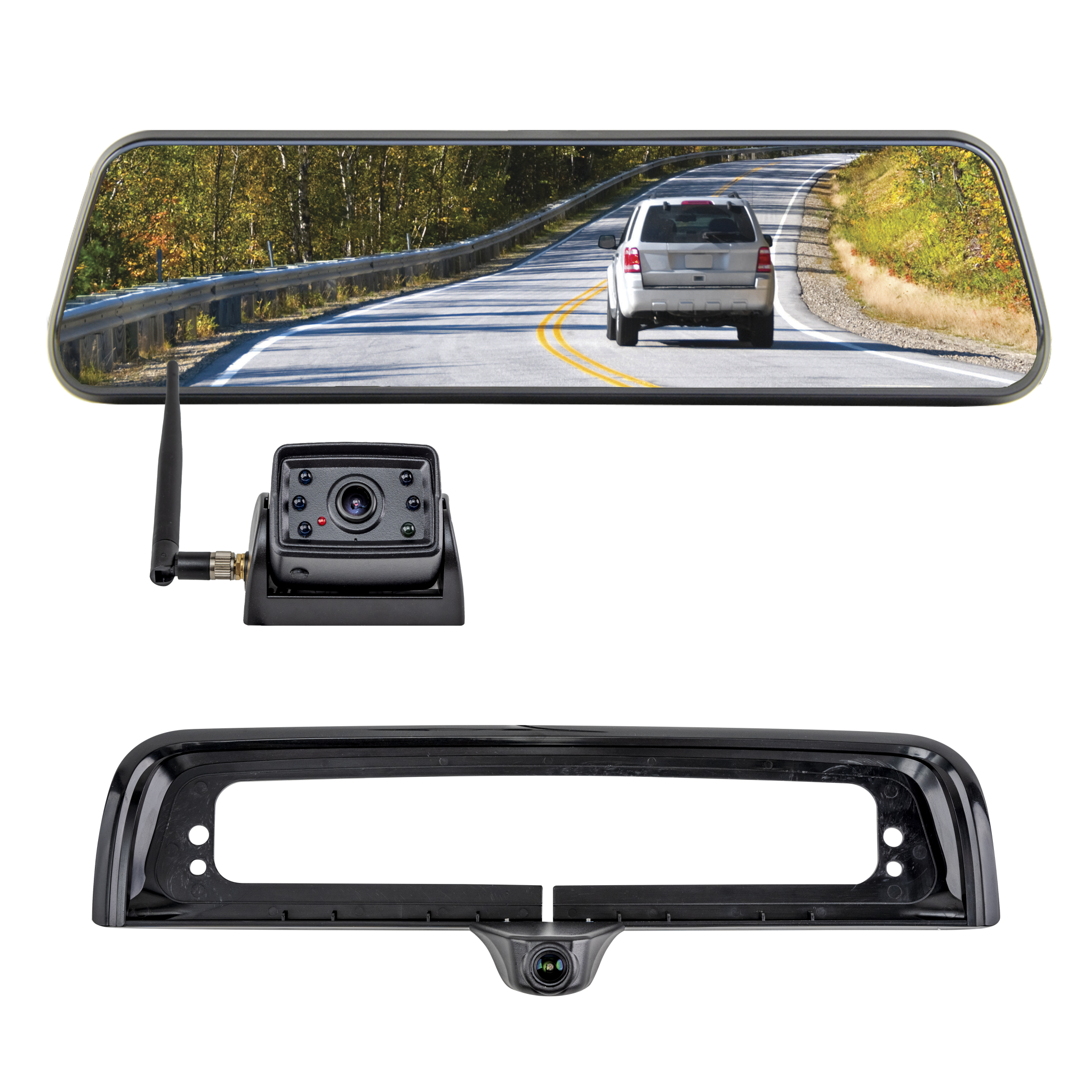

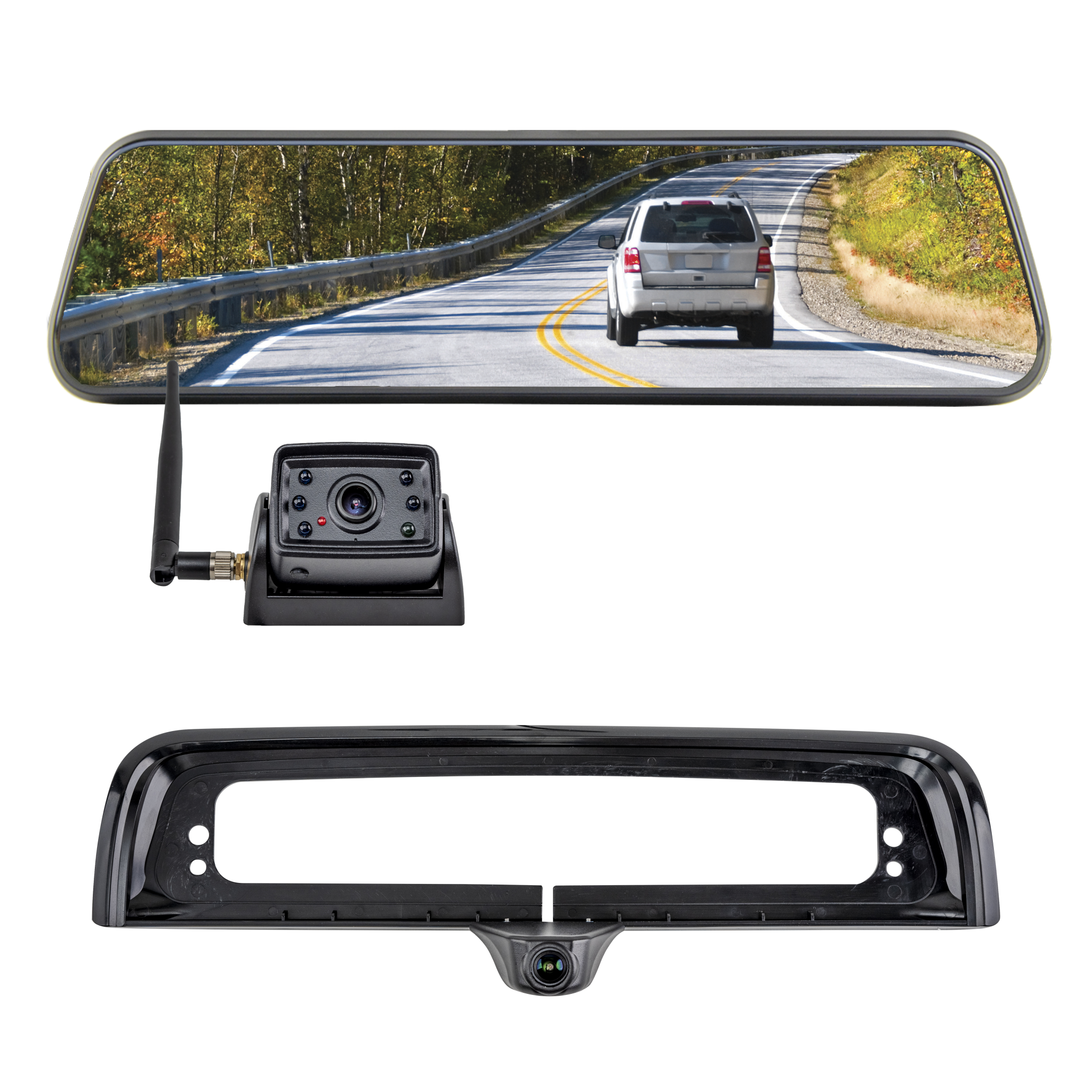

The Wireless Transparent Trailer® System eliminates blind spots and provides unobstructed visibility whether you’re pulling a trailer or not.  The high-definition digital mirror replaces your traditional rearview mirror and provides two cameras: a truck-specific third brake light camera and a wireless camera on the rear of your trailer. Switch between the two views with the click of a button.  Take the stress out of towing with this industry leading product!

Part Number:

TRNS-2170

Category:

Categories: ,

MSRP

$879.95

Purchase Options

LEARN MORE AT

Includes Support by Crutchfield℠

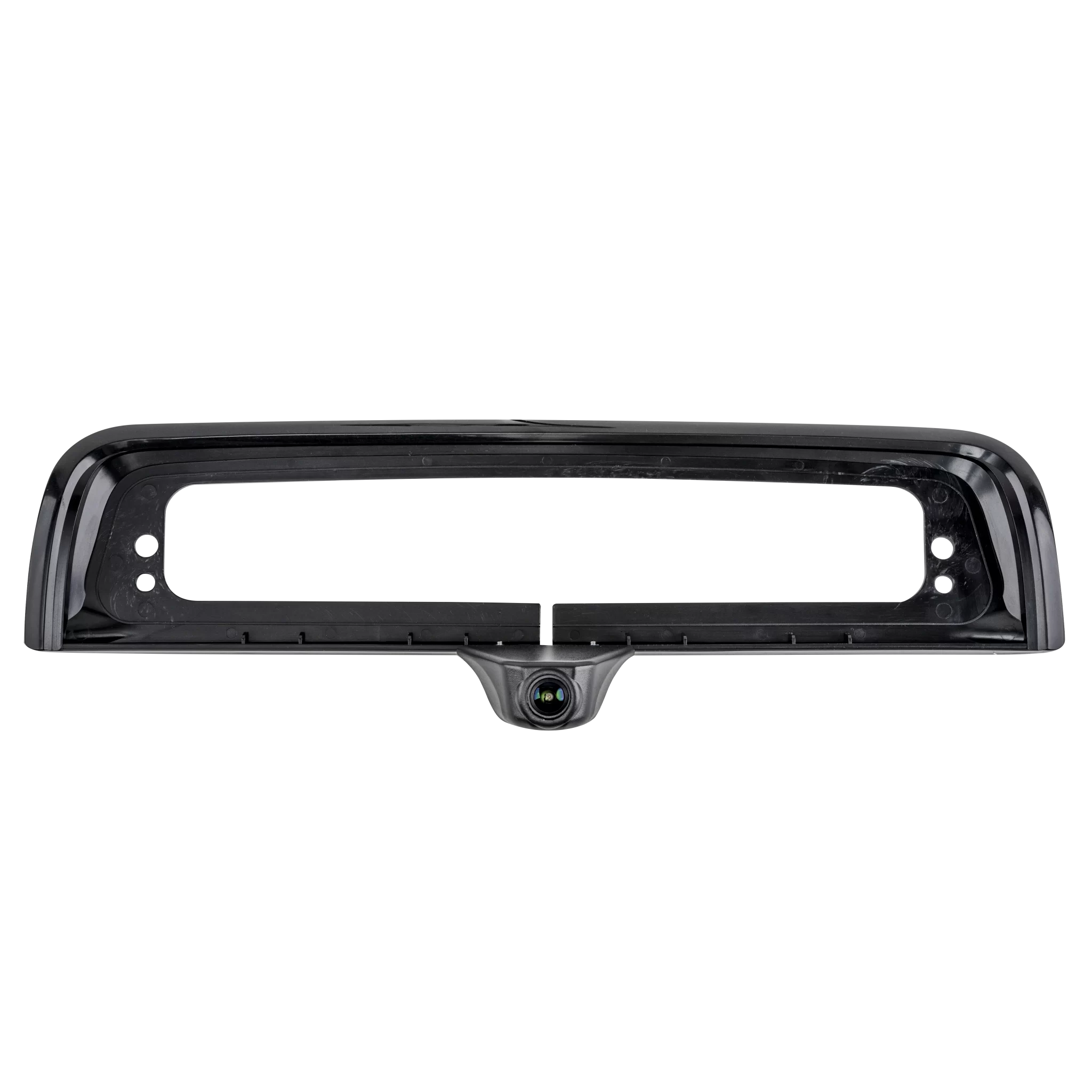

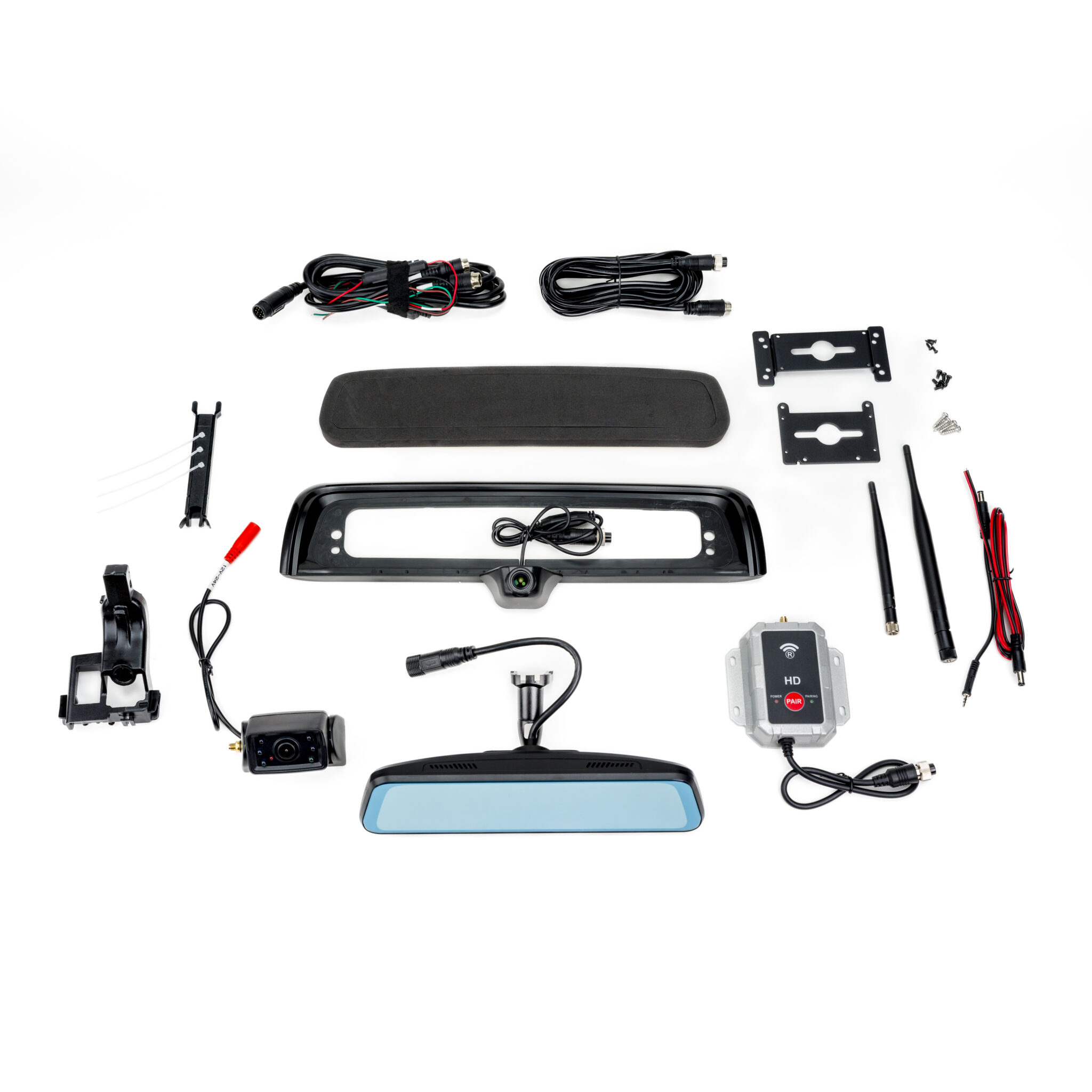

  • Truck specific third brake light camera bezel
  • 2 cameras

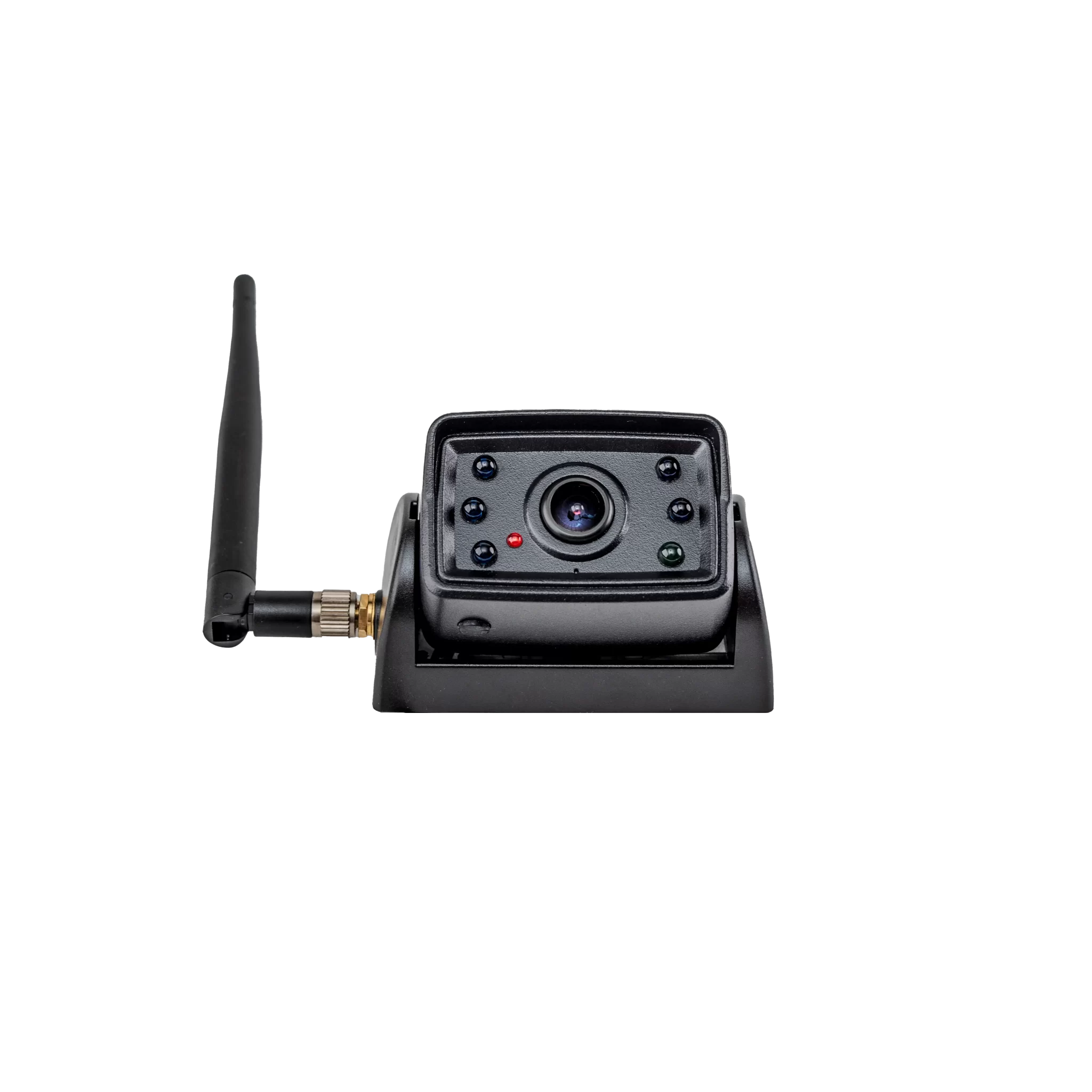

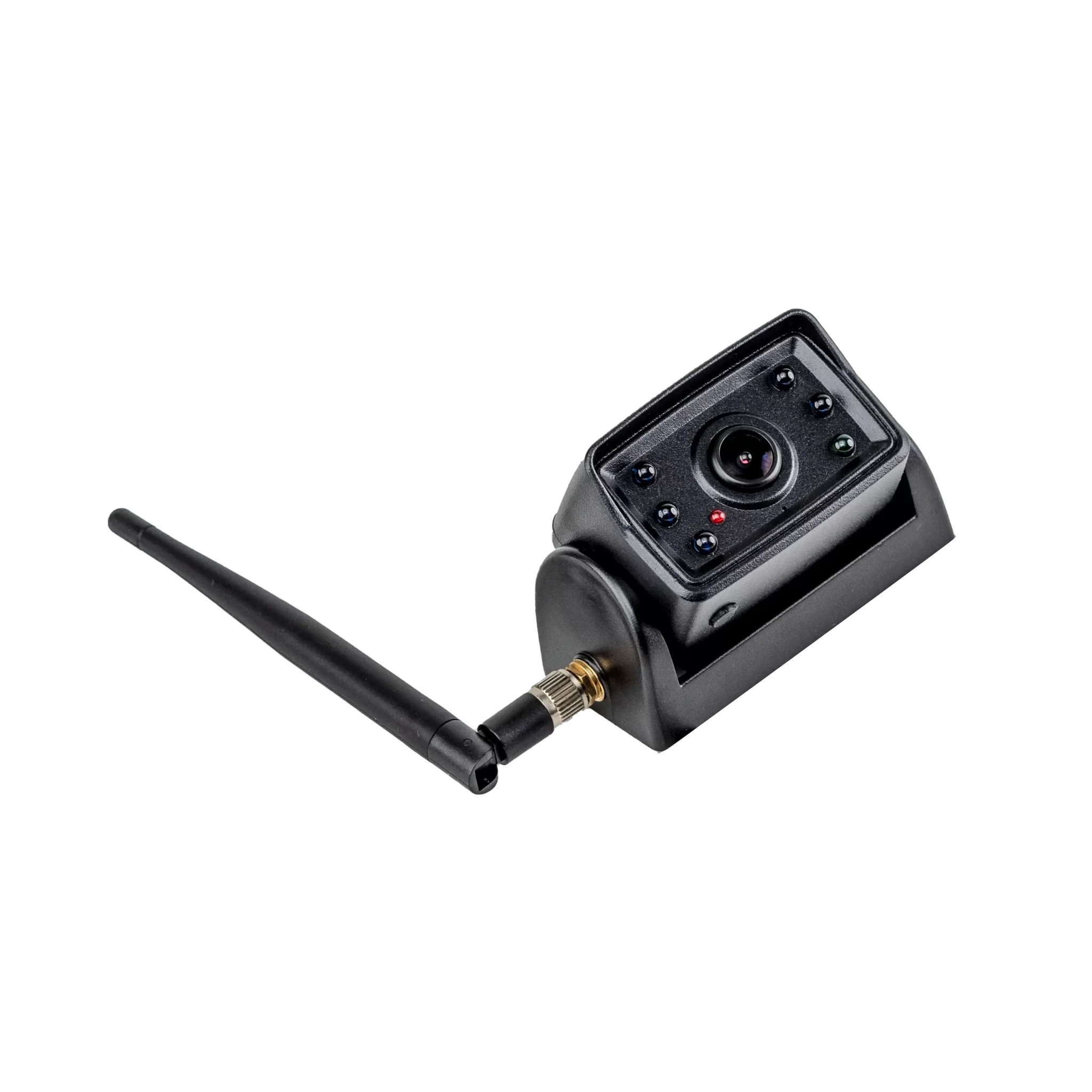

  • Wireless IP68 HD infrared trailer camera  with 130º viewing angle

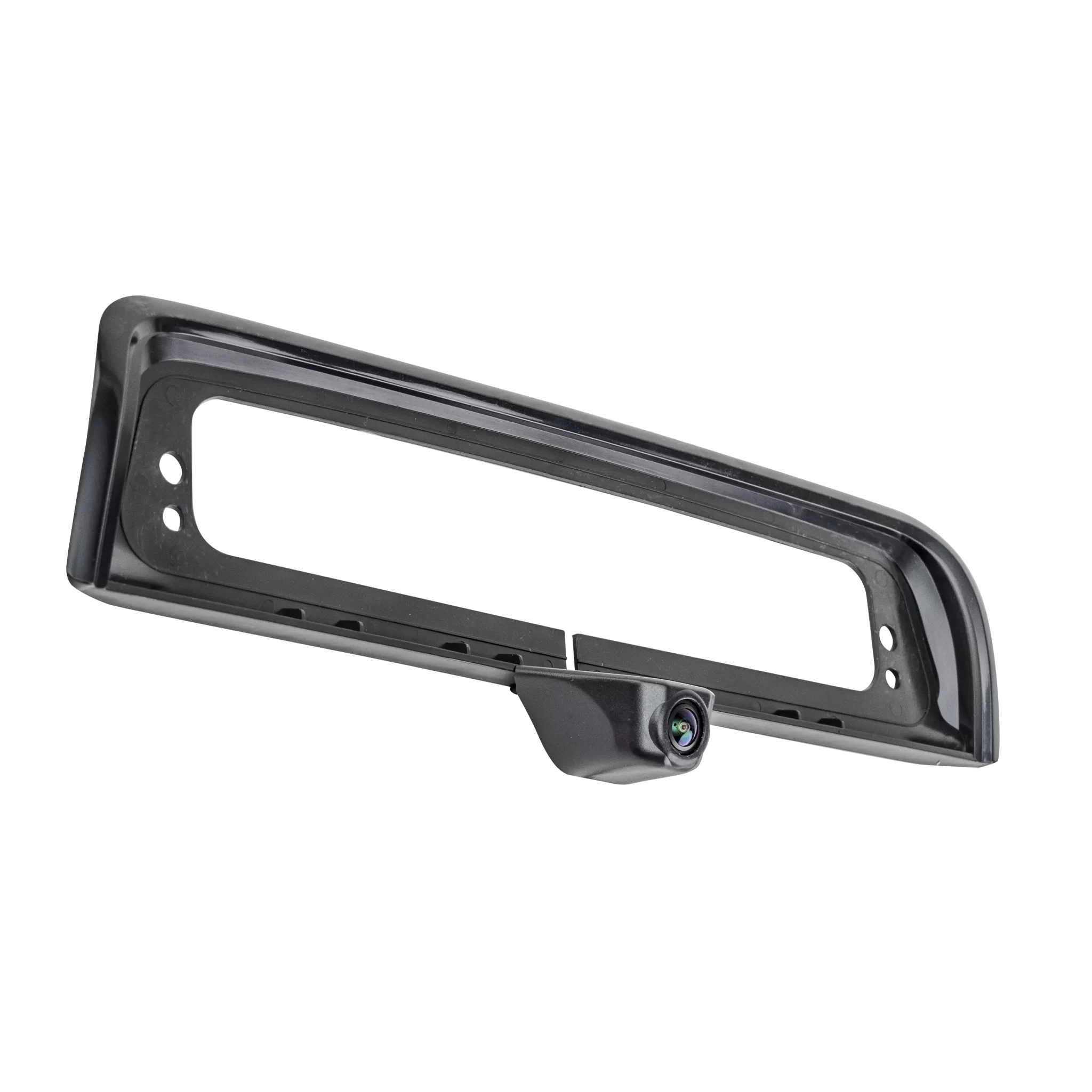

  • Truck-specific bezel camera with a 170º viewing angle
  • Includes mounting bracket for Furrion® and Voyager® pre-wired trailers

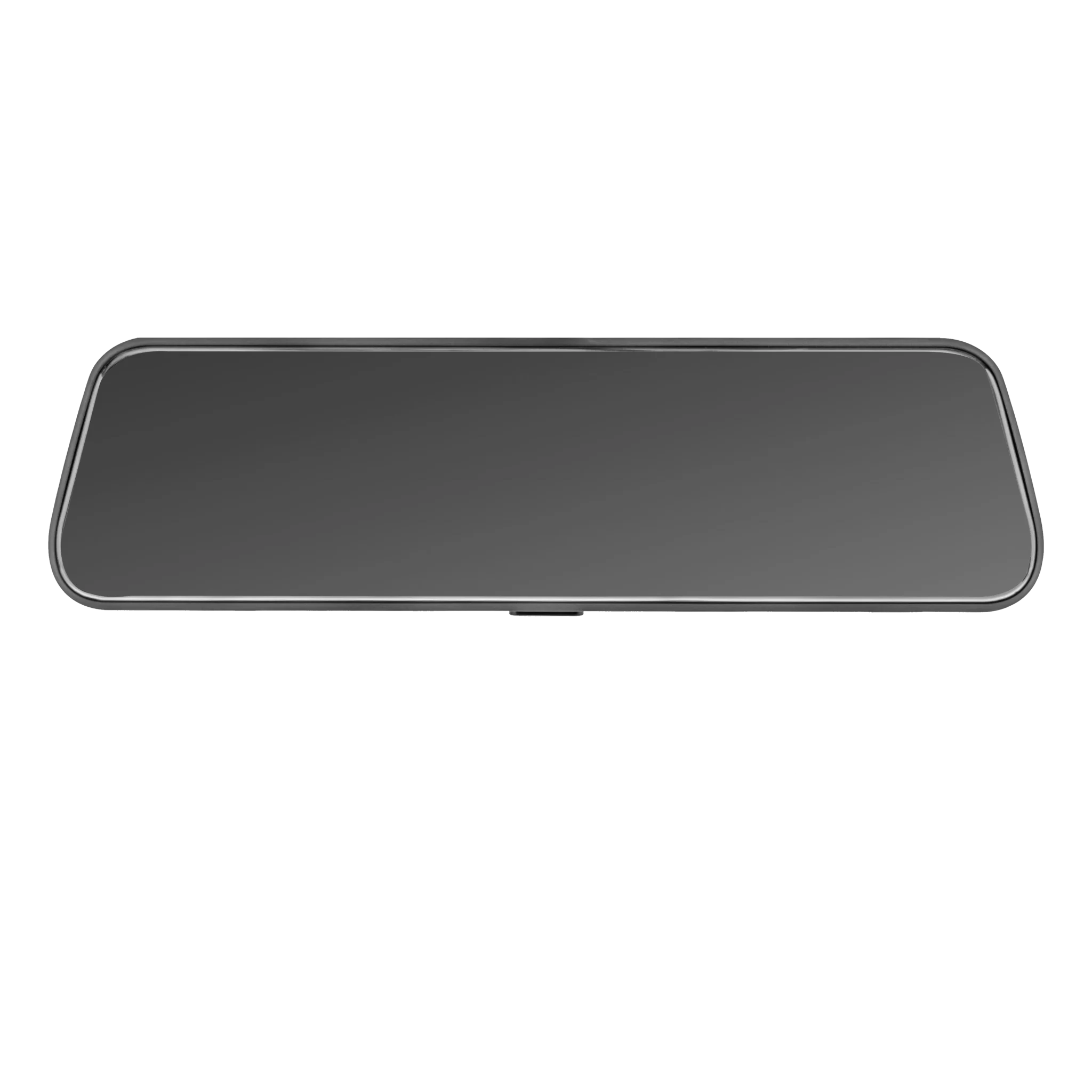

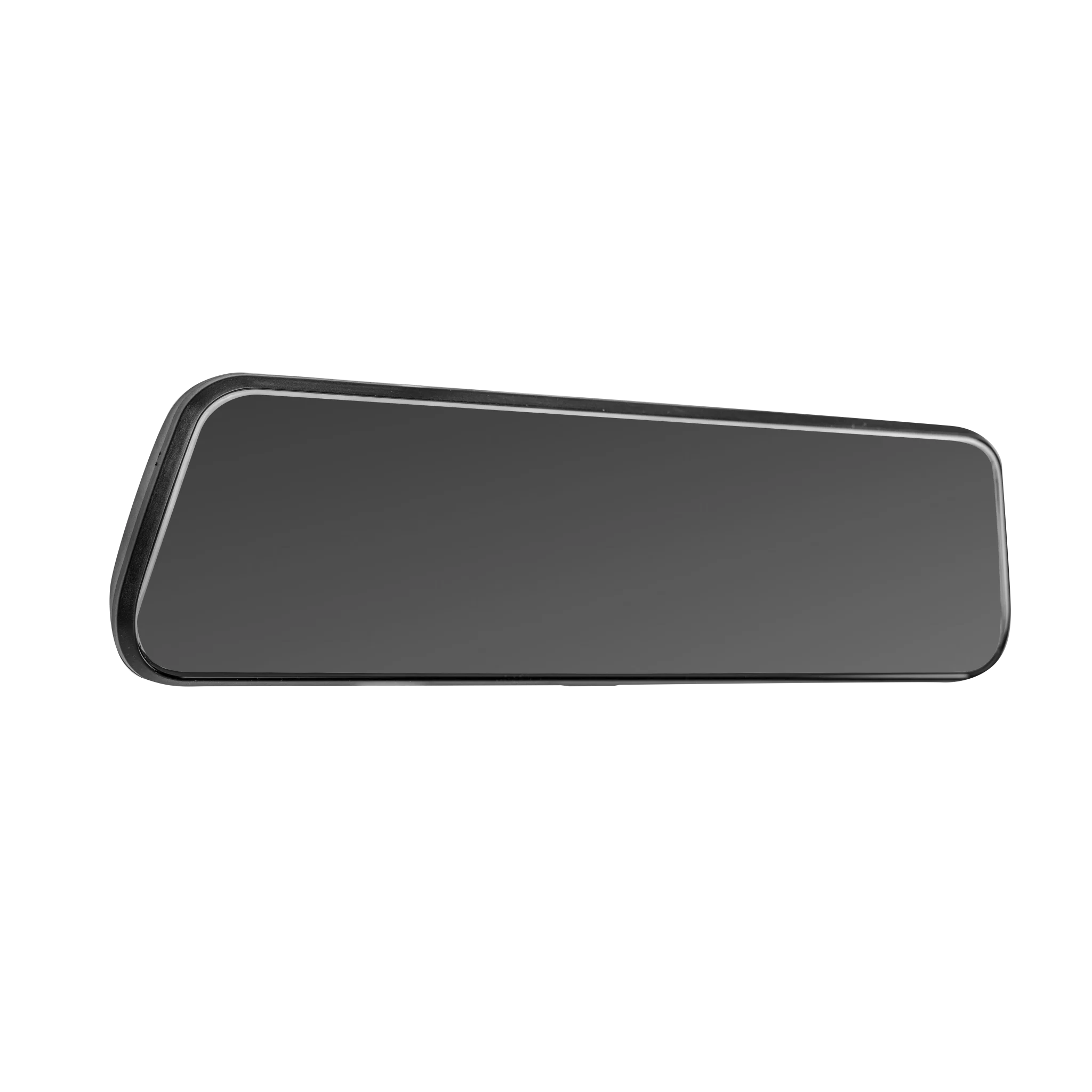

MIRROR

  • Working Voltage DC 12V/24V
  • Rated Voltage / Current
  • Power Consumption
  • Working Temperature -20°C to 70°C
  • Storage Temperature -30°C to 80°C
  • Display Brightness 800cd/m2
  • Screen Size 9.66 inch
  • Resolution 1080p
  • Aspect Ratio 320*1980
  • Camera Connection Type Wired (Max 2 cameras)
  • Video Format Input AHD/CVBS
  • DVR Built-in Y/N No
  • 2 Video trigger input triggers



TRUCK CAMERA

  • Working Voltage 6V – 16V
  • Rated Voltage / Current <1W
  • Working Temperature -10°C to 60°C
  • Storage Temperature -30c to 70c
  • Connection Type wired 4-pin avaitor
  • Mounting Locations thrid brake light bezel
  • Mounting Type rear
  • Field of View (H) (V) 170°(H), 130°(V)
  • Low Light Night Vision yes 0.1lux
  • Lens Size 18.5*L22mm
  • Waterproof Rating IP68
  • Video Format Output AHD
  • Resolution 1080p



WIRELESS CAMERA

  • Working Voltage DC12V & DC24V
  • Rated Voltage / Current
  • Working Temperature -20℃ to 70℃
  • Storage Temperature -30℃〜80℃
  • Connection Type wireless
  • Mounting Locations Rear
  • Mounting Type Multiply bracket types for surface mount
  • Field of View (H) (V) 110º, 80º
  • Low Light Night Vision 0.2 LUX
  • Lens Size 22.6mm
  • Built in IRs
  • Waterproof Rating IP68
  • Video Format Output AHD 2.4G
  • Resolution 1936H×1096V
  • RAM 1500 (2009-2018) & Heavy Duty (2010-Current)
