Radar Blindspot System with Cross Traffic Detection

This retrofit Radar Blind Spot monitoring and detection system not only works like an original equipment-based system, it works better! Newly updated and improved from our original system, Brandmotion’s radar-based system works with any vehicle with plastic fascias (all bumpers except metal bumpers). This system is based on automaker-validated original equipment components, resulting in true OEM-like fit, finish, and performance. Brandmotion offers the first aftermarket solution to include cross-traffic detection, as well as the first system to eliminate 95% of false triggers common in other systems. Instead of reading the CAN, the system uses the radar (more reliable than GPS) to accurately obtain vehicle speed and is compatible with all vehicle makes and models with plastic bumpers.
Home Shop Proximity Sensors Radar Blindspot System with Cross Traffic Detection

0

User feedback

Radar Blindspot System with Cross Traffic Detection

This retrofit Radar Blind Spot monitoring and detection system not only works like an original equipment-based system, it works better! Newly updated and improved from our original system, Brandmotion’s radar-based system works with any vehicle with plastic fascias (all bumpers except metal bumpers). This system is based on automaker-validated original equipment components, resulting in true OEM-like fit, finish, and performance. Brandmotion offers the first aftermarket solution to include cross-traffic detection, as well as the first system to eliminate 95% of false triggers common in other systems. Instead of reading the CAN, the system uses the radar (more reliable than GPS) to accurately obtain vehicle speed and is compatible with all vehicle makes and models with plastic bumpers.

Part Number:

RDBS-1600

Category:

Category:

MSRP

$799.95

Purchase Options

LEARN MORE AT

Includes Support by Crutchfield℠

  • Integrates Seamlessly Into Your Vehicle
  • Adjust volume on the audible buzzer by using the Hi-Low-Off Switch
  • Blind Spot Detection(BSD) – Illuminates HMI when approaching vehicle is 27 feet behind the radar (when passing or being passed at less than 18 MPH difference in speed)
  • Lane Change Assist(LCA) – Illuminates HMI when approaching vehicle is 290 feet behind the radar (when passing or being passed at more than 18 MPH difference in speed)
  • Intelligent System Utilizes Radar To Determine Vehicle Speed
  • Blind Spot Monitoring At Speeds Over 18 Mph
  • Smart System Processing Minimizing False Triggers
  • High Accuracy Sensors Can Detect Moving Objects of all sizes
  • Cross Traffic Functionality Immediately Activates In Reverse

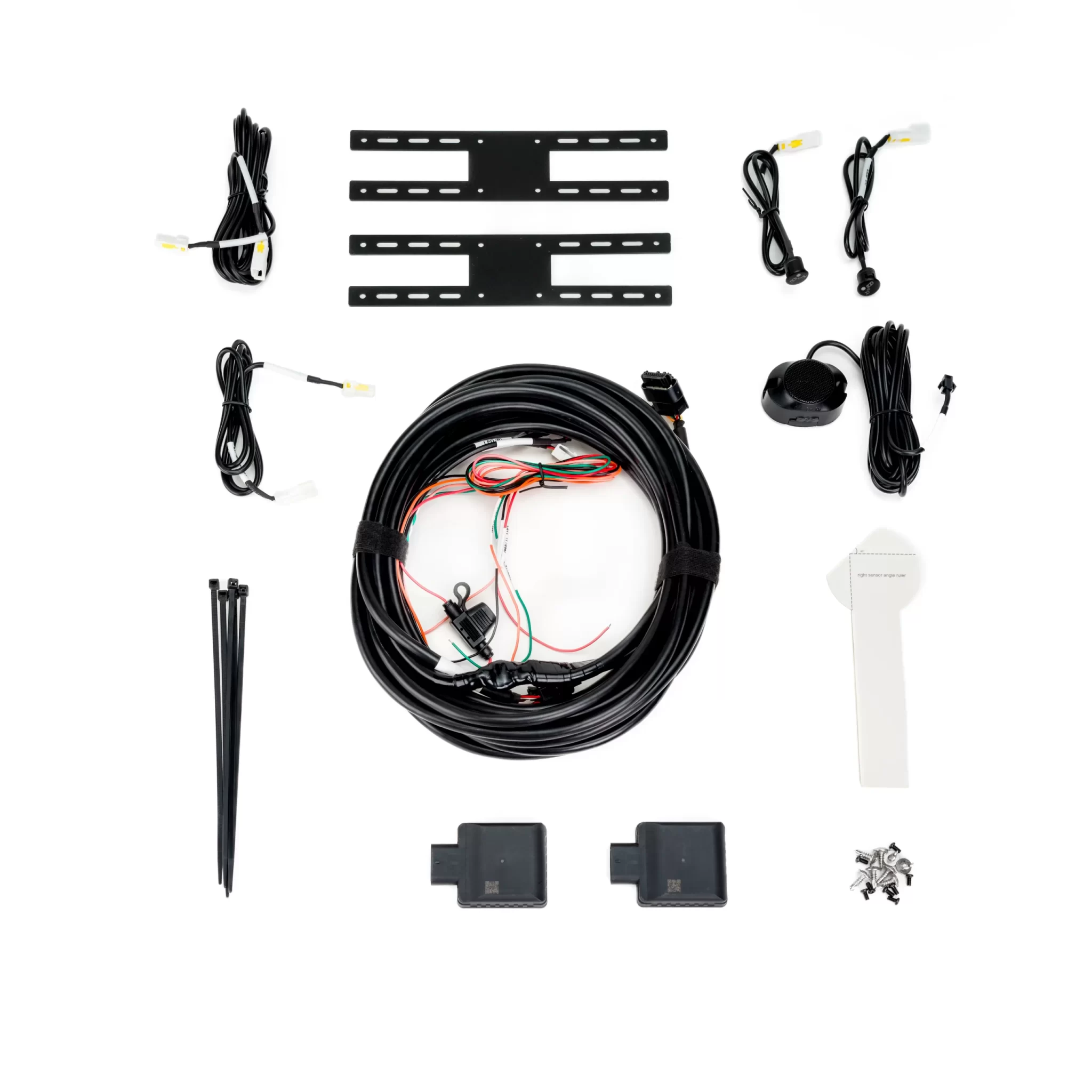

  • Features an all-in-one 21 Foot Main harness w/ 6.5 Foot Rear Sensor Harness

SPECIFICATION

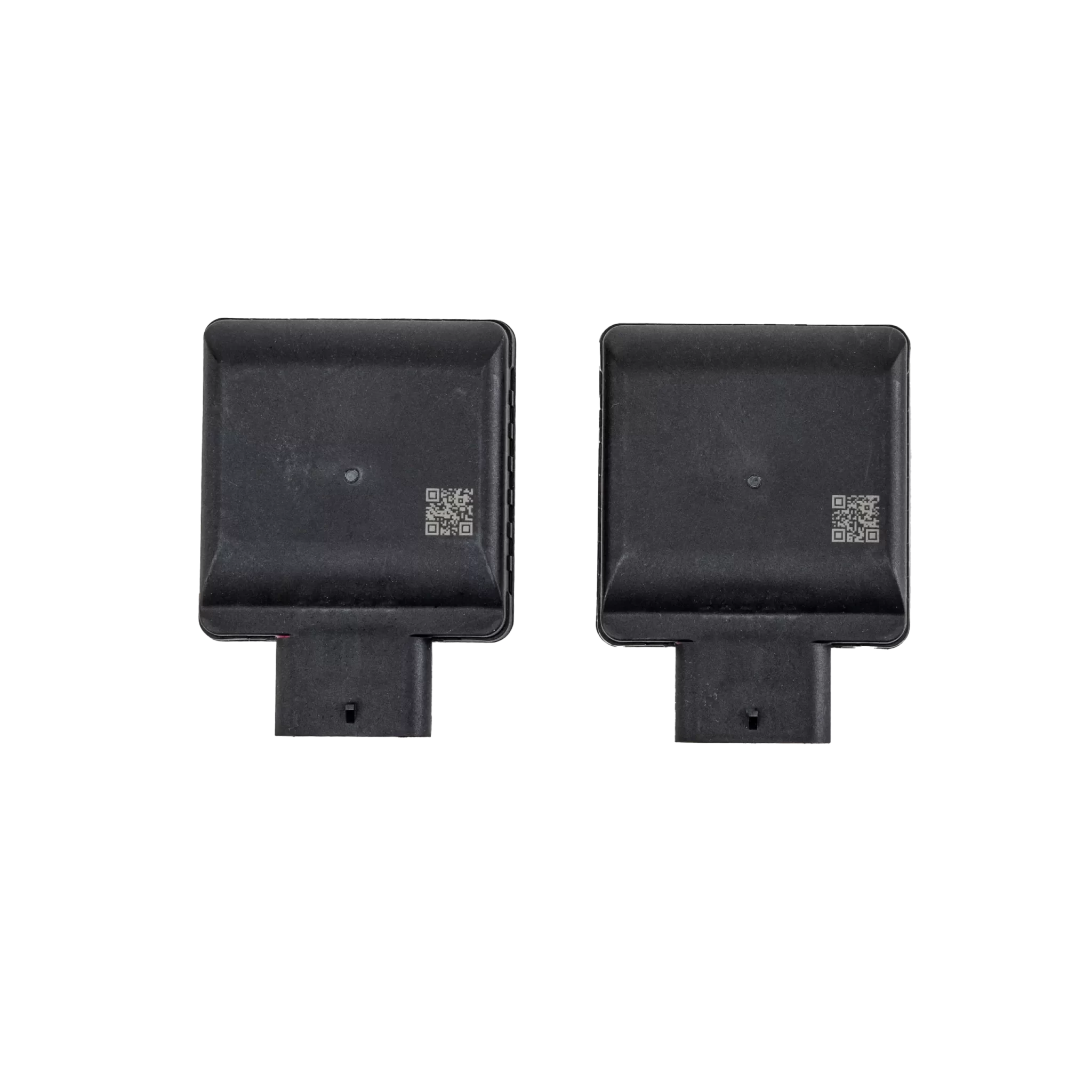

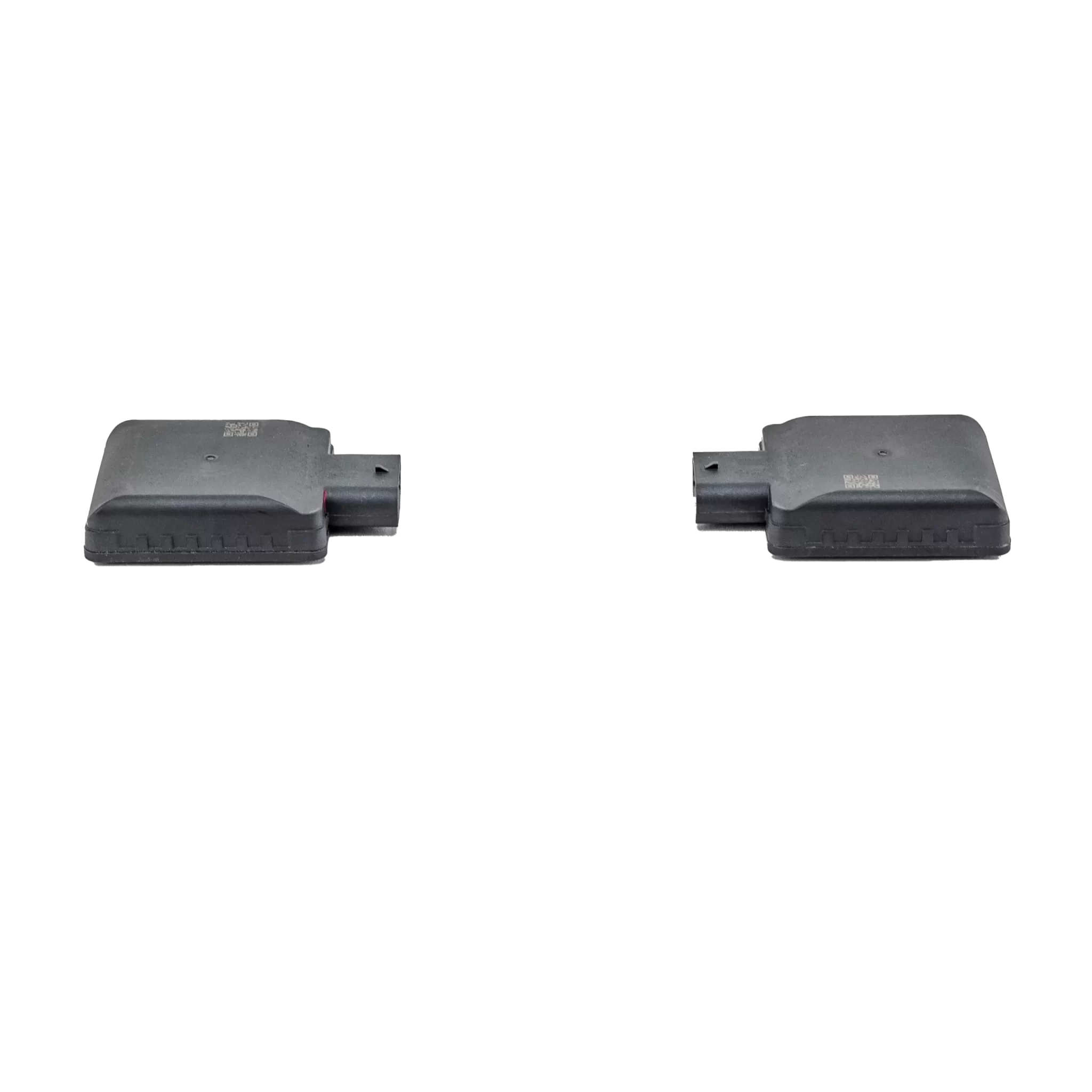

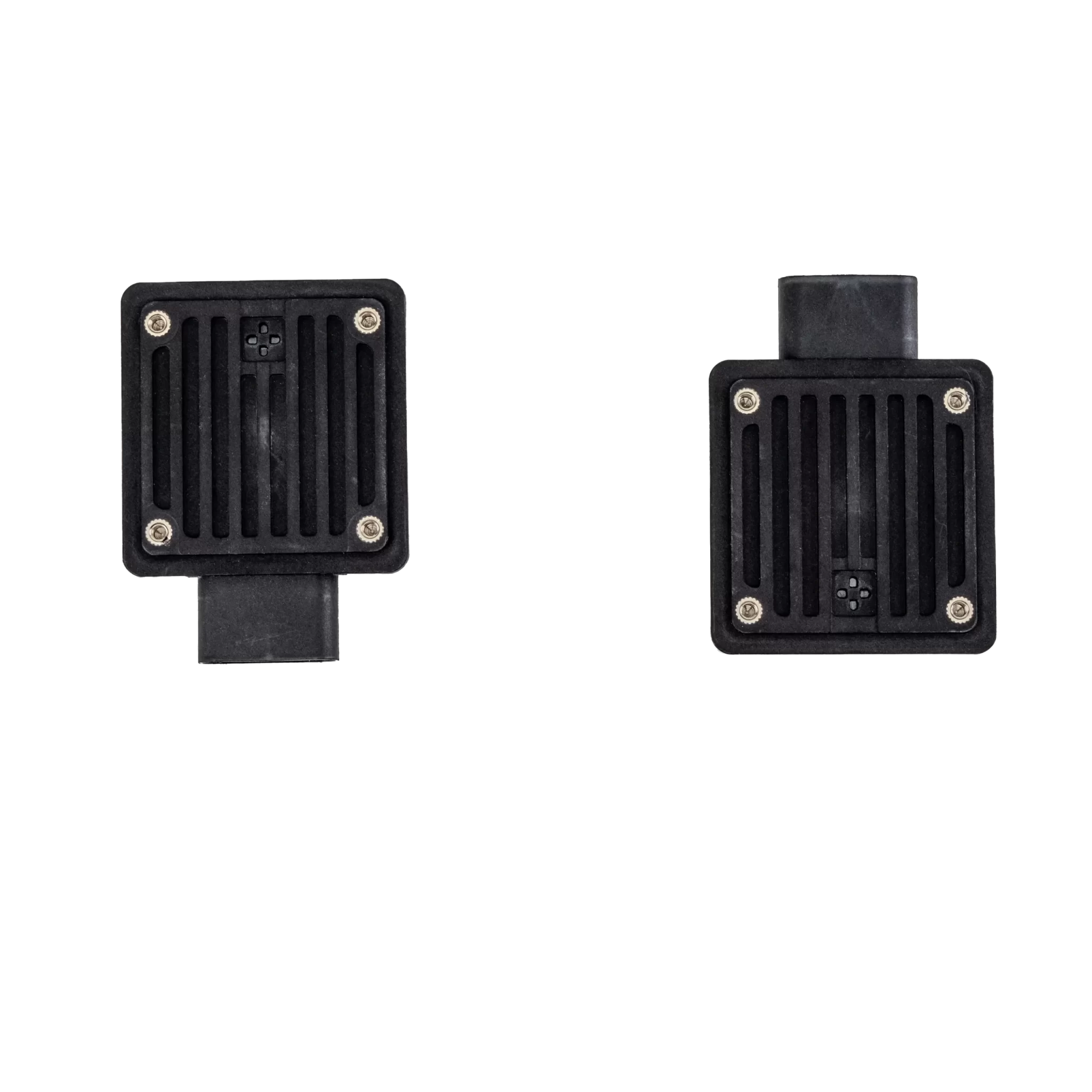

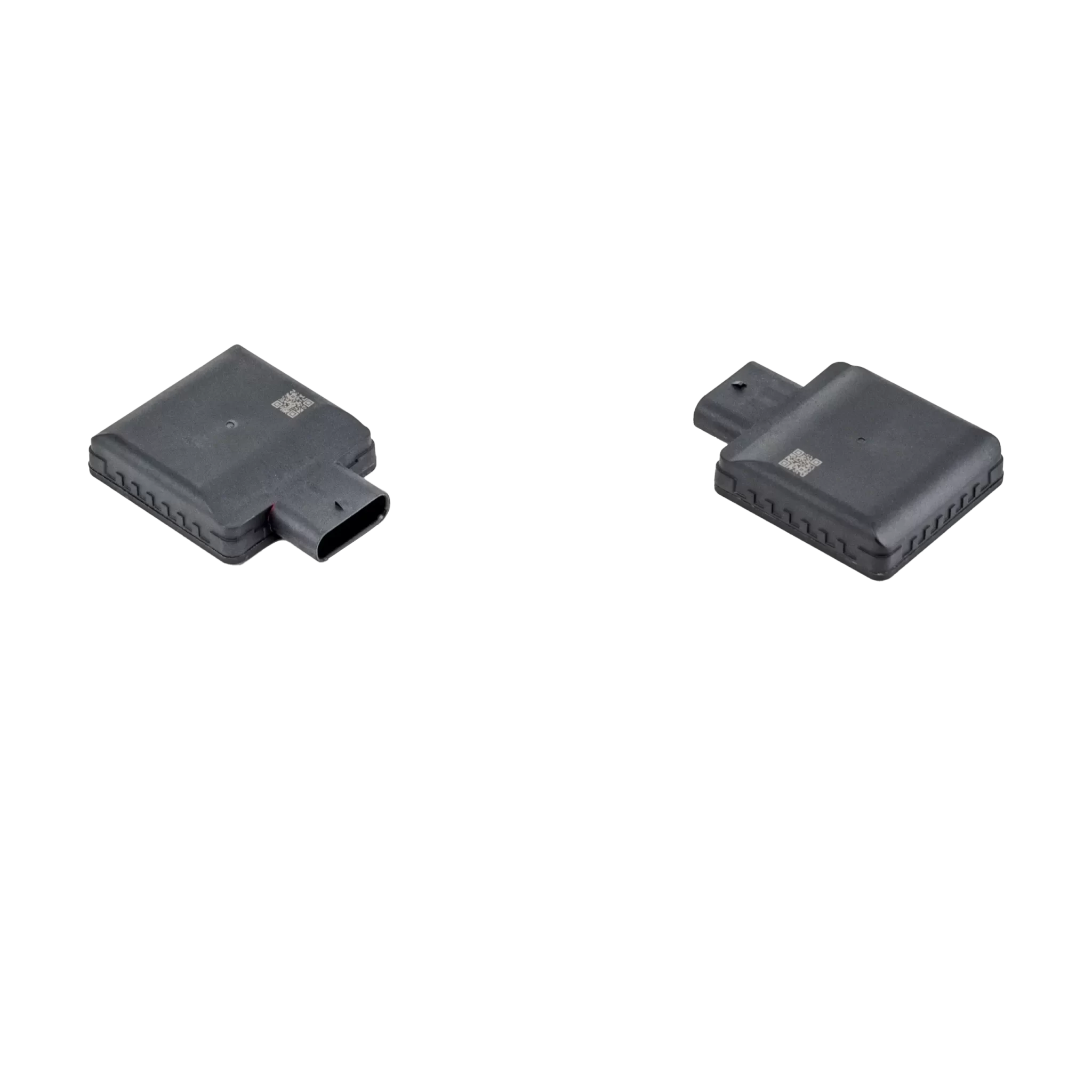

SENSOR

  • Working Voltage 12.0V DC / +24.0V DC
  • Power Consumption 250mA@12V DC
  • Working Temperature -40C ~ 85C
  • Storage Temperature -45C ~ 90C
  • Detection Range 0.15m ~ 120m
  • Waterproof Rating IP69
  • Mounting Location Behind rear fasica
  • Mounting type External mounting bracket, screw
  • Type of detection 76GHz ~ 77GHz
  • Trigger wires Left & Right for audio warning

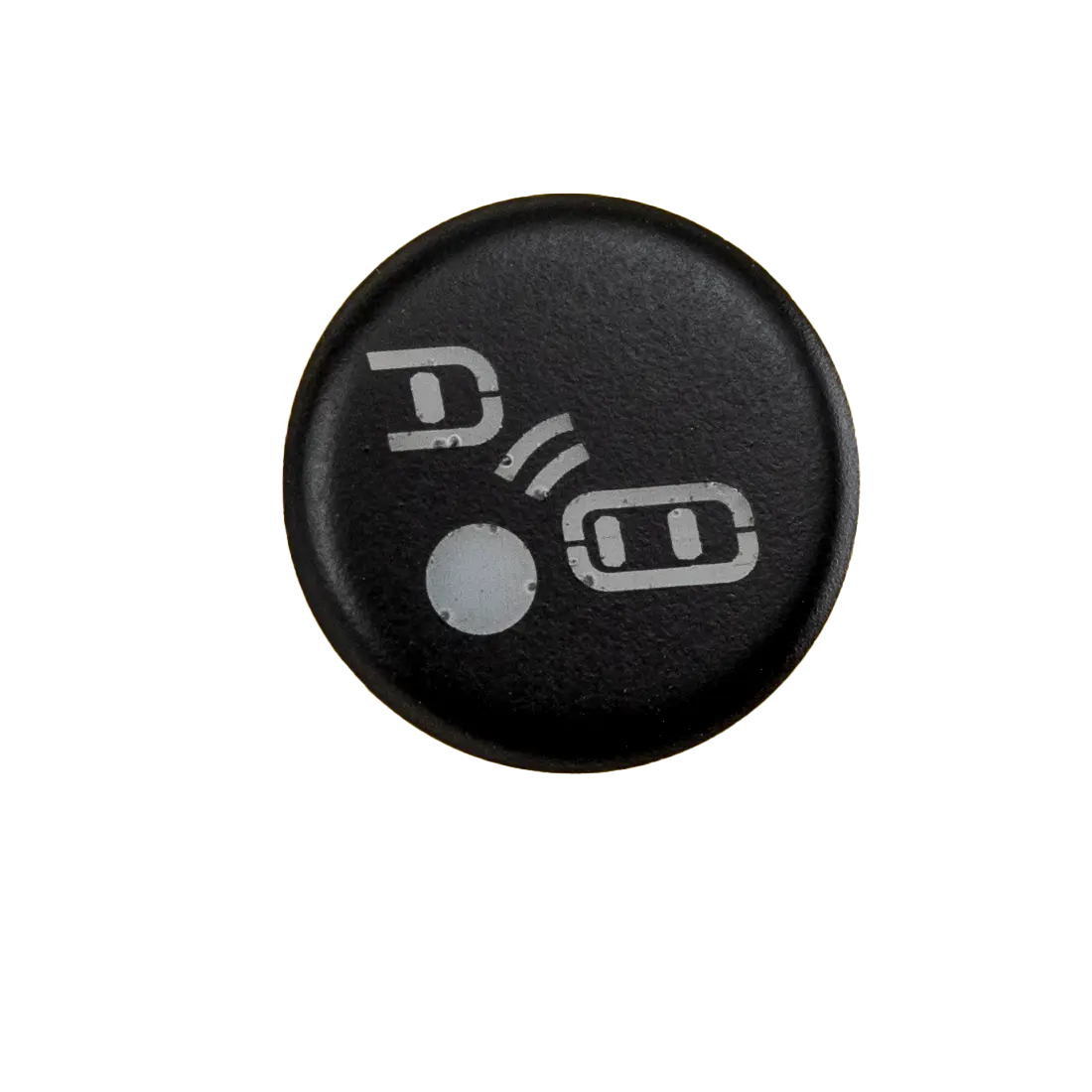

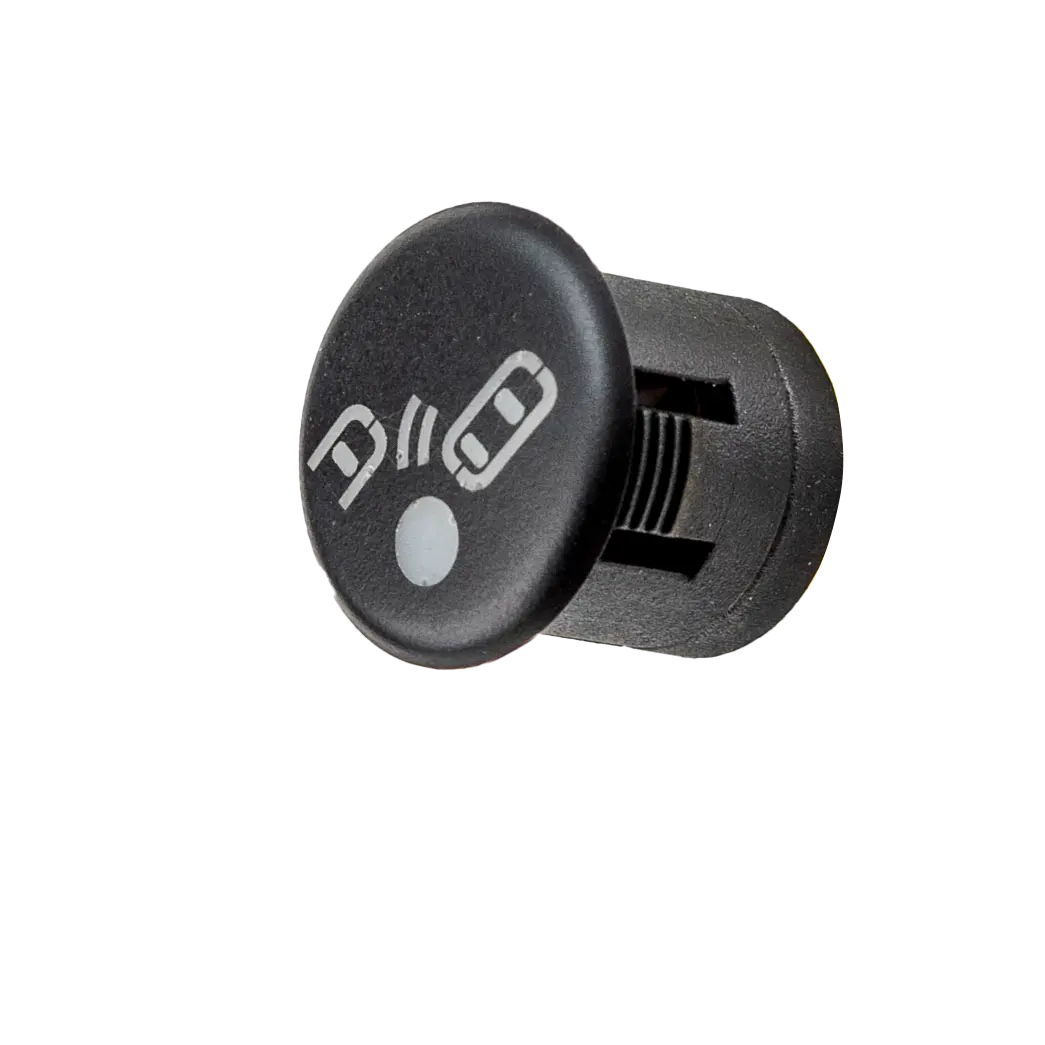

HMI

  • Working Voltage 12.0V DC / +24.0V DC
  • Color of warning light Amber
  • Color of HMI trim Black
  • Mounting type Drill in

BUZZER

  • Mounting 3M tape / screws
  • Buzzer volume >85db
  • Volume adjustable Yes Hi/Med/Lo
  • Soft Rear Fascia
  • Cannot Function Through Metal Bumpers
